HLLR2-Z7/60FT | Miller Honeywell TechLine 60 ft Horizontal Rope Lifeline System (2-User)
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: HLLR2-Z7/60FT
Description

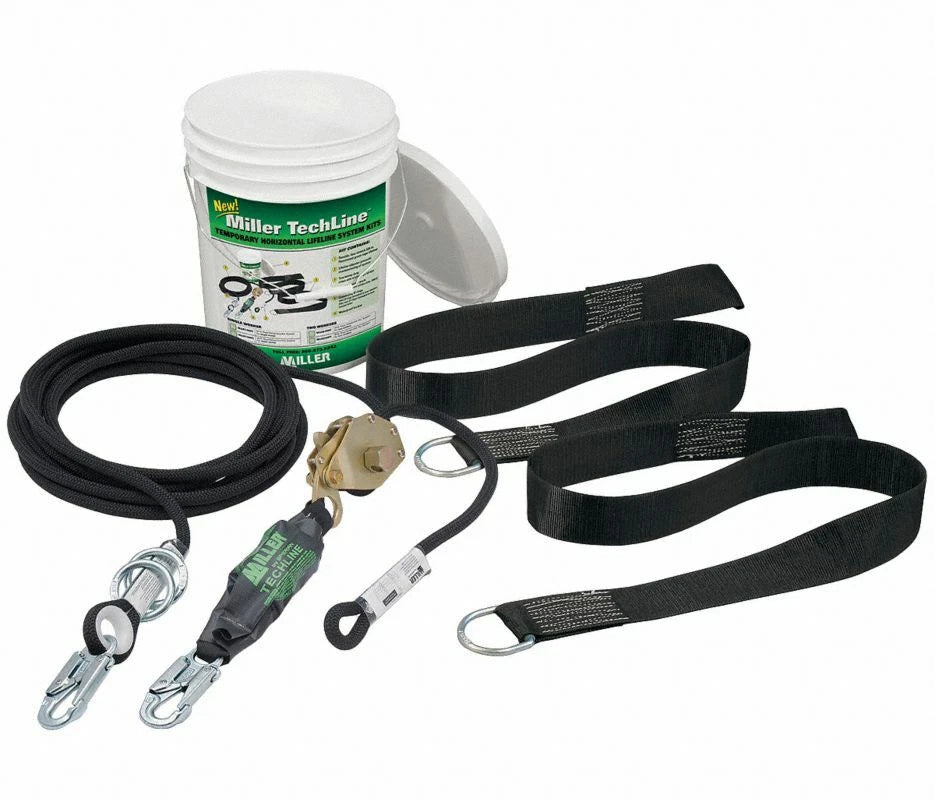

The Miller Honeywell HLLR2-Z7/60FT TechLine is a portable, temporary horizontal lifeline system designed to provide reliable fall protection for up to two workers. With a 60 ft (18.3 m) low-stretch kernmantle rope, integral shock absorber, and adjustable tensioning hardware, it ensures safe mobility in elevated work environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Miller Honeywell |
| Category | Safety Systems |
| Part Number | HLLR2-Z7/60FT |
| Subcategory | SRL/Fall Limiter |
| System Type | Temporary Horizontal Rope Lifeline |
| Length | 60 ft (18.3 m) |
| Rope Diameter | 11/16 in. (17.5 mm) |
| Rope Material | Black static kernmantle, polyester over nylon core |
| Rope Strength | 12,000 lb (53.4 kN) minimum tensile strength |
| Adjuster | Zinc-plated steel tensioner rated 5,000 lb (22.2 kN) |
| Absorber | Integrated in-line shock absorber limits forces to 2,500 lb (11.2 kN) |
| Snap Hooks | Zinc-plated forged alloy steel, proof-tested to 3,600 lb (16 kN), 5,000 lb (22.2 kN) min tensile |
| O-Rings | Forged alloy steel, 5,000 lb (22.2 kN) minimum tensile strength |
| Straps | 3 in. (7.6 cm) polyester straps, 5,000 lb (22.2 kN) minimum tensile strength |
| Maximum Capacity | Two workers at 310 lb (140.6 kg) each |
| Installation | Quick setup with cross-arm anchorage straps |
| Mounting Type | Portable / temporary |
| Sealing | Environmentally stable, abrasion-resistant rope |
| Standards | OSHA 1926.502, ANSI Z359.1, CSA Z259.13 |
| Storage | Waterproof carrying bucket included |
| Weight | 19.50 lbs |
Information About HLLR2-Z7/60FT
The HLLR2-Z7/60FT is part of Honeywell’s Miller TechLine series of temporary horizontal lifeline systems. It uses an environmentally stable 11/16-inch static kernmantle rope rated for a minimum tensile strength of 12,000 lb (53.4 kN). The system includes a zinc-plated steel tensioner rated at 5,000 lb (22.2 kN) and an integrated shock absorber designed to limit arrest forces to 2,500 lb (11.2 kN). All steel components, including snap hooks and O-rings, are zinc-plated forged alloy steel proof-tested to ANSI and OSHA standards. The complete system accommodates up to two workers, each weighing up to 310 lb (140.6 kg), and is supplied in a waterproof carrying bucket for easy transport and storage.
Key Features:
- Dual-User Capacity: Supports two workers at 310 lb (140.6 kg) each with integrated in-line shock absorber.
- High-Strength Rope: 11/16" (17.5 mm) kernmantle rope with 12,000 lb (53.4 kN) tensile strength and polyester over nylon construction.
- Low-Stretch Design: Reduces system deflection for enhanced stability during use.
- In-Line Shock Absorber: Limits arrest forces to 2,500 lb (11.2 kN) for compliance and safety.
- Rugged Hardware: Zinc-plated forged steel snap hooks, adjuster, and O-rings rated at 5,000 lb (22.2 kN).
- Quick Adjustment: Steel tensioner allows simple rope length adjustment to suit jobsite requirements.
- Cross-Arm Anchorage Straps: Provide easy connection to existing structures or anchor points.
- Corrosion Resistance: Zinc-plated components withstand harsh outdoor environments.
- Compact Storage: Supplied in a durable waterproof bucket for easy transport and protection.
- Standards Compliance: Meets OSHA, ANSI Z359, and CSA Z259.13 requirements for fall protection systems.
The HLLR2-Z7/60FT delivers dependable, easy-to-deploy fall protection for construction, maintenance, and industrial applications.
Description
The Miller Honeywell HLLR2-Z7/60FT TechLine is a portable, temporary horizontal lifeline system designed to provide reliable fall protection for up to two workers. With a 60 ft (18.3 m) low-stretch kernmantle rope, integral shock absorber, and adjustable tensioning hardware, it ensures safe mobility in elevated work environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Miller Honeywell |
| Category | Safety Systems |
| Part Number | HLLR2-Z7/60FT |
| Subcategory | SRL/Fall Limiter |
| System Type | Temporary Horizontal Rope Lifeline |
| Length | 60 ft (18.3 m) |
| Rope Diameter | 11/16 in. (17.5 mm) |
| Rope Material | Black static kernmantle, polyester over nylon core |
| Rope Strength | 12,000 lb (53.4 kN) minimum tensile strength |
| Adjuster | Zinc-plated steel tensioner rated 5,000 lb (22.2 kN) |
| Absorber | Integrated in-line shock absorber limits forces to 2,500 lb (11.2 kN) |
| Snap Hooks | Zinc-plated forged alloy steel, proof-tested to 3,600 lb (16 kN), 5,000 lb (22.2 kN) min tensile |
| O-Rings | Forged alloy steel, 5,000 lb (22.2 kN) minimum tensile strength |
| Straps | 3 in. (7.6 cm) polyester straps, 5,000 lb (22.2 kN) minimum tensile strength |
| Maximum Capacity | Two workers at 310 lb (140.6 kg) each |
| Installation | Quick setup with cross-arm anchorage straps |
| Mounting Type | Portable / temporary |
| Sealing | Environmentally stable, abrasion-resistant rope |
| Standards | OSHA 1926.502, ANSI Z359.1, CSA Z259.13 |
| Storage | Waterproof carrying bucket included |
| Weight | 19.50 lbs |
Information About HLLR2-Z7/60FT
The HLLR2-Z7/60FT is part of Honeywell’s Miller TechLine series of temporary horizontal lifeline systems. It uses an environmentally stable 11/16-inch static kernmantle rope rated for a minimum tensile strength of 12,000 lb (53.4 kN). The system includes a zinc-plated steel tensioner rated at 5,000 lb (22.2 kN) and an integrated shock absorber designed to limit arrest forces to 2,500 lb (11.2 kN). All steel components, including snap hooks and O-rings, are zinc-plated forged alloy steel proof-tested to ANSI and OSHA standards. The complete system accommodates up to two workers, each weighing up to 310 lb (140.6 kg), and is supplied in a waterproof carrying bucket for easy transport and storage.
Key Features:
- Dual-User Capacity: Supports two workers at 310 lb (140.6 kg) each with integrated in-line shock absorber.
- High-Strength Rope: 11/16" (17.5 mm) kernmantle rope with 12,000 lb (53.4 kN) tensile strength and polyester over nylon construction.
- Low-Stretch Design: Reduces system deflection for enhanced stability during use.
- In-Line Shock Absorber: Limits arrest forces to 2,500 lb (11.2 kN) for compliance and safety.
- Rugged Hardware: Zinc-plated forged steel snap hooks, adjuster, and O-rings rated at 5,000 lb (22.2 kN).
- Quick Adjustment: Steel tensioner allows simple rope length adjustment to suit jobsite requirements.
- Cross-Arm Anchorage Straps: Provide easy connection to existing structures or anchor points.
- Corrosion Resistance: Zinc-plated components withstand harsh outdoor environments.
- Compact Storage: Supplied in a durable waterproof bucket for easy transport and protection.
- Standards Compliance: Meets OSHA, ANSI Z359, and CSA Z259.13 requirements for fall protection systems.
The HLLR2-Z7/60FT delivers dependable, easy-to-deploy fall protection for construction, maintenance, and industrial applications.
