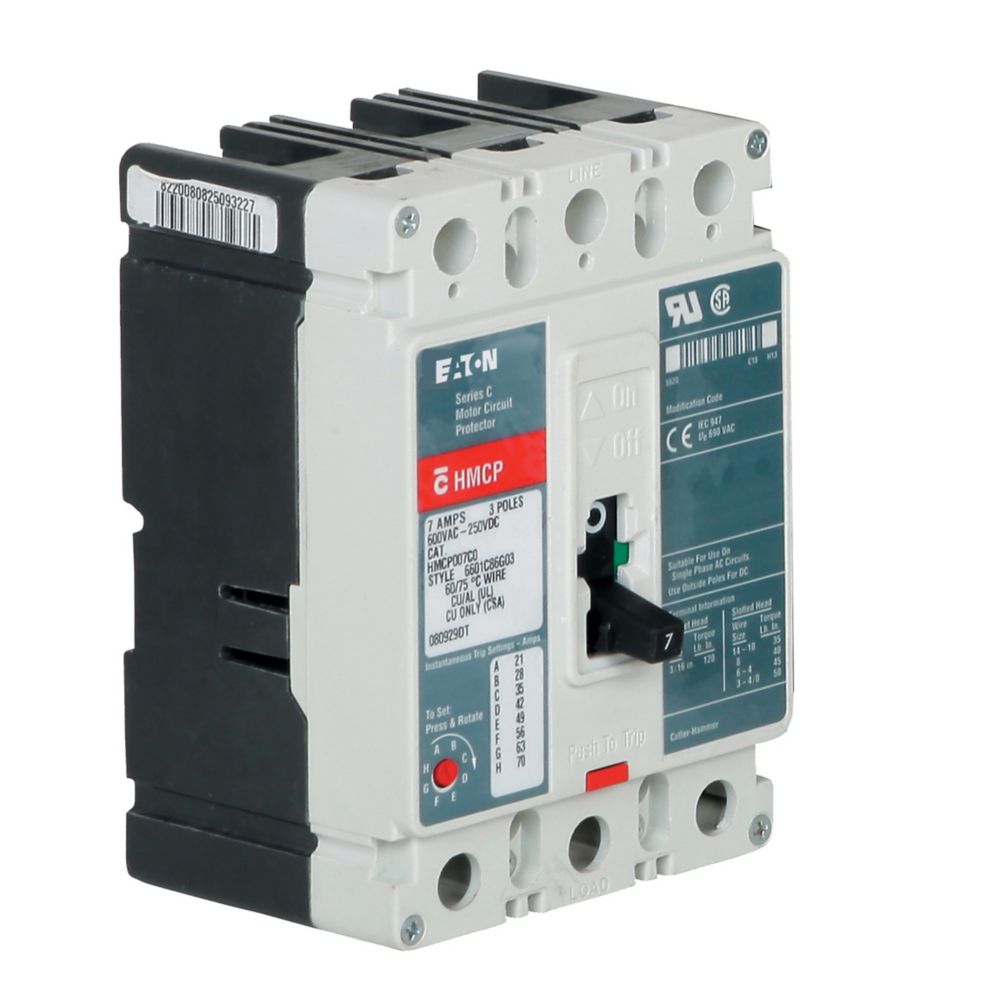

HMCP003A0C | Eaton Molded Case Circuit Breaker Accessory Motor Circuit Protector
- Regular price
- $137.00
- Sale price
- $137.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMCP003A0C
Description
The Eaton HMCP003A0C is a 3A, magnetic-only molded case motor circuit protector designed for instantaneous short-circuit protection in 3-phase systems. Part of the Series C HMCP family, it features a feed-thru design and provides a high interrupting rating of 65 kA at 480V. This F-Frame device is engineered for precise motor protection where overload protection is provided separately.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | HMCP003A0C |
| Subcategory | Molded Case Circuit Breaker |
| Family | Series C |
| Type | HMCP |
| Voltage Rating | 2 V (per data provided) |
| Amperage Rating | 3 A |
| Protection Type | Magnetic Only |
| Trip Function | Instantaneous (I) |
| Frame Type | F Frame |
| Poles | 3 |
| Phase | 3-Phase |
| Interrupting Capacity | 65 kA @ 480 V |
| Connection Style | Feed-Thru |
| Application | Motor Circuit Protector (MCP) |
Information About HMCP003A0C
The HMCP003A0C is a dedicated Motor Circuit Protector from Eaton’s Series C line, designed for applications requiring magnetic-only, instantaneous short-circuit clearing. Its F-Frame molded case construction ensures mechanical strength and reliability in industrial environments. Integration is straightforward thanks to its 3-pole configuration and feed-thru connection style, supporting common three-phase motor installations. With a high 65 kA interrupting capacity at 480V and instantaneous (I) trip functionality, it is well suited for motor circuits where rapid fault isolation is essential.
Key Features:
- Magnetic-only protection: Provides instantaneous short-circuit response without thermal overload elements.
- Instantaneous (I) trip function: Delivers fast clearing of high-fault currents for motor protection.
- Series C HMCP design: Optimized for dedicated motor circuit protection applications.
- Feed-thru connection: Supports straightforward integration into existing motor control systems.
- High interrupting rating: 65 kA at 480V for safe operation in high-fault-level environments.
- F-Frame molded case: Rugged frame construction suitable for demanding industrial use.
- 3-pole configuration: Ensures balanced protection in 3-phase motor circuits.
- Compact motor protection solution: Designed for applications where overload protection is supplied externally.
The HMCP003A0C delivers the reliability and precision required for dedicated motor circuit protection in industrial electrical systems.
