HMCP400X5C | Eaton Molded Case Circuit Breaker
- Regular price
- $1,889.00
- Sale price
- $1,889.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HMCP400X5C
Description

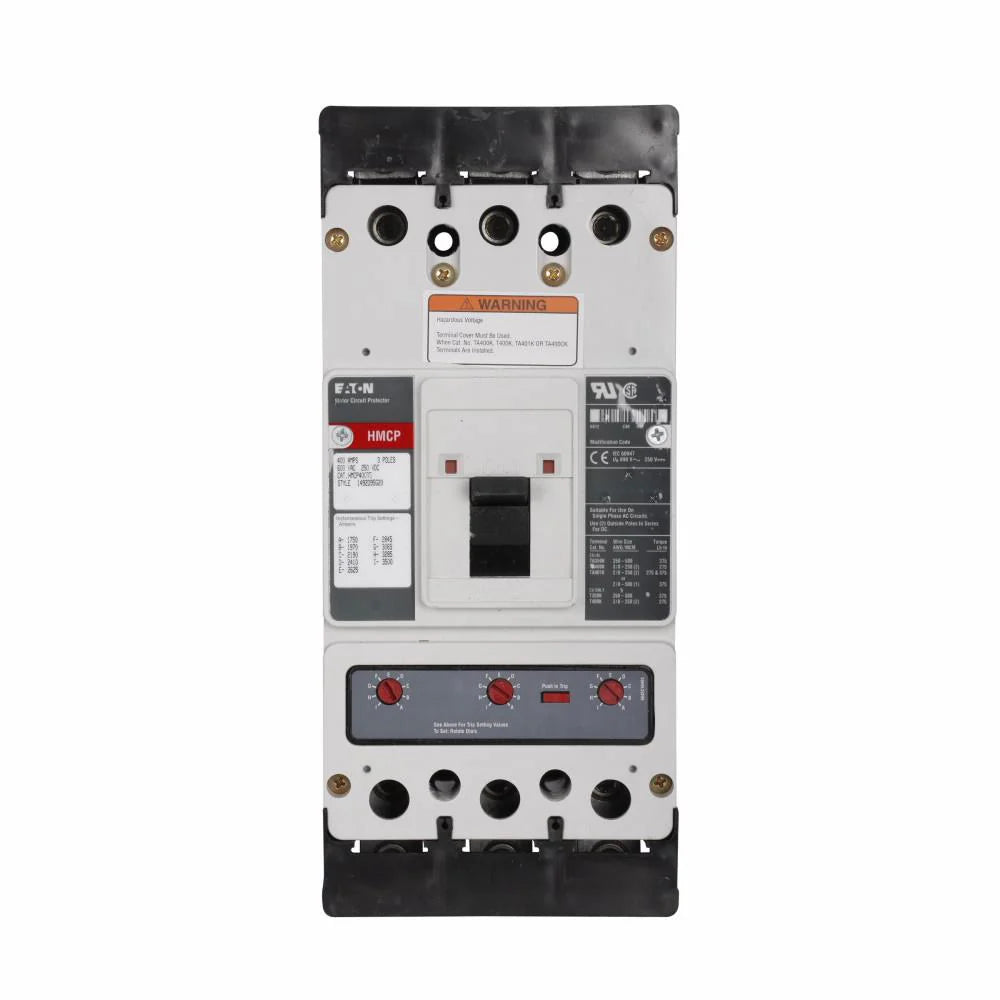

The HMCP400X5C is a molded case circuit breaker manufactured by Cutler Hammer, Eaton, and Westinghouse. It belongs to the Series C and is classified as type HMCP with a K Frame design. This breaker is configured as a three-pole unit, suitable for three-phase systems, with a current rating of 400A and a voltage rating of 600V.
Featuring a 35kA interrupt rating at 480V, it is designed for feed-thru applications. The breaker is equipped with Instantaneous Protection Only (I) and non-aluminum line and load side lug terminals. Its magnetic range is set between 2000A and 4000A, operating solely on magnetic principles
Technical Specifications
|
Brand |
EATON |
|
Type |
Type HMCP |
|
Series |
C Series |
|
Voltage Rating |
600 VAC, 250 VDC |
|
Amperage Rating |
400 A |
|
Frame |
K |
|
Trip Type |
Magnetic |
|
Trip Range |
2000 to 4000 A |
|
Number Of Poles |
3 |
|
Connection Type |
Line/Load Lug |
|
Enclosure Type |
NEMA 5 |
|
Dimensions |
4.1 in L x 5.5 in W x 10.13 in H |
Information About HMCP400X5C
The HMCP400X5C is a molded case circuit breaker manufactured by Cutler Hammer, Eaton, and Westinghouse, belonging to the Series C lineup. It falls under the type HMCP with a K Frame designation. This circuit breaker is configured as a 3P (3-phase) device with a current rating of 400A and a voltage rating of 600V. Its interrupting capacity is specified at 35kA@480V.
Designed for feed-thru applications, the HMCP400X5C comes complete with I - Instantaneous Protection Only functionality. It is equipped with non-aluminum line and load side lug terminals, ensuring secure electrical connections. The magnetic range of this circuit breaker spans from 2000 to 4000A, with a focus solely on magnetic protection.
As a member of the molded case circuit breaker category, the HMCP400X5C provides robust protection against overcurrent situations. It is engineered to safeguard electrical systems against various faults, ensuring the safety and reliability of the connected equipment.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
