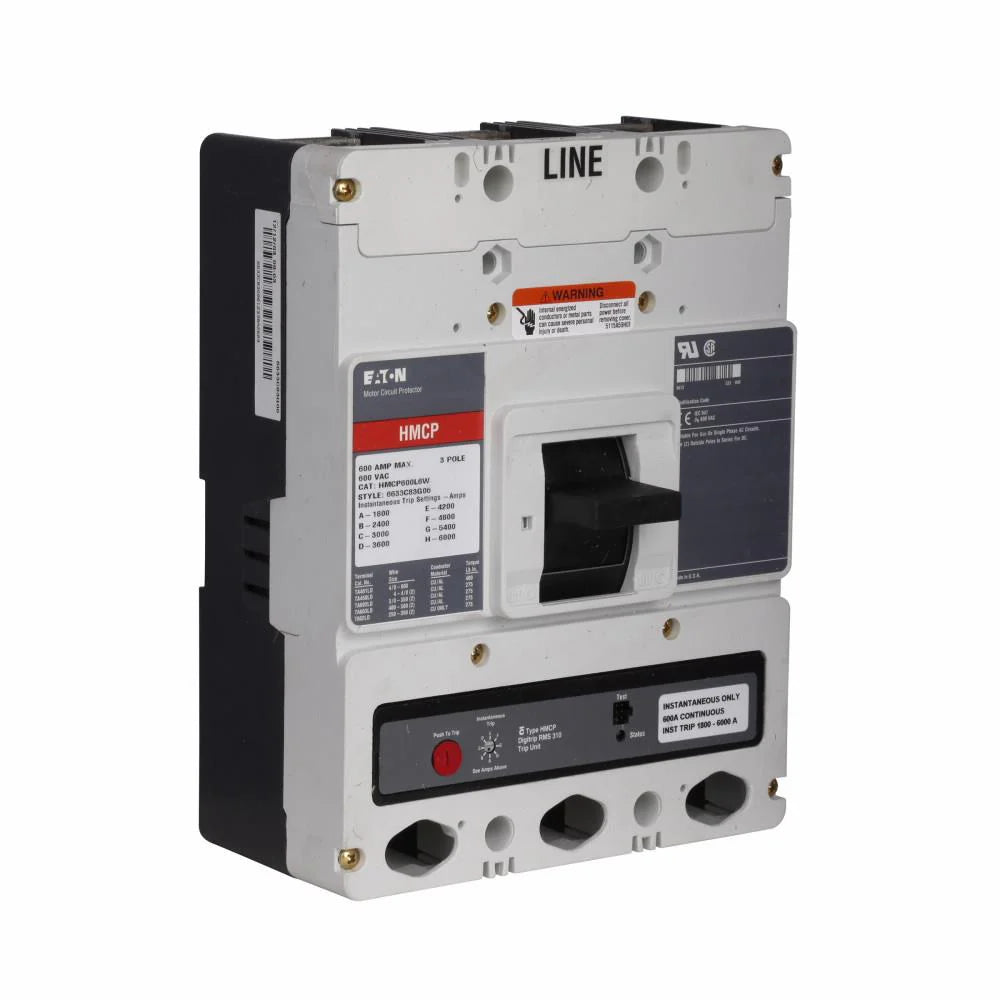

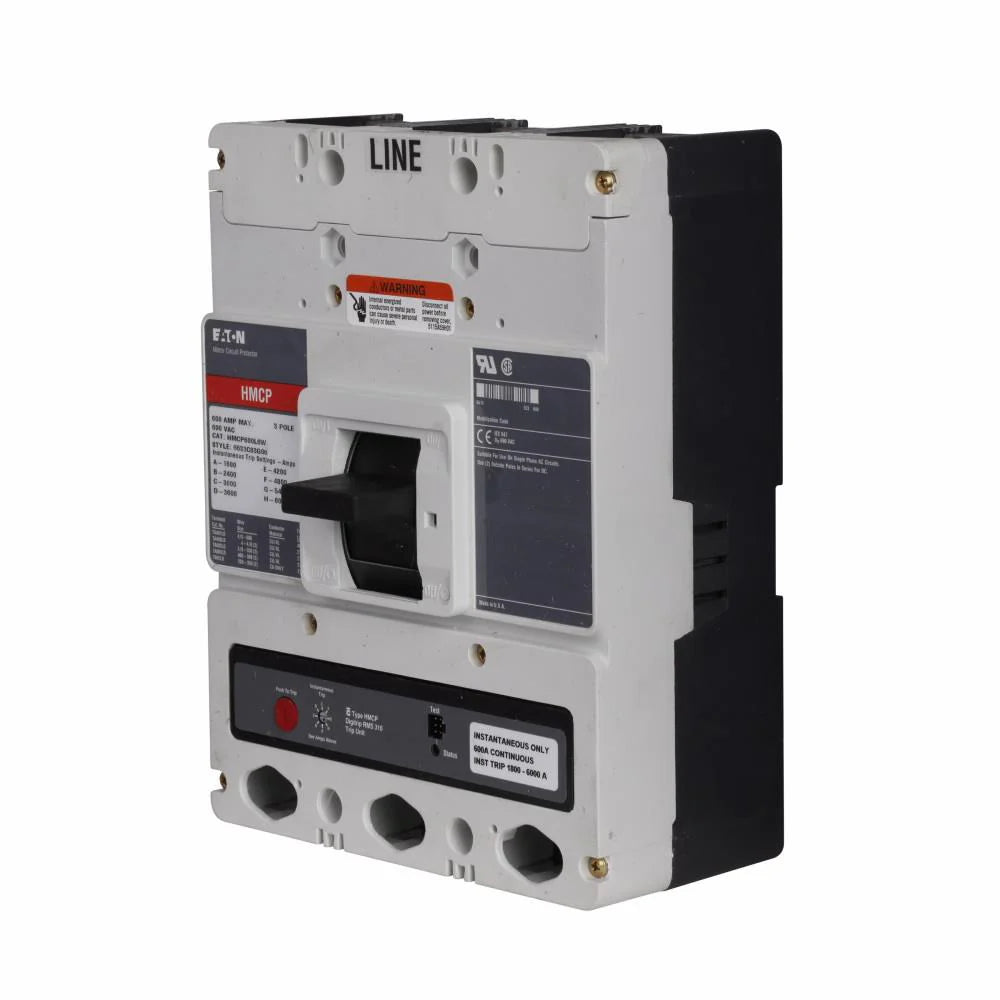

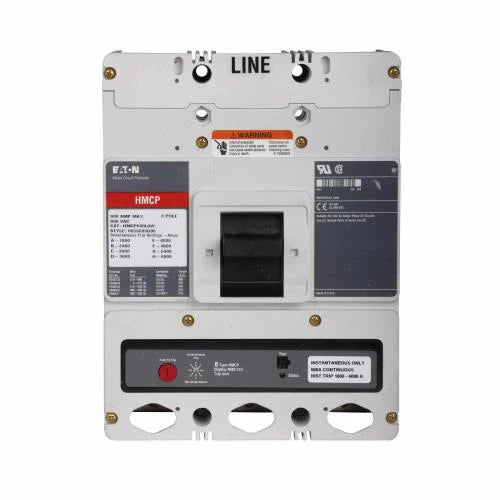

HMCP600L6W | Eaton Molded Case Circuit Breaker Accessory Motor Protection
- Regular price
- $3,894.00
- Sale price
- $3,894.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMCP600L6W
Description
The HMCP600L6W is an Eaton molded case circuit breaker accessory designed specifically for motor protection applications. It functions as a motor circuit protector with a current rating of 600 A, featuring a three-pole configuration suitable for industrial settings. The frame size is designated as J-K, supporting current ranges from 1800 to 6000 A.
Technical Specifications
|
Product Name |
Eaton molded case circuit breaker accessory motor protection |
|
Catalog Number |
HMCP600L6W |
|
UPC |
786679281369 |
|
Product Length/Depth |
4.06 in |
|
Product Height |
10.75 in |
|
Product Width |
8.25 in |
|
Product Weight |
20 lb |
|
Type |
Motor circuit protector |
|
Amperage Rating |
600 A |
|
Frame Size |
Frame J-K |
|
Magnetic Trip Range |
1800-6000 A |
|
Voltage - Max |
600 V, 250 Vdc |
|
Series |
Series C |
|
Terminals |
Without |
|
Number of Terminals |
Without terminals |
|
Number of Poles |
Three-pole |
Information About HMCP600L6W
The HMCP600L6W, manufactured by Eaton, serves as an accessory for molded case circuit breakers specifically designed for motor protection applications. Classified as a motor circuit protector, it operates with a current rating of 600 A and features a three-pole configuration. The frame size is categorized as J-K, accommodating magnetic trip ranges spanning from 1800 to 6000 A, ensuring robust protection for motors against overcurrent conditions.
This accessory is engineered to operate at a maximum voltage of 600 V AC and 250 V DC, adhering to Series C standards within industrial electrical environments. It is designed without terminals, focusing solely on providing essential motor protection capabilities without additional connectivity features.
Physically, the HMCP600L6W possesses dimensions of 4.06 inches in length/depth, 10.75 inches in height, and 8.25 inches in width, with a weight of 20 pounds. These specifications contribute to its suitability for integration into standard electrical panel configurations, facilitating efficient installation and maintenance procedures in industrial settings.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
