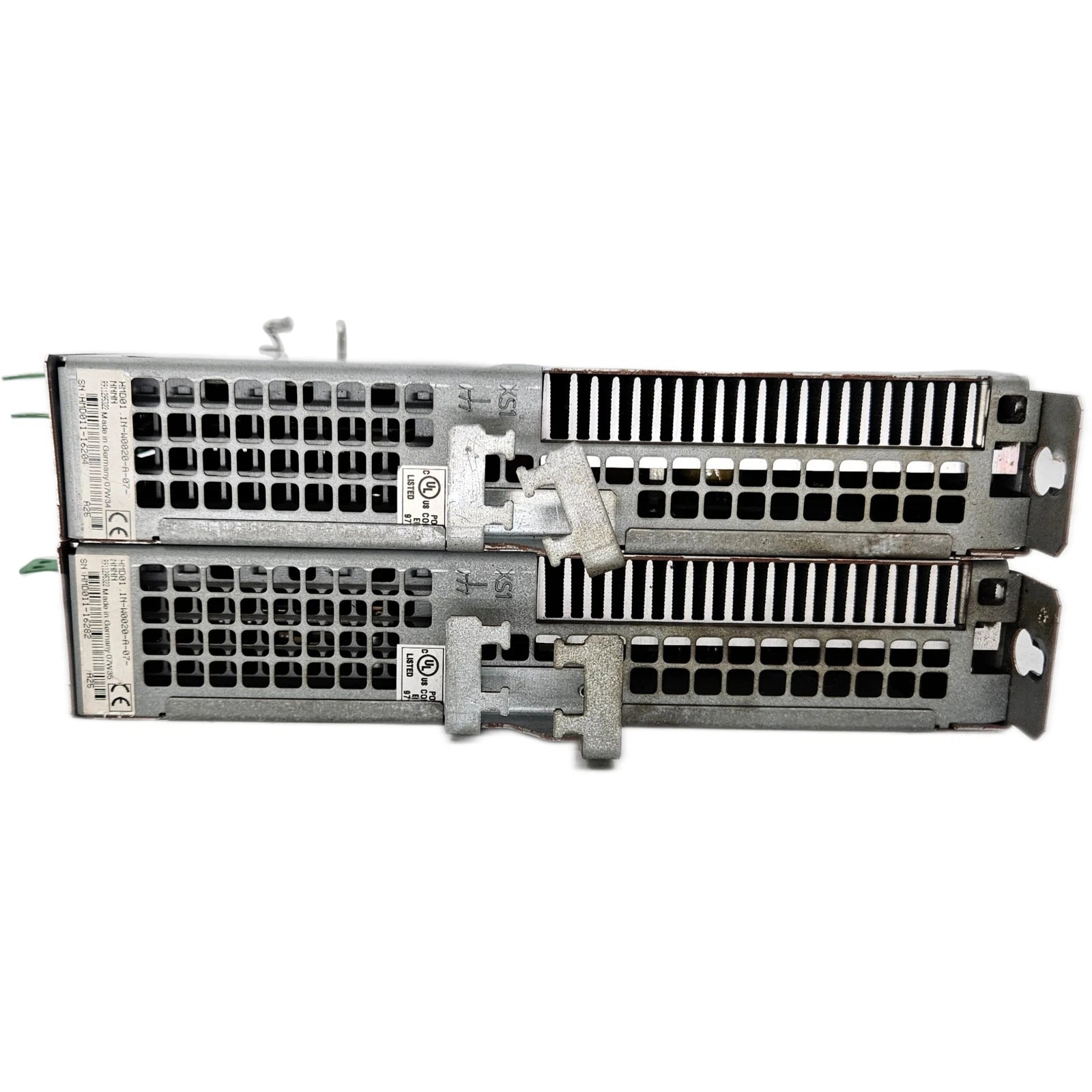

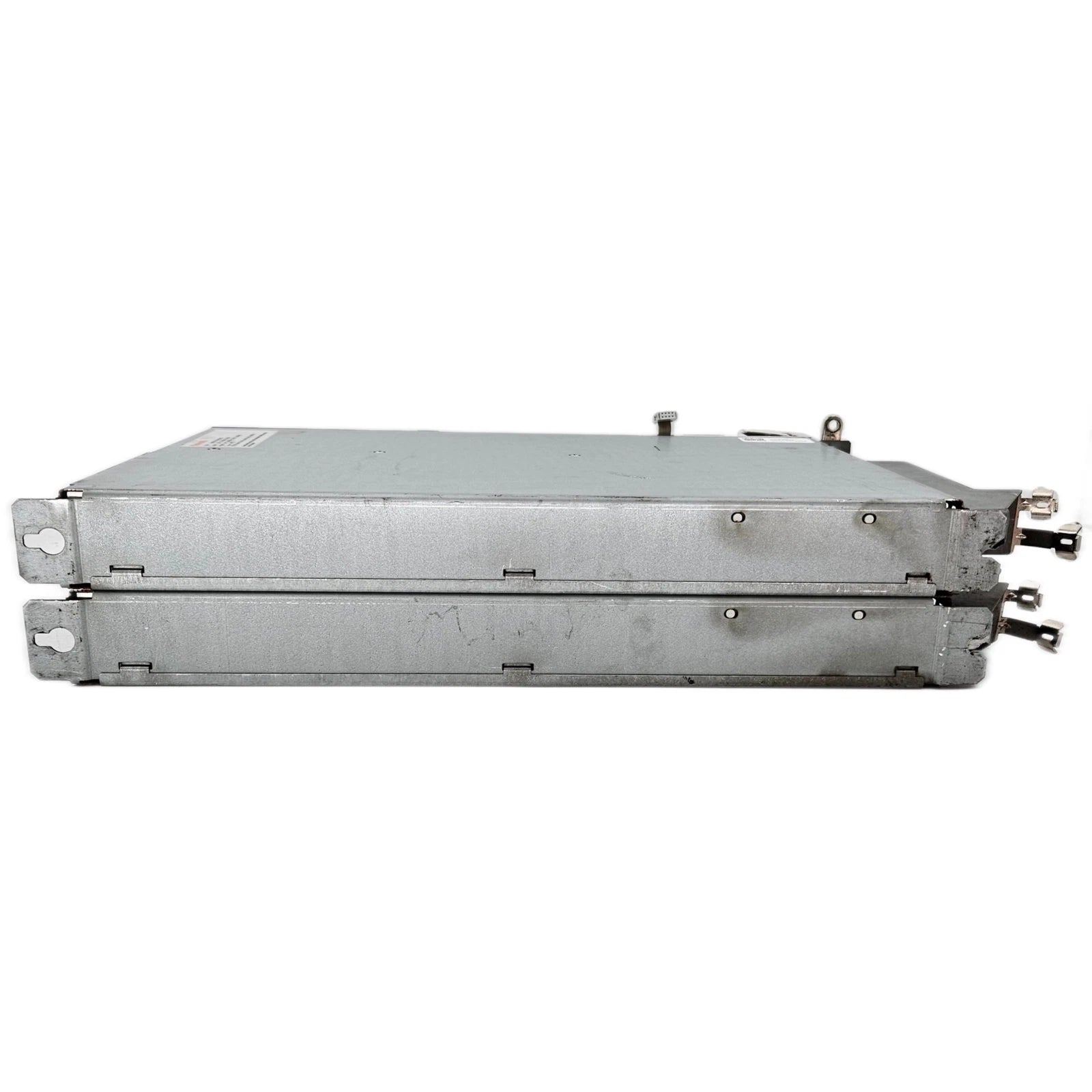

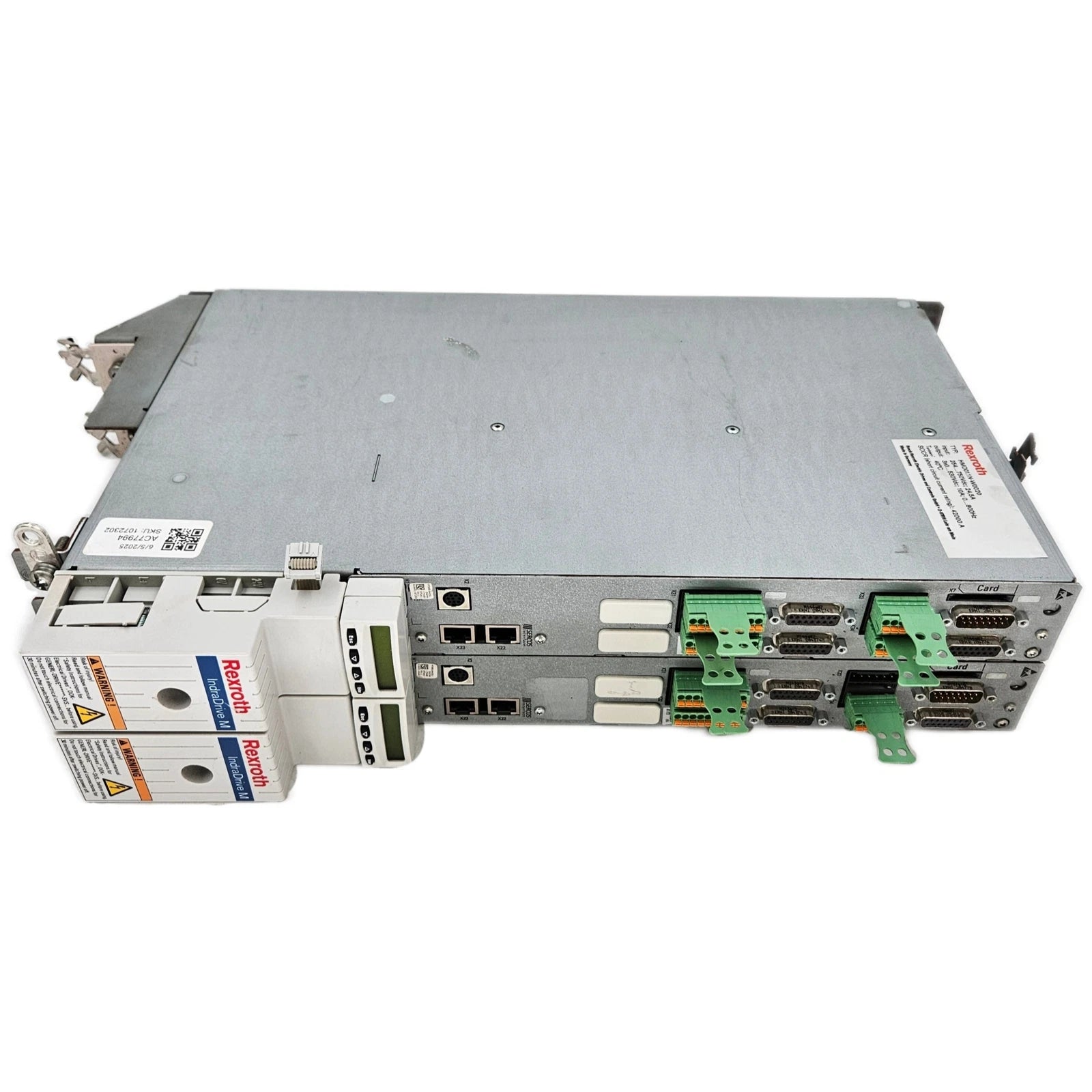

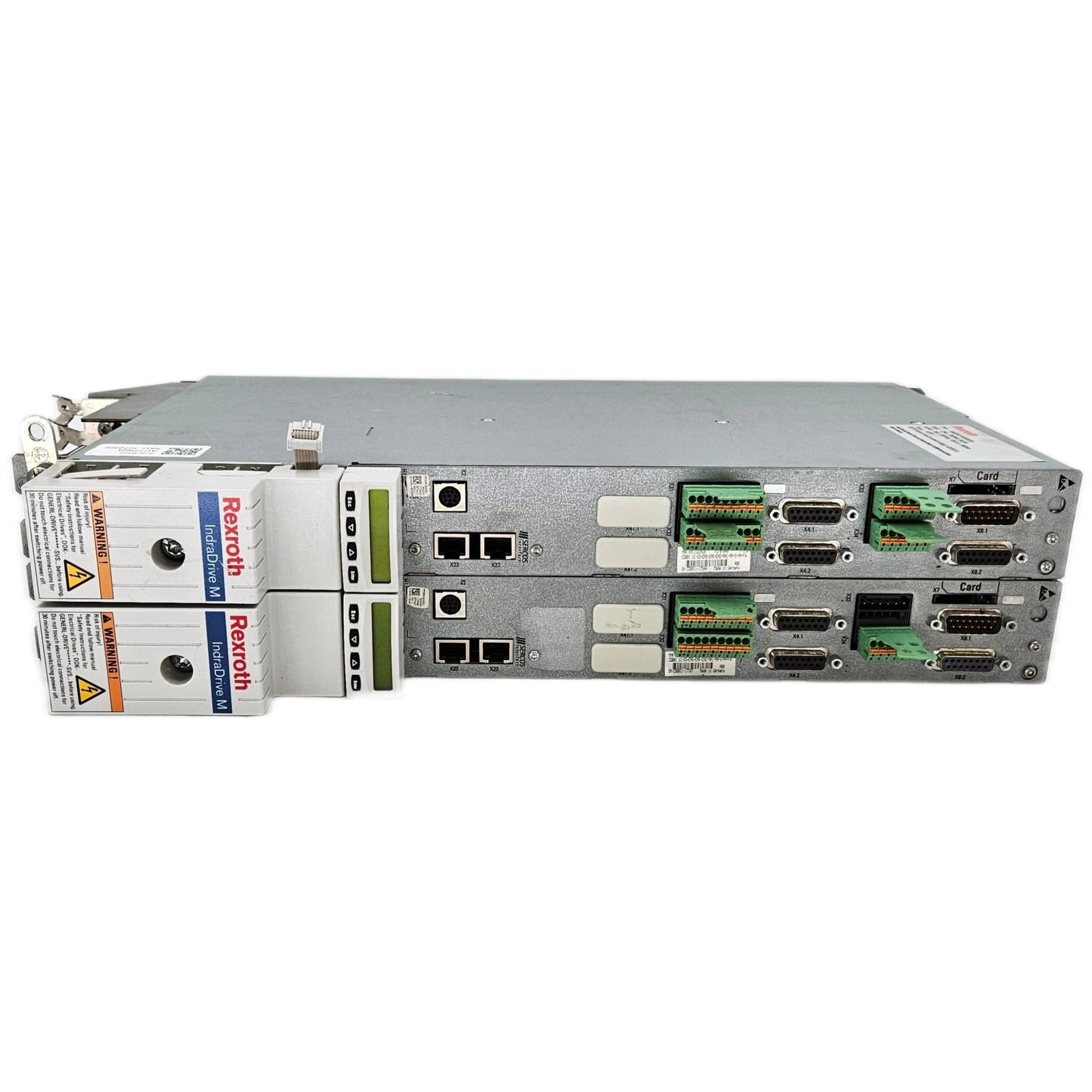

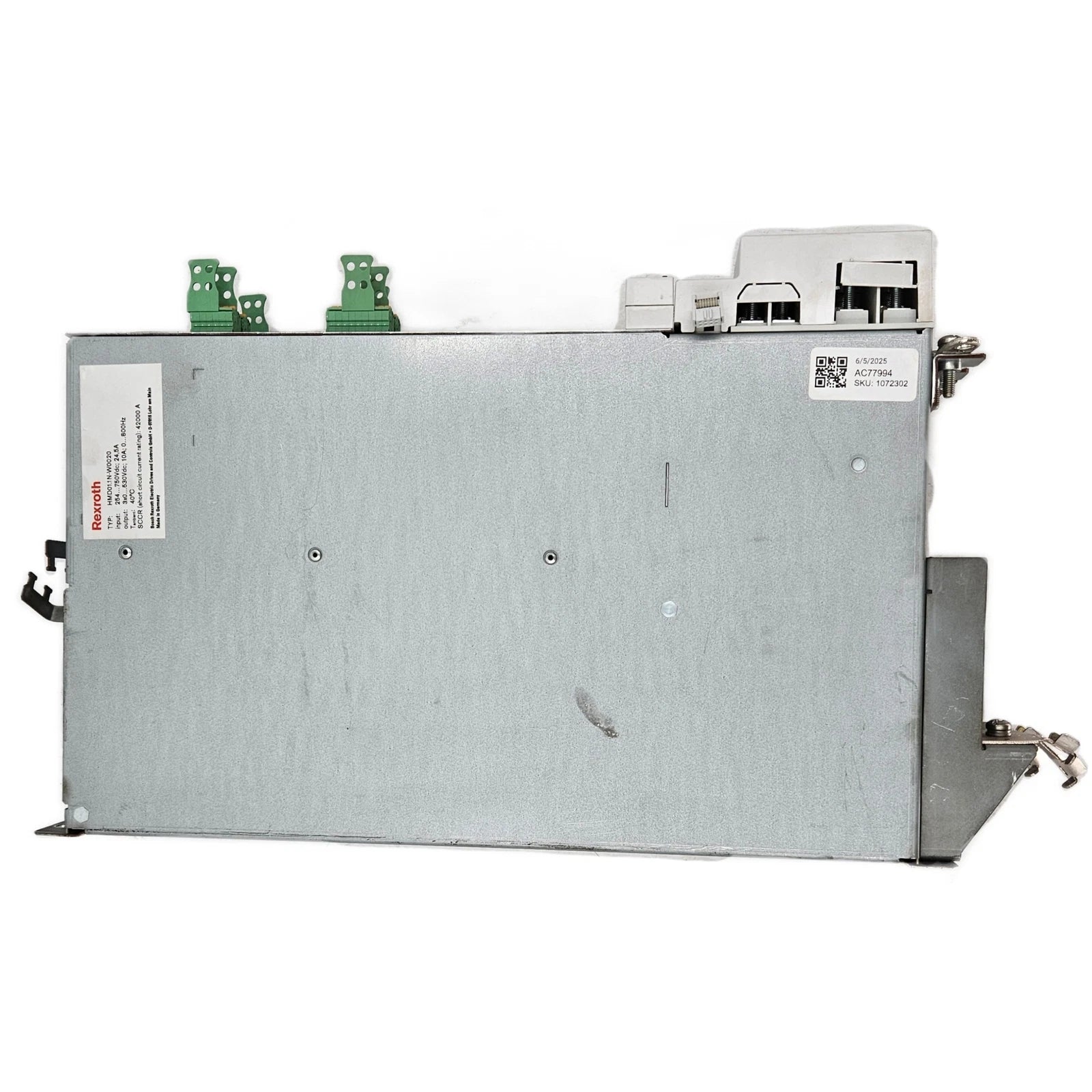

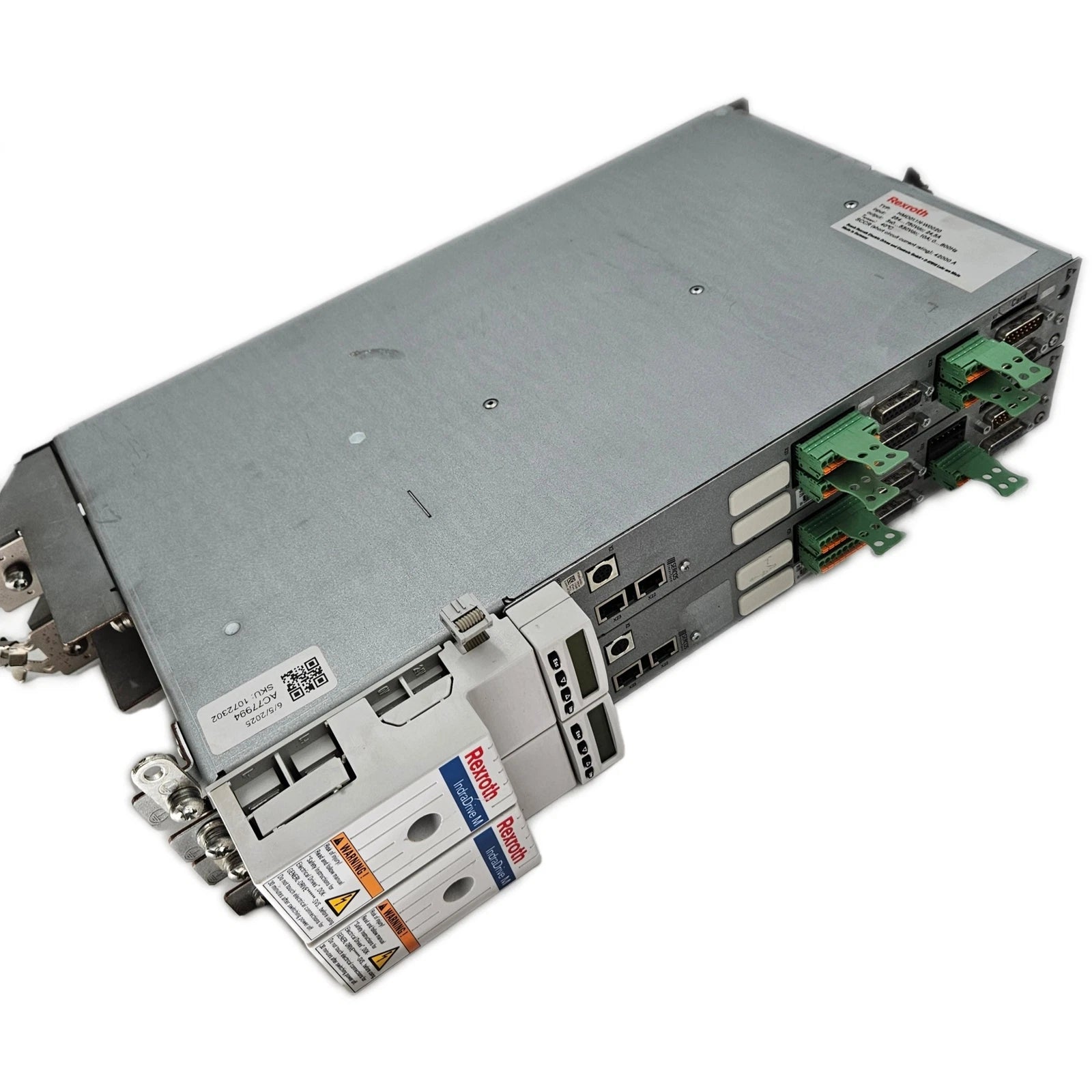

HMD01.1N-W0020 | Bosch Rexroth IndraDrive Double-Axis Inverter 4 kW
- Regular price
- $3,927.00
- Sale price
- $3,927.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMD01.1N-W0020
Description
The Bosch Rexroth HMD01.1N-W0020 is a double-axis inverter designed for precise control of two servo motors within a compact IndraDrive platform. It provides controlled three-phase output with flexible frequency ranges to support dynamic industrial motion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | HMD01.1N-W0020 |
| Subcategory | Double-Axis Inverters |
| Product Type | Double-Axis Inverter |
| Drive Platform | IndraDrive |
| Cooling Type | Internal Air Cooling |
| Maximum Current | 20 A |
| Continuous Current | 10.0 A |
| Output Voltage | 0–530 V AC |
| Output Frequency (4 kHz) | 0–400 Hz |
| Output Frequency (8 kHz) | 0–800 Hz |
| Typical Motor Rating | 4 kW |
| EMC Environment | EN 61800-3 |
| International Protection Code | IP20 |
| Width | 50 mm |
| Height | 440 mm |
| Depth | 309 mm |
| Weight | 6.2 kg |
Information About HMD01.1N-W0020
The HMD01.1N-W0020 is part of the Bosch Rexroth IndraDrive HMD series, which is engineered for synchronized dual-axis motion control in industrial automation. It features internal air cooling to maintain stable operation under continuous load conditions. The drive complies with EN 61800-3 EMC standards, ensuring compatibility with industrial electromagnetic environments. Its compact width and high power density make it suitable for space-optimized control cabinet installations in machine tools and automated production systems.
Key Features:
- Double-Axis IndraDrive Design: Controls two servo motor axes within a single inverter unit.
- Internal Air Cooling System: Integrated cooling supports reliable continuous operation.
- Flexible Output Frequency Range: Supports up to 400 Hz at 4 kHz and 800 Hz at 8 kHz switching frequency.
- High Output Voltage Capability: Delivers up to 530 V AC three-phase motor output.
- Compact Cabinet Footprint: Narrow 50 mm width optimized for dense panel layouts.
- EMC-Compliant Design: Meets EN 61800-3 standards for industrial environments.
- Typical Motor Power Support: Suitable for servo motors up to approximately 4 kW.
The HMD01.1N-W0020 delivers the reliability and precision required for synchronized multi-axis servo control in industrial automation systems.
