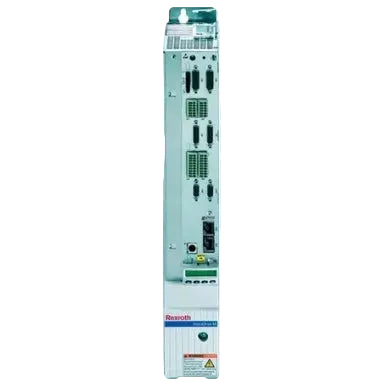

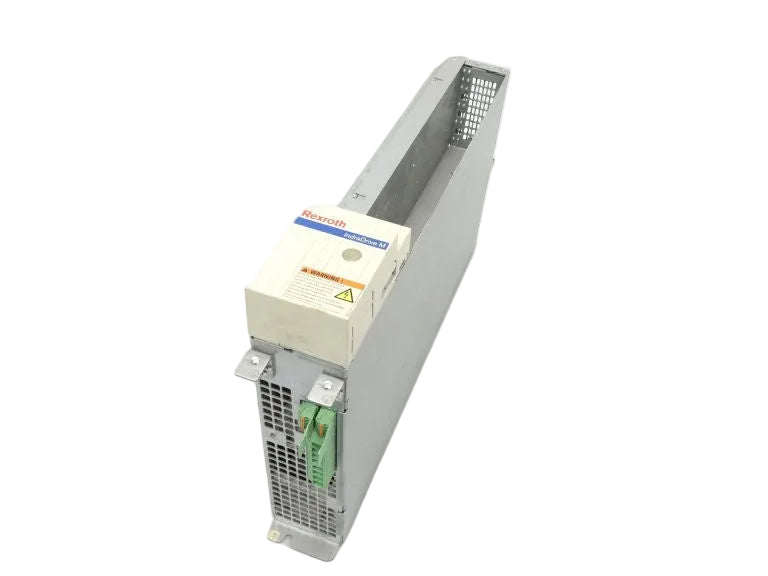

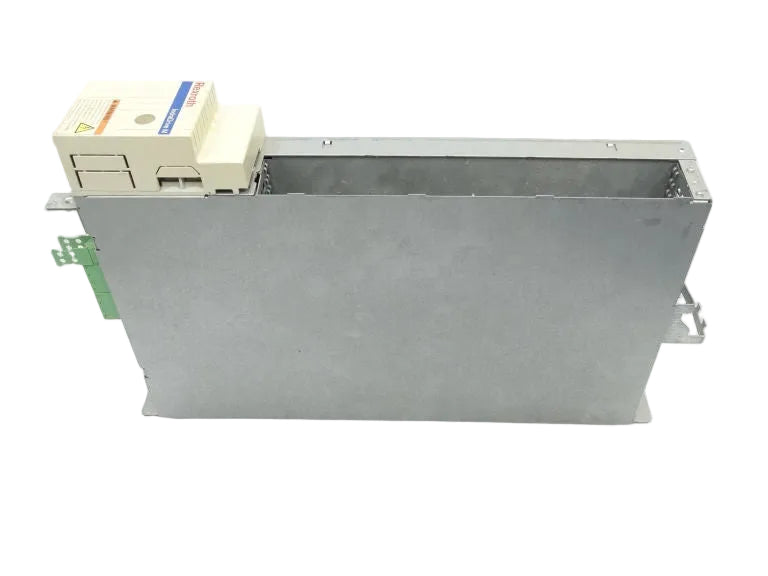

HMD01.1N-W0036-A-07-NNNN | Bosch Rexroth IndraDrive Double-Axis Inverter Control Drive
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMD01.1N-W0036-A-07-NNNN
Description
The Bosch Rexroth HMD01.1N-W0036-A-07-NNNN inverter control drive is a double-axis IndraDrive controller designed for precise control of two servo motors within a single compact unit. It supports high-voltage DC bus operation and delivers controlled three-phase AC output for demanding motion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | HMD01.1N-W0036-A-07-NNNN |
| Subcategory | Drive Controllers |
| Product Type | HMD Double Axis Drive Controller |
| Drive Platform | IndraDrive |
| Design Version | 1 |
| Line Version | 1 |
| Nominal DC Bus Voltage | 700 VDC |
| DC Bus Input Range | 254–750 VDC |
| Rated Input Current | 49 A |
| Output Voltage | 3-Phase, 0–530 VAC |
| Output Current | 20 A |
| Effective Peak Current | 36 A |
| Output Frequency Range | 0–800 Hz |
| Control Supply Voltage | 24 VDC |
| Cooling Method | Internal Air with Integrated Blower |
| Power Consumption | 11 |
| IP Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Maximum Ambient Temperature | 45 °C |
| Width | 75 mm |
| Weight | 7.5 kg |
Information About HMD01.1N-W0036-A-07-NNNN
The HMD01.1N-W0036-A-07-NNNN is part of the Bosch Rexroth IndraDrive HMD series, engineered specifically for double-axis motion control in advanced automation environments. It operates from a nominal 700 V DC bus and integrates internal air cooling with an onboard blower to maintain thermal stability under load. The controller is designed for applications such as machine tools, packaging systems, and production machinery where coordinated axis control is essential. Its IP20-rated housing and compact width make it suitable for dense control cabinet installations.
Key Features:
- IndraDrive HMD Double-Axis Design: Controls two servo axes within a single drive unit.
- High-Voltage DC Bus Operation: Supports 254–750 VDC input with a nominal rating of 700 VDC.
- Three-Phase AC Motor Output: Provides up to 20 A output current per axis with adjustable voltage and frequency.
- High Dynamic Performance: Supports peak current up to 36 A for rapid acceleration and load changes.
- Integrated Air Cooling System: Internal blower ensures efficient heat dissipation during continuous operation.
- Wide Output Frequency Range: Adjustable output from 0 to 800 Hz for precise speed control.
- Compact Cabinet Form Factor: Narrow 75 mm width optimized for space-efficient control panels.
The HMD01.1N-W0036-A-07-NNNN delivers the reliability and precision required for synchronized multi-axis servo control in industrial motion and automation systems.
