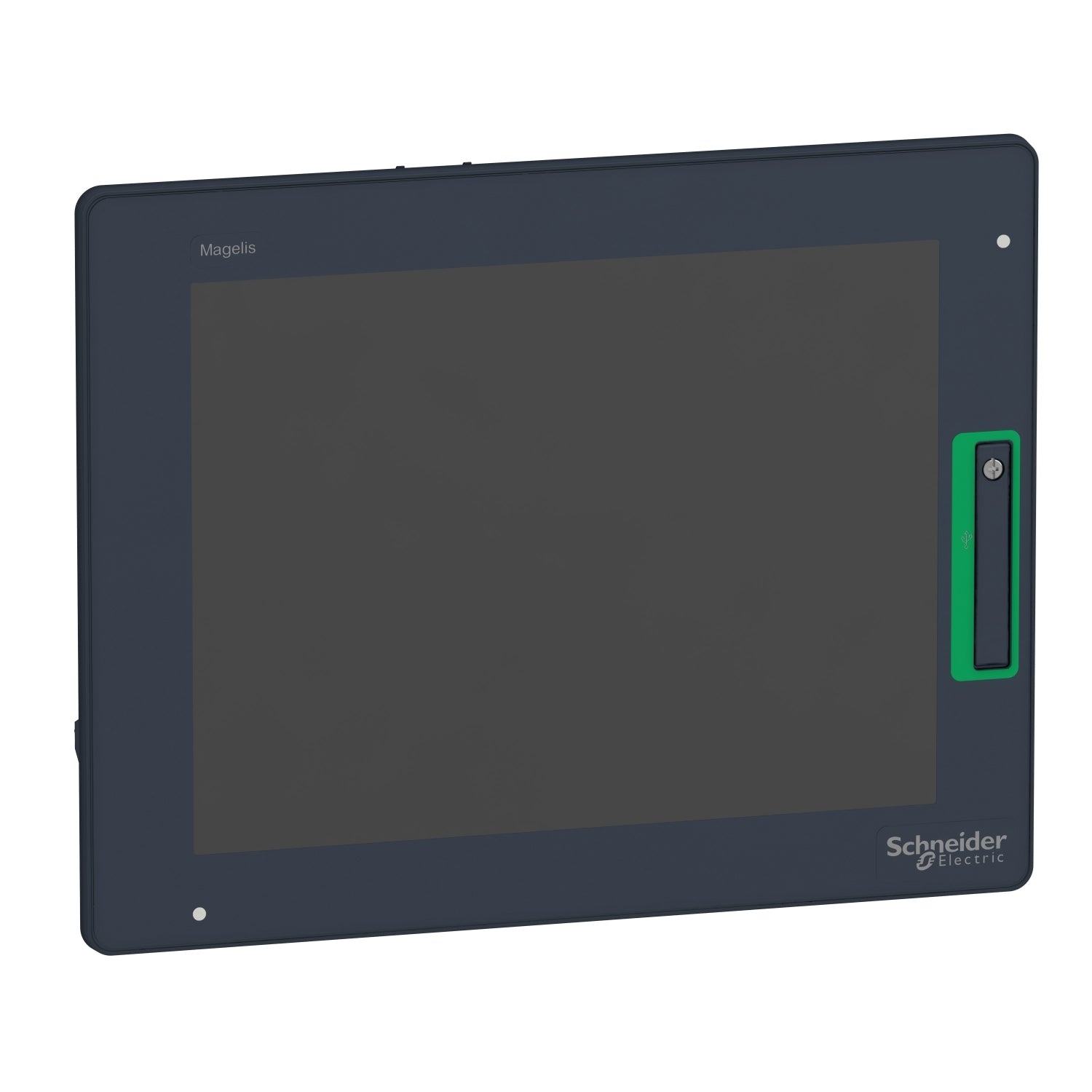

HMIDT542 | Schneider Electric High-Performance Modular HMI With 10.4-Inch Colour TFT Display
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMIDT542
Description
The Schneider Electric HMIDT542 is a high-performance modular HMI designed for demanding industrial visualization and control tasks. Equipped with a 10.4-inch colour TFT display and multiple communication interfaces, it provides reliable interaction and monitoring in complex automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Controls & Indicators |
| Part Number | HMIDT542 |
| Subcategory | Indicator/Display |
| Type | High Performance Modular HMI |
| Manufacturer Series | HMIDT |
| Display Type | LCD / Color TFT |
| Display Size | 10.4 in |
| Display Resolution | 800 × 600 pixel SVGA |
| Display Colour | Colour |
| Brightness Levels | 0 to 100 |
| Power Source | 12 to 24 VDC |
| Communication Ports | USB 2.0 |
| Port Type | Ethernet, Serial, USB |
| Number of Ports | 6 |
| Processor Type | x86 |
| Processor Speed | 1.3 GHz |
| Onboard Memory | 2 GB, 512 kB |
| Backlighting | Yes |
| IP Rating | IP66, IP67 |
| Minimum Operating Temperature | 0 °C |
| Operating Temperature Range | 0 to 60 °C |
| Dimensions | 10.74 in W × 2.64 in D × 8.46 in H |
| Mounting Type | Panel-mounted |
| Environmental Use | Industrial automation, hazardous locations, marine systems |
Information About HMIDT542
The HMIDT542 is a modular touchscreen HMI from Schneider Electric’s Magelis GTU family, built to deliver high-level visualization and operator interaction in advanced control systems. It features a 10.4-inch colour TFT display with SVGA resolution, allowing clear rendering of text, diagrams, and animated graphical objects. Its modular architecture provides flexible connectivity through multiple communication ports and supports modern multi-touch gestures for intuitive operation. Designed for harsh industrial conditions, it maintains reliable performance up to 60 °C and is protected with IP66/IP67 ratings to withstand challenging installation environments.
Key Features:
- 10.4-Inch Colour TFT Display: Provides high-clarity visualization with an 800 × 600 resolution suitable for detailed process monitoring.
- Wide Input Voltage Range: Operates from 12 to 24 VDC, supporting diverse control cabinet power configurations.
- Multi-Touch Interface: Enables gesture-based operation similar to modern smart devices for improved usability.
- High Communication Flexibility: Includes Ethernet, USB, and serial ports to interface with a wide range of automation equipment.
- Industrial-Grade Protection: IP66/IP67 ratings ensure resistance to dust, moisture, and harsh operating conditions.
- Temperature-Resilient Design: Maintains stable performance in environments reaching up to 60 °C, suitable for unventilated enclosures.
- Integrated Diagnostic LEDs: Provides status and error visibility for system monitoring and troubleshooting.
- Modular Architecture: Supports expansion, removable storage, and adaptable networking configurations for advanced system designs.
The HMIDT542 delivers the reliability and precision required for rugged industrial visualization, control, and high-performance HMI applications.
