HMIG5U2 | Schneider Electric |Terminal Box

Description

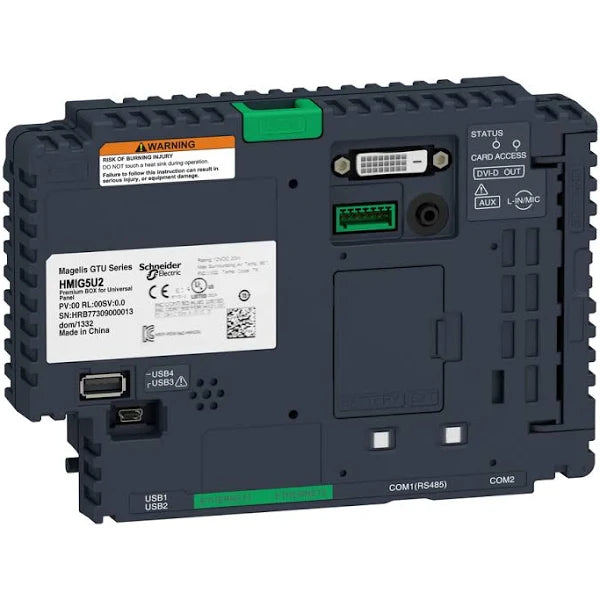

The Schneider Electric HMIG5U2 Open Terminal Box WES7, part of the Harmony GTU range, is an IoT-ready modular HMI panel available in sizes ranging from 7 to 19 inches in width. It features an Intel X86 1.33GHz processor and 32GB CFast card for data storage, suitable for universal panel applications. This open box includes a backup memory of NVRAM 512kB and internal RAM of 2GB, operating on Windows Embedded 7 OS. It incorporates a 10BASE-T/100BASE-TX/1000BASE-T Ethernet port and supports communication protocols such as Modbus, Modbus TCP/IP, and Uni-Telway.

The dimensions of the terminal box are 188mm (width) x 45mm (depth) x 131mm (height), weighing 0.9kg. It holds certifications from ATEX, CE, CULus, IEC, CUL, GL, LR, BV, RCM, and EAC, meeting standards including CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, and IEC 61132-2.

Technical Specifications

Information About HMIG5U2

The Schneider Electric HMIG5U2 Open Terminal Box WES7, featuring an Intel Bay Trail E3825 CPU and a CFast 32GB storage capacity, is part of the Harmony GTU range, providing high-performance IoT-ready modular HMI panels spanning from 7 to 19 inches in width.

Designed as an open box solution, it incorporates an Intel X86 1.33GHz processor, tailored for universal panel compatibility. The device boasts a backup memory of NVRAM 512kB and internal RAM of 2GB, facilitating seamless operation.

Operating on the Windows Embedded 7 platform, this open terminal box offers versatile connectivity options via its 10BASE-T/100BASE-TX/1000BASE-T Ethernet port, supporting communication protocols such as Modbus, Modbus TCP/IP, and Uni-Telway.

With dimensions measuring 188mm (width) x 45mm (depth) x 131mm (height) and weighing 0.9kg, this device is compact yet robust, suitable for various industrial environments.

Certified by ATEX, CE, CULus, IEC, CUL, GL, LR, BV, RCM, and EAC, it meets rigorous industry standards including CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213, and IEC 61132-2, ensuring reliability and compliance.

The Harmony GTU series, previously known as Magelis GTU, stands out for its user-friendly interface reminiscent of smartphone interactions and integrated wireless technology. It offers unparalleled ease of use without compromising on performance or openness, making it an ideal choice for industrial applications requiring advanced HMI functionality.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
