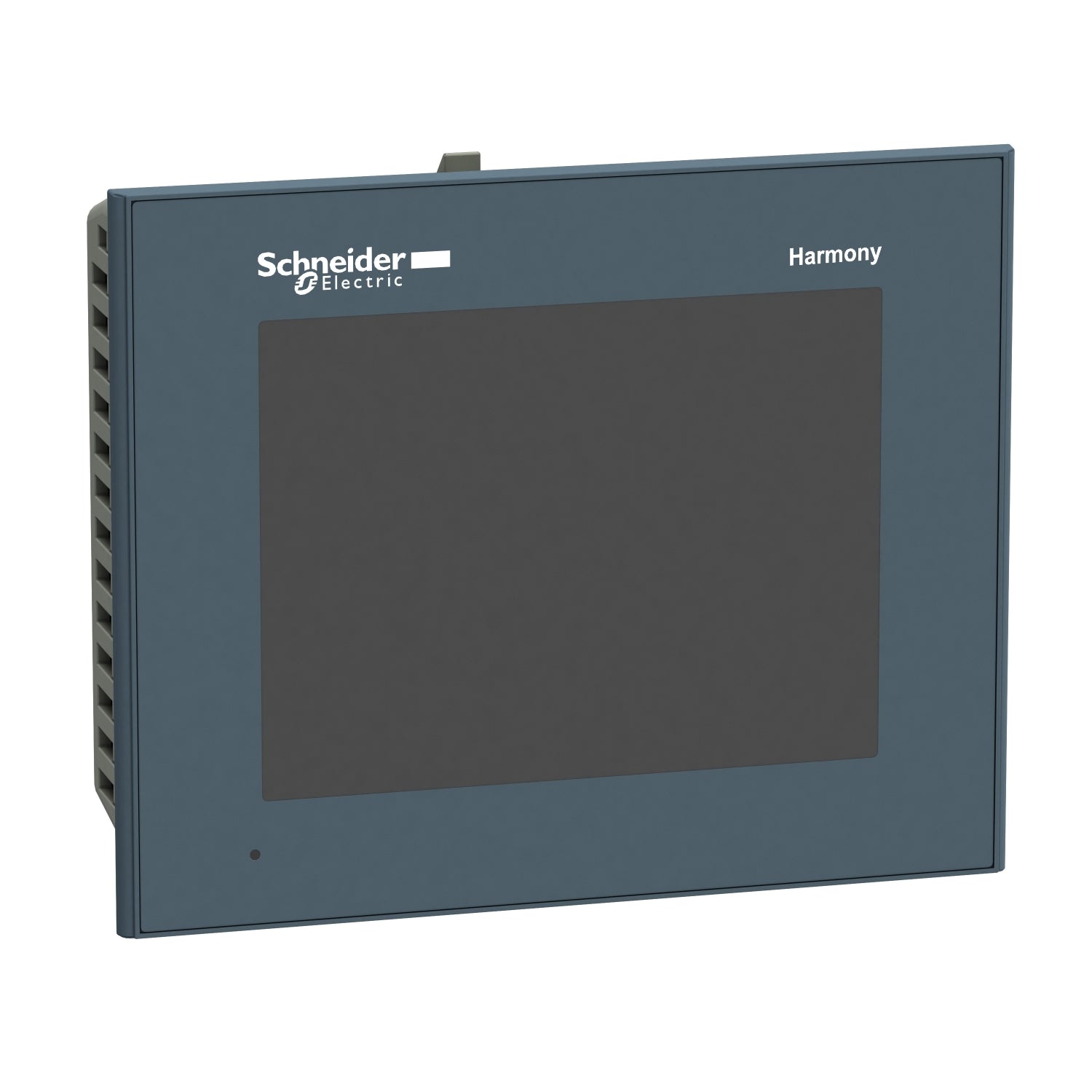

HMIGTO2310 | Schneider Electric Advanced touchscreen panel
- Regular price
- $744.00
- Sale price
- $744.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMIGTO2310
Description
The HMIGTO2310, belonging to the Harmony GTO series, is an advanced touchscreen panel designed for industrial applications. Featuring a 5.7-inch color TFT LCD display with a resolution of 320 x 240 pixels (QVGA), it offers clear and detailed visualization. With a robust IP65-rated enclosure, it ensures protection against dust and water ingress, making it suitable for harsh industrial environments.
Powered by a 24V DC supply, the HMIGTO2310 is equipped with 96MB of EPROM, providing ample storage capacity for applications and data. It features 1 host USB port, 1 mini-B USB port, 1 RS232C port, and 1 Ethernet TCP/IP port, facilitating connectivity with various devices and networks.
Designed for optimized information and communication in industrial and infrastructure settings, this touchscreen panel is ideal for compact machines, handling systems, food & beverage machines, and the pharmaceutical industry. It enables the display of text messages, graphic objects, mimic diagrams, and allows for the control and configuration of data.
Technical Specifications
|
Part # |
HMIGTO2310 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
HMI / MMI / OIT |
|
Subcategory |
Operator Interface Range of Product |
|
Product or component type |
Advanced touchscreen panel |
|
Display color |
65536 colors |
|
Display size |
5.7 inch |
|
Supply |
External source |
|
Operating system |
Harmony |
|
Battery type |
Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
|
Terminal type |
Touchscreen display |
|
Display type |
Backlit color TFT LCD |
|
Display resolution |
320 x 240 pixels QVGA |
|
Touch sensitive zone |
1024 x 1024 |
|
Touch panel |
Resistive film, 1000000 cycles |
|
Backlight lifespan |
50000 hours white at 25 °C |
|
[Us] rated supply voltage |
24 V DC |
|
Supply voltage limits |
19.2…28.8 V |
|
Inrush current |
30 A |
|
Software designation |
Vijeo Designer configuration software >= V6.1 |
|
Memory description |
Flash EPROM, 96 MB |
|
Data backed up |
512 KB internal RAM (SRAM) |
|
Product mounting |
Flush mounting |
|
Fixing mode |
By 4 screw clamps |
|
Front material |
PPT |
|
Enclosure material |
PPT |
|
Type of cooling |
Natural convection |
|
Width |
169.5 mm |
|
Height |
137 mm |
|
Depth |
59.5 mm |
|
Net weight |
0.8 kg |
|
Ambient air temperature for operation |
0…55 °C |
|
Ambient air temperature for storage |
-20…60 °C |
|
Relative humidity |
10…90 % without condensation |
|
Operating altitude |
< 2000 m |
|
NEMA degree of protection |
NEMA 4X front panel (indoor use) |
|
Shock resistance |
147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2 |
|
Resistance to electrostatic discharge |
6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
Information About HMIGTO2310
The HMIGTO2310 is an advanced touchscreen panel belonging to the Harmony GTO series, featuring a 320 x 240 pixels QVGA display with a 5.7-inch TFT LCD screen. This Magelis GTO IP65 touchscreen operator interface (HMI) operates with a supply voltage of 24V DC and is equipped with a 96MB EPROM.
Designed for seamless integration into industrial automation systems, infrastructure, and machinery, the HMIGTO2310 facilitates optimized information exchange and communication. It is particularly suitable for applications in industries such as compact machines, handling systems, food & beverage machines, and the pharmaceutical industry.
The panel boasts multiple connectivity options, including 1 host port, 1 mini-B USB port, 1 RS232C port, and 1 Ethernet TCP/IP port, ensuring versatile and efficient data transfer and communication.
With its vibrant color TFT LCD display, the HMIGTO2310 can showcase various visual elements, including text messages, graphic objects, mimic diagrams, and control and configuration data. This enables operators to monitor and manage processes effectively.
Featuring an RS485 host port, the HMIGTO2310 is well-suited for supervising and controlling simple systems and machines, enhancing operational efficiency and productivity.
One of the key advantages of the HMIGTO2310 is its ease of programming. Utilizing Vijeo Designer software, the panel can be programmed with minimal coding requirements, streamlining the development process and reducing implementation time.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
