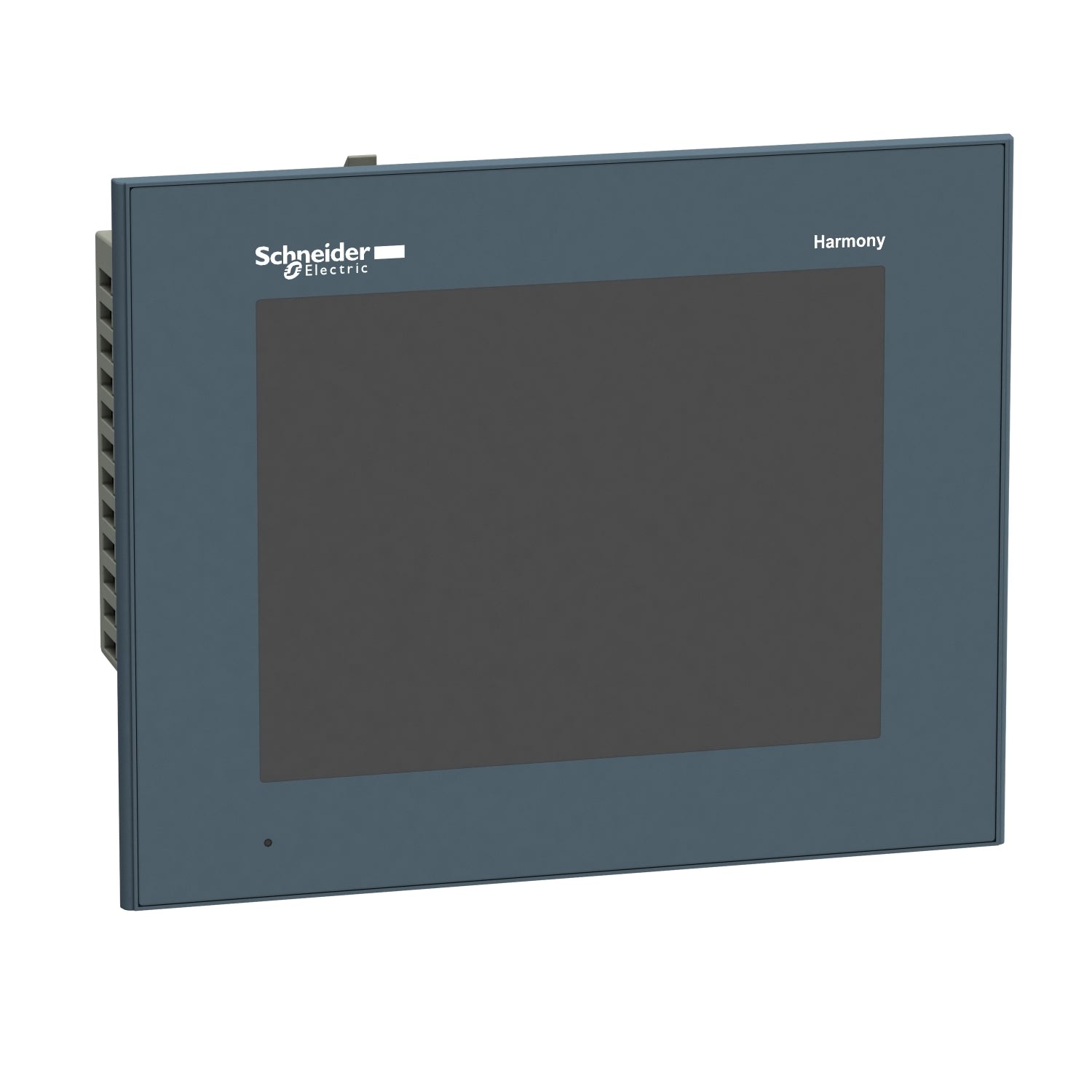

HMIGTO4310 | Schneider Electric Advanced touchscreen panel
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMIGTO4310
Description
Technical Specifications
|
Part # |
HMIGTO4310 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
HMI / MMI / OIT |
|
Subcategory |
Operator Interface Range of product |
|
Harmony Terminal type |
Touchscreen display |
|
Display type |
Backlit color TFT LCD |
|
Display color |
65536 colors |
|
Display size |
7.5 inch |
|
Display resolution |
640 x 480 pixels VGA |
|
Touch sensitive zone |
1024 x 1024 |
|
Touch panel |
Resistive film, 1000000 cycles |
|
Backlight lifespan |
50000 hours white at 25 °C |
|
Rated supply voltage |
24 V DC |
|
Supply voltage limits |
19.2…28.8 V |
|
Inrush current |
30 A |
|
Software designation |
Vijeo Designer configuration software >= V6.1 |
|
Memory description |
Flash EPROM, 96 MB |
|
Data backed up |
512 KB internal RAM (SRAM) |
|
Product mounting |
Flush mounting |
|
Fixing mode |
By 4 screw clamps |
|
Front material |
PPT |
|
Enclosure material |
PPT |
|
Type of cooling |
Natural convection |
|
Width |
218 mm |
|
Height |
173 mm |
|
Depth |
60 mm |
|
Net weight |
1.2 kg |
|
Ambient air temperature (operation) |
0…55 °C |
|
Ambient air temperature (storage) |
-20…60 °C |
|
Relative humidity |
10…90 % without condensation |
|
Operating altitude |
< 2000 m |
|
NEMA degree of protection |
NEMA 4X front panel (indoor use) |
|
Shock resistance |
147 m/s² 3 chocks in each direction X, Y and Z |
|
Resistance to electrostatic discharge |
6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
Information About HMIGTO4310
The HMIGTO4310 is an advanced touchscreen panel from the Harmony GTO series, featuring a 7.5-inch color TFT LCD display with a resolution of 640 x 480 pixels (VGA) and 96MB EPROM storage capacity. This Magelis GTO IP65-rated touchscreen operator interface is powered by 24V DC and incorporates versatile connectivity options including 1 SD card slot, 1 host port, 1 mini-B USB port, 1 RS232C port, 1 RS485 port, and 1 Ethernet TCP/IP port.
Designed to facilitate optimized information exchange and communication within automation systems, the HMIGTO4310 caters to diverse industrial and infrastructural applications, including but not limited to compact machines, handling systems, food & beverage machinery, and the pharmaceutical industry. Its functionality extends to displaying text messages, graphic objects, and mimic diagrams, as well as facilitating the control and configuration of data.
With its RS485 host port, the HMIGTO4310 is particularly well-suited for supervising and controlling simple systems and machines. Additionally, its compatibility with Vijeo Designer software streamlines the programming process, requiring minimal coding effort. This feature enhances usability and ensures ease of integration into existing automation setups, thereby optimizing operational efficiency and reducing deployment complexities.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
