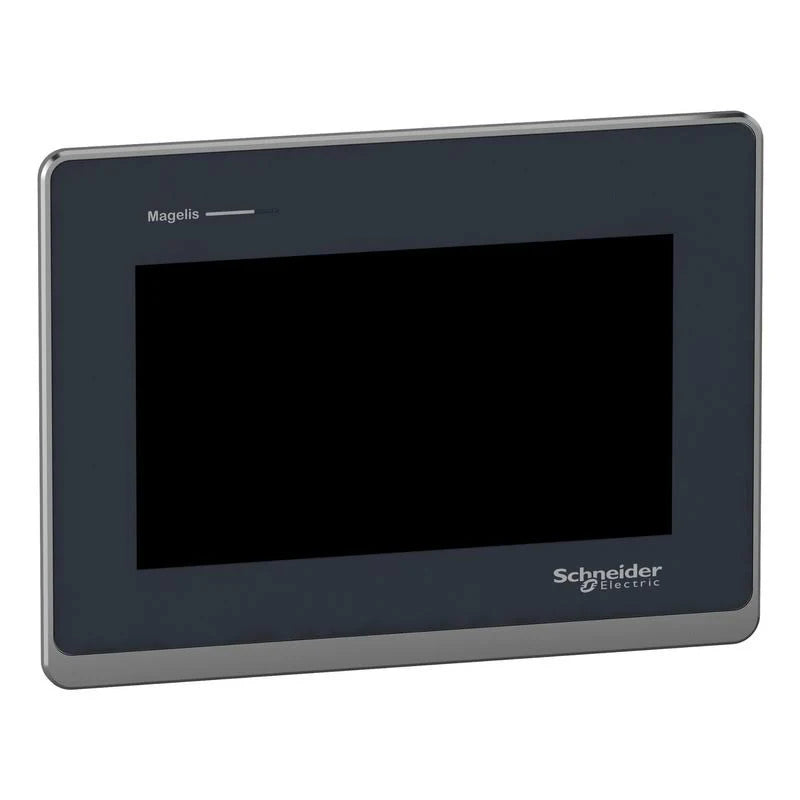

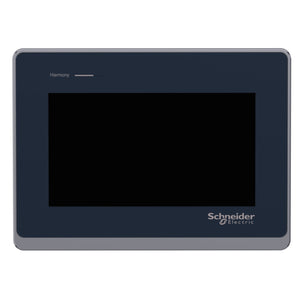

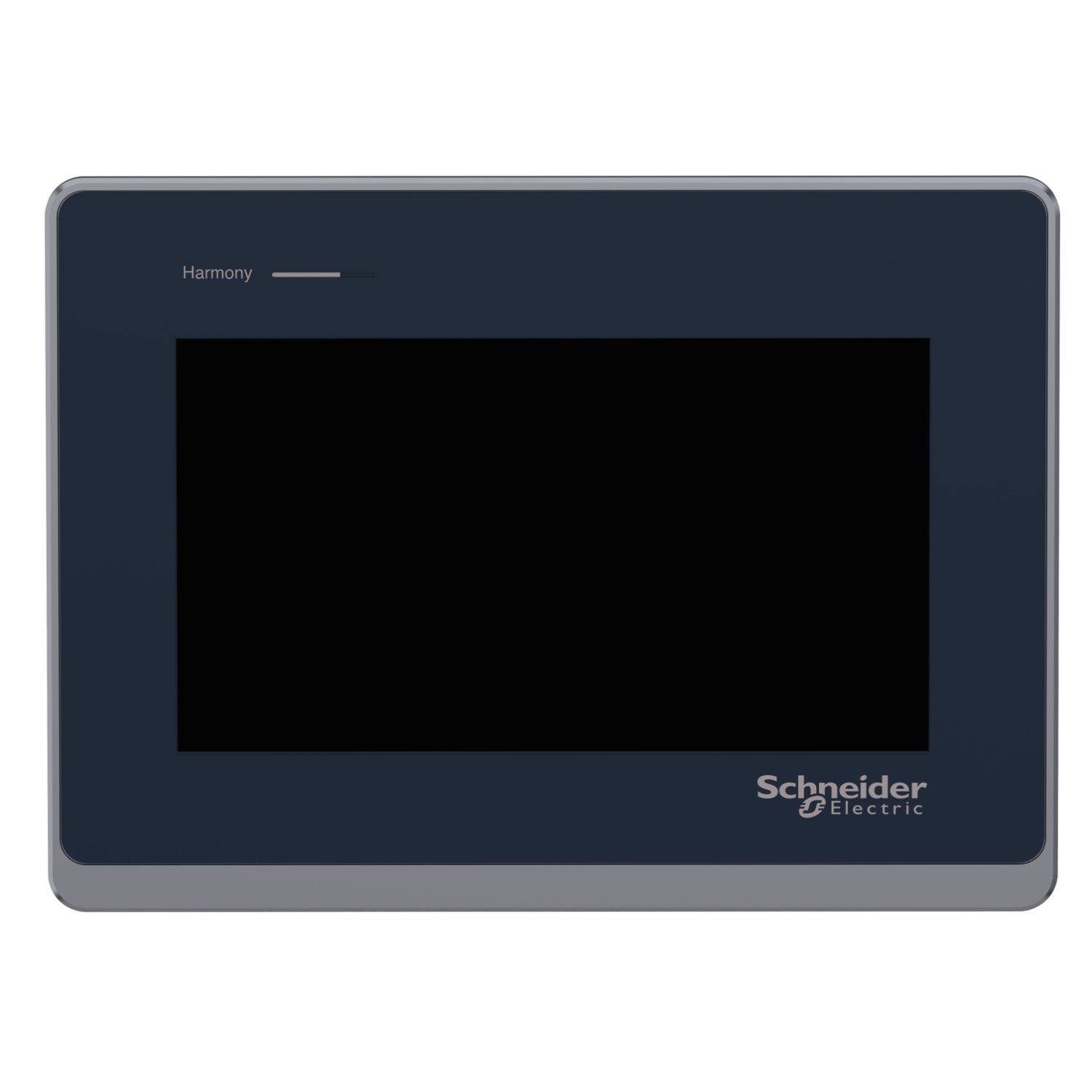

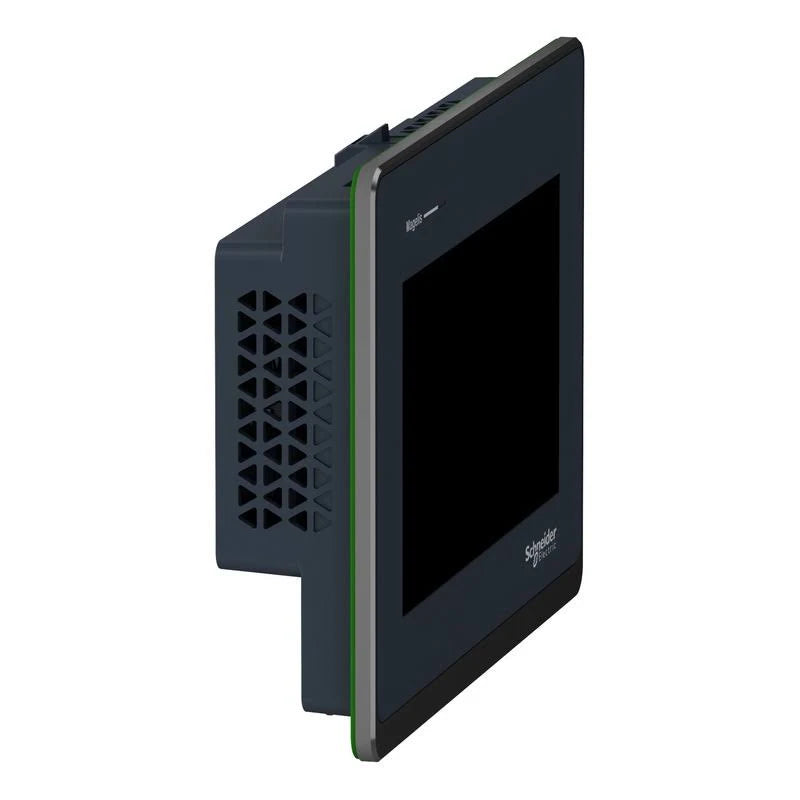

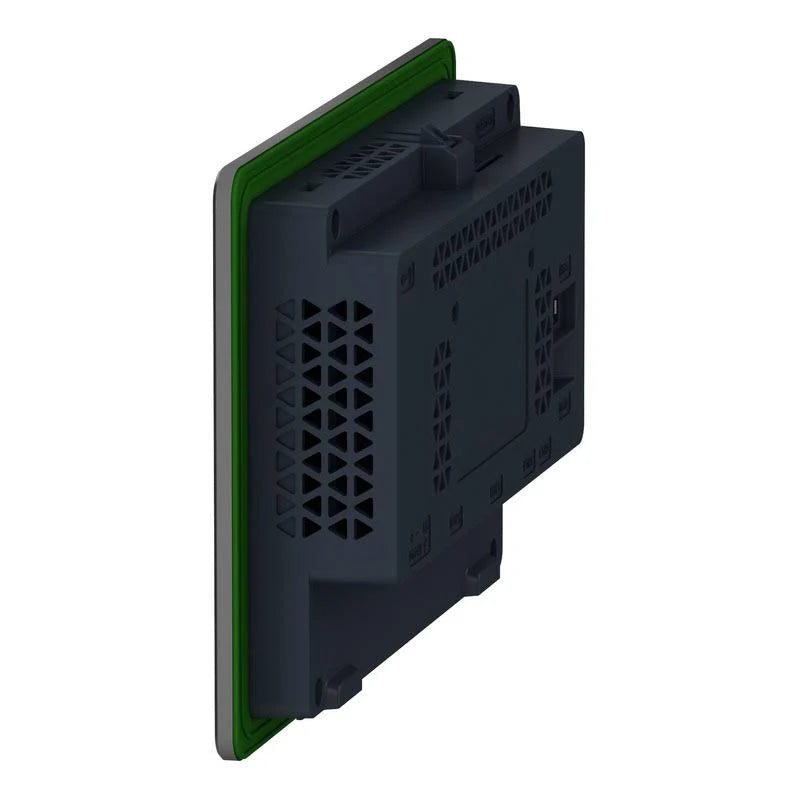

HMIST6400 | Schneider Electric Touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
- Regular price
- $689.00
- Sale price
- $689.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMIST6400
Description
Touchscreen HMI / Programmable Terminal (PT) - Schneider Electric (Magelis ST6) - 800×480pixels display (7" WVGA TFT 16M color with LED backlight) - IP65 / NEMA 4X / NEMA 13 - 1GB Flash EPROM (Application) memory capacity - with RS-232C + RS-485 + Ethernet TCP/IP communication capability - 24Vdc supply voltage - with USB mini-B port + USB type A port + RJ45 ports x 3 + 9-pin D-Sub connector - Flush mounting - with Magelis OS pre-installed - 800 MHz ARM Cortex-A8 processor / Single-touch resistive display
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | HMIST6400 |
| Category | HMI / MMI / OIT |
| Subcategory | Operator Interface |
| Main function | HMI / Display unit |
| Product series / family name | Magelis ST6 |
| Functions | Touchscreen HMI / Programmable Terminal (PT) |
| Supply voltage (DC) | 24Vdc |
| Pixel count | 800×480 pixels |
| Memory capacity | 1GB Flash EPROM (Application) |
| Connection type | USB mini-B port USB type A port RJ45 ports x 3 9-pin D-Sub connector |
| Communication protocol | RS-232C RS-485 Ethernet TCP/IP |
| Mounting mode | Flush |
| Degree of protection | IP65 NEMA 4X NEMA 13 |
| Ambient air temperature for operation | 0...+50°C °C |
| Ambient air temperature for storage | -20...+60 °C |
| Technology used in component | 800 MHz ARM Cortex-A8 processor Single-touch resistive display |
| Display type | 7" WVGA TFT 16M color with LED backlight |
| Compliant with standard(s) | KC UL CE RCM EMC CSA EN 61000-6-4 EN 61131-2 EN 61000-6-2 |
| Electrical durability | (Backlight) 50000 hours hours |
| Operating System (OS) | Magelis |
Information About HMIST6400

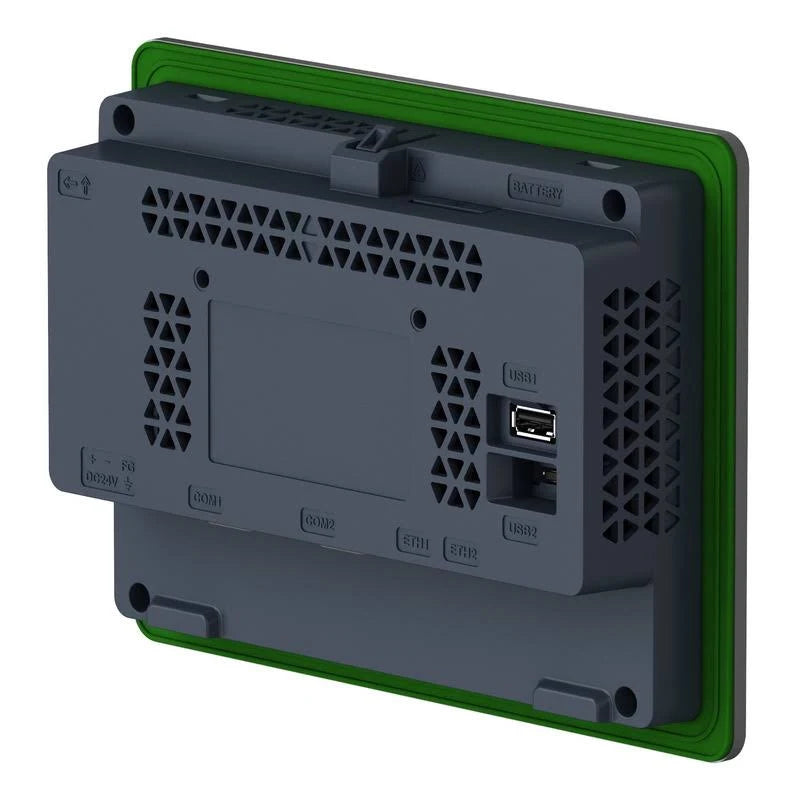

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
