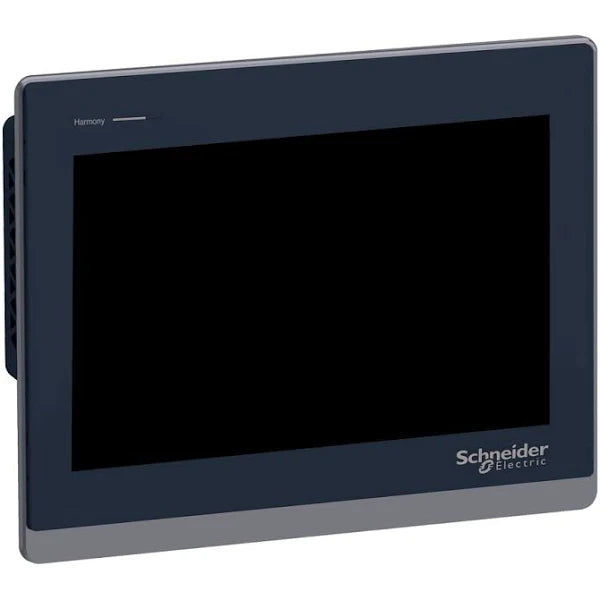

HMIST6500 | Schneider Electric Touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
HMIST6500 | Schneider Electric Touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
Part #: HMIST6500 Manufactured by: Schneider Electric

HMIST6500 | Schneider Electric Touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC

Regular price
$1,377.00
Sale price
$1,377.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
Schneider Electric Square D Harmony ST6 Touch Panel Display, 12.6 W Power Source, LCD/Color TFT Display, 10 in Display, 1 ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: HMIST6500
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
HMIST6500 | Schneider Electric Touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
    HMIST6500 | Schneider Electric Touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
HMIST6500 | Schneider Electric Touch panel screen, Harmony ST6, 10inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: HMIST6500

Description / Specifications

Description

Touchscreen HMI / Programmable Terminal (PT) - Schneider Electric (Magelis ST6) - 1024x600pixels display (10.1" WSVGA TFT 16M color with LED backlight) - IP65 / NEMA 4X / NEMA 13 - 1GB Flash EPROM (Application) memory capacity - with RS-232C + RS-485 + Ethernet TCP/IP communication capability - 24Vdc supply voltage - with USB mini-B port + USB type A port + RJ45 ports x 3 + 9-pin D-Sub connector - Flush mounting - with Magelis OS pre-installed - 800 MHz ARM Cortex-A8 processor / Single-touch resistive display



Technical Specifications



Brand Schneider Electric
Part Number HMIST6500
Category HMI / MMI / OIT
Subcategory OIT Replacement Display/Touch
Type TFT Displays
Diagonal 10 in
Resolution WSVGA
Display Resolution - Pixels 1024 x 600
Interface Type Ethernet, SPI, USB
Touch Panel Resistive Touch Panel
Backlighting LED
Module Size - W x H x T 273 mm x 203 mm x 47 mm
Operating Supply Voltage 24 V
Ambient air temperature for operation 0...+50°C °C
Ambient air temperature for storage -20...+60 °C
Memory capacity 1GB Flash EPROM (Application)
Connection type USB mini-B port
USB type A port
RJ45 ports x 3
9-pin D-Sub connector
Communication protocol RS-232C
RS-485
Ethernet TCP/IP





Information About HMIST6500

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

Touchscreen HMI / Programmable Terminal (PT) - Schneider Electric (Magelis ST6) - 1024x600pixels display (10.1" WSVGA TFT 16M color with LED backlight) - IP65 / NEMA 4X / NEMA 13 - 1GB Flash EPROM (Application) memory capacity - with RS-232C + RS-485 + Ethernet TCP/IP communication capability - 24Vdc supply voltage - with USB mini-B port + USB type A port + RJ45 ports x 3 + 9-pin D-Sub connector - Flush mounting - with Magelis OS pre-installed - 800 MHz ARM Cortex-A8 processor / Single-touch resistive display



Technical Specifications



Brand Schneider Electric
Part Number HMIST6500
Category HMI / MMI / OIT
Subcategory OIT Replacement Display/Touch
Type TFT Displays
Diagonal 10 in
Resolution WSVGA
Display Resolution - Pixels 1024 x 600
Interface Type Ethernet, SPI, USB
Touch Panel Resistive Touch Panel
Backlighting LED
Module Size - W x H x T 273 mm x 203 mm x 47 mm
Operating Supply Voltage 24 V
Ambient air temperature for operation 0...+50°C °C
Ambient air temperature for storage -20...+60 °C
Memory capacity 1GB Flash EPROM (Application)
Connection type USB mini-B port
USB type A port
RJ45 ports x 3
9-pin D-Sub connector
Communication protocol RS-232C
RS-485
Ethernet TCP/IP





Information About HMIST6500

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
