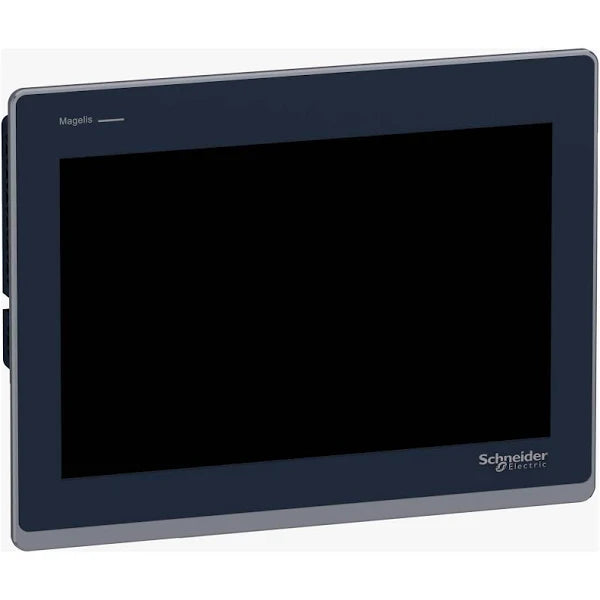

HMIST6600 | Schneider Electric Magelis ST6 12.1" Touchscreen HMI, 1280×800, 24VDC, RS-232/RS-485/Ethernet, IP65
- Regular price
- $2,019.00
- Sale price
- $2,019.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMIST6600
Description
The Schneider Electric HMIST6600 is a Magelis ST6 series 12.1-inch touchscreen HMI featuring a 1280 × 800 WXGA display with 16 million colors and LED backlighting. It operates on 24VDC and includes RS-232C, RS-485, and Ethernet TCP/IP communication interfaces for integration into a wide range of automation systems. Designed for industrial reliability, the HMI offers flush mounting, IP65/NEMA 4X/13 front protection, and multiple USB and serial connectivity options.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | HMI / MMI / OIT |
| Part Number | HMIST6600 |
| Subcategory | OIT Touchscreen Display |
| Series | Harmony ST6 / Magelis ST6 |
| Display Size | 12.1 in |
| Display Resolution | 1280 × 800 pixels (WXGA) |
| Display Type | TFT, 16M color, LED backlight |
| Touchscreen Type | Resistive single-touch |
| Supply Voltage | 24 VDC |
| Memory Capacity | 1 GB Flash EPROM (application) |
| Communication Interfaces | RS-232C, RS-485, Ethernet TCP/IP |
| Ports | USB Type-A, USB mini-B, 3 × RJ45, 9-pin D-Sub |
| IP Rating | IP65 (front), NEMA 4X/13 (front), IP20 (rear) |
| Operating Temperature | 0°C to 50°C |
| Mounting | Flush panel mount |
| Dimensions | 313 × 235 × 50 mm |
| Processor | 800 MHz ARM Cortex-A8 |
| Typical Applications | Packaging, HVAC, compressors, food/beverage, textile machinery |
Information About HMIST6600
The HMIST6600 is part of Schneider Electric’s Harmony ST6 family, engineered as a compact and modern operator interface for machine-level visualization. It uses a single-touch resistive TFT display driven by an 800 MHz ARM Cortex-A8 processor, providing smooth graphical performance and compatibility with EcoStruxure Operator Terminal Expert software. The unit features 1 GB of application flash memory along with additional system and backup memory, enabling detailed screens, data storage, and responsive operation. Typical usage includes packaging lines, HVAC equipment, compressors, food and beverage machines, textiles, and other general-purpose industrial automation applications requiring robust front-panel protection and versatile communication.
Key Features:
- 12.1-inch WXGA display: 1280 × 800 resolution with 16M colors for high-clarity visualization.
- Resistive touchscreen: Single-touch interface suitable for gloved industrial operation.
- High-performance processor: 800 MHz ARM Cortex-A8 for smooth HMI runtime.
- 1 GB application memory: Supports complex graphics and multiple screen pages.
- Multiple communication ports: RS-232C, RS-485, and triple Ethernet RJ45 ports.
- USB connectivity: Includes USB Type-A and USB mini-B for updates and peripherals.
- Flush-mount industrial design: Aluminum front panel with status indicator.
- IP65 / NEMA 4X / NEMA 13 front rating: Suitable for harsh indoor industrial environments.
- Wide application range: Ideal for packaging, HVAC, compressor, and process equipment.
- Magelis OS pre-installed: Ready for configuration via EcoStruxure Operator Terminal Expert.
- Broad certification: CE, CSA, KC, China RoHS, and EN/UL industrial standards compliance.
The HMIST6600 delivers the reliability and precision required for modern machine-level visualization in demanding industrial environments.
