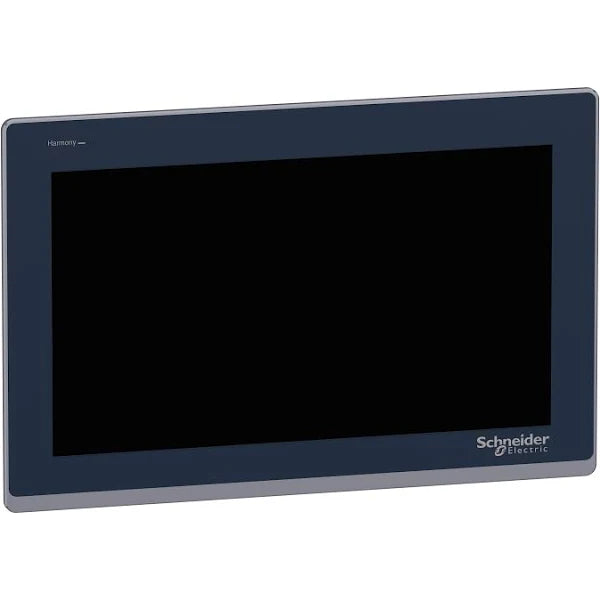

HMIST6700 | Schneider Electric | HMI Display
HMIST6700 | Schneider Electric | HMI Display
Part #: HMIST6700 Manufactured by: Schneider Electric

HMIST6700 | Schneider Electric | HMI Display

Regular price
$2,025.00
Sale price
$2,025.00
Regular price
Never Used Surplus
1 in Stock
Shipping calculated at checkout.
Product Overview
The Schneider Electric HMIST6700 HMI Display, part of the Harmony Series, is a 15-inch Basic HMI panel designed for indust...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: HMIST6700
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
HMIST6700 | Schneider Electric | HMI Display
    HMIST6700 | Schneider Electric | HMI Display
HMIST6700 | Schneider Electric | HMI Display
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: HMIST6700

Description / Specifications

Description

The Schneider Electric HMIST6700 is a 15-inch HMI display designed for industrial applications, specifically belonging to the Harmony ST6 range. Featuring a single-touch resistive interface, this HMI panel boasts an aluminum front panel with a multi-color status indicator, facilitating the display of various operating modes.

With a 15.6-inch wide screen offering 16 million colors and a resolution of 1366 x 768 pixels (FWXGA), it provides a clear and vibrant display. Powered by the EcoStruxure Operator Terminal Expert software, users benefit from an intuitive user experience.

Under the hood, the HMIST6700 is equipped with an 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. It supports connectivity with 2x Ethernet ports, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port.



Technical Specifications



Specifications





Part #

HMIST6700

Manufacturer

SCHNEIDER ELECTRIC

Category

HMI / MMI / OIT

Subcategory

OIT Replacement Display/Touch Display

Display size

15 inch

Display Type

Colour TFT LCD

Display colour

16 million colours

Display Resolution

1366 x 768 pixels FWXGA

Touch panel

Single touch analogue resistive

Backlight lifespan

50000 hours white

Brightness

16 levels

Rated supply voltage

24 V DC +/- 20 %

Inrush current

30 A

Power Consumption in W

18.5 W

Number of pages

200 application pages

Software package

EcoStruxure Operator Terminal Expert

Processor frequency

800 MHz

Ethernet Port

10/100BASE supply

External supply

External supply

Realtime clock

Built-in

Operating Temperature

0...50 °C

Operating Relative Humidity

10...90 % RH

Downloadable protocols

Modbus

Enclosure Material

PC

Front material

Aluminium

Marking

CE

Cut-out dimensions

394 x 250 mm panel cut dimension

Height

10.55 in (268 mm)

Width

16.22 in (412 mm)

Depth

1.97 in (50 mm)

Net Weight

5.95 lb(US) (2.7 kg)

Ambient Air Temperature (Operation)

32…122 °F (0…50 °C)

Ambient Air Temperature (Storage)

-4…140 °F (-20…60 °C)

Relative humidity (Operation)

10…90 % non-condensing

Operating altitude

6561.68 ft (2000 m)





Information About HMIST6700



The Schneider Electric HMIST6700 HMI Display, part of the Harmony Series, is a 15-inch Basic HMI panel designed for industrial applications. Featuring a 24 VDC power supply, it operates within an IP20/65 enclosure, offering robustness and durability within industrial environments.

This HMI panel, belonging to the Schneider Electric Harmony ST6 range, boasts a single-touch resistive interface housed in an aluminum front panel. A multi-color status indicator provides visual cues for various operating modes, enhancing user interaction and system monitoring.

With a 15.6-inch wide display capable of rendering 16 million colors and a resolution of 1366 x 768 pixels (FWXGA), the HMIST6700 delivers crisp and clear visuals. Powered by the EcoStruxure Operator Terminal Expert software, it offers an intuitive user experience and facilitates seamless operation within industrial settings.

Under the hood, the HMIST6700 features an 800 MHz ARM Cortex-A8 CPU, 1 GB of device memory, 128 MB of user data memory, and 512 KB of backup memory. This configuration ensures efficient performance and reliable operation for industrial applications.

Connectivity options include 2x Ethernet ports, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port, enabling flexible integration with existing industrial systems and peripherals.

Measuring 412mm in width, 268mm in height, and 50mm in depth, with a weight of 2.70 kg, the HMIST6700 is designed to meet the needs of industries such as packaging, food & beverage, textile, HVAC equipment, and compressors. Additionally, it caters to end-users seeking to maintain their web devices effectively.

The HMIST6700 adheres to industry standards including EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, and CSA C22.2 No 61010-2-201. It is also certified by CSA, CE, China RoHS, KC, and REACH, ensuring compliance and compatibility with international regulations.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Schneider Electric HMIST6700 is a 15-inch HMI display designed for industrial applications, specifically belonging to the Harmony ST6 range. Featuring a single-touch resistive interface, this HMI panel boasts an aluminum front panel with a multi-color status indicator, facilitating the display of various operating modes.

With a 15.6-inch wide screen offering 16 million colors and a resolution of 1366 x 768 pixels (FWXGA), it provides a clear and vibrant display. Powered by the EcoStruxure Operator Terminal Expert software, users benefit from an intuitive user experience.

Under the hood, the HMIST6700 is equipped with an 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. It supports connectivity with 2x Ethernet ports, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port.



Technical Specifications



Specifications





Part #

HMIST6700

Manufacturer

SCHNEIDER ELECTRIC

Category

HMI / MMI / OIT

Subcategory

OIT Replacement Display/Touch Display

Display size

15 inch

Display Type

Colour TFT LCD

Display colour

16 million colours

Display Resolution

1366 x 768 pixels FWXGA

Touch panel

Single touch analogue resistive

Backlight lifespan

50000 hours white

Brightness

16 levels

Rated supply voltage

24 V DC +/- 20 %

Inrush current

30 A

Power Consumption in W

18.5 W

Number of pages

200 application pages

Software package

EcoStruxure Operator Terminal Expert

Processor frequency

800 MHz

Ethernet Port

10/100BASE supply

External supply

External supply

Realtime clock

Built-in

Operating Temperature

0...50 °C

Operating Relative Humidity

10...90 % RH

Downloadable protocols

Modbus

Enclosure Material

PC

Front material

Aluminium

Marking

CE

Cut-out dimensions

394 x 250 mm panel cut dimension

Height

10.55 in (268 mm)

Width

16.22 in (412 mm)

Depth

1.97 in (50 mm)

Net Weight

5.95 lb(US) (2.7 kg)

Ambient Air Temperature (Operation)

32…122 °F (0…50 °C)

Ambient Air Temperature (Storage)

-4…140 °F (-20…60 °C)

Relative humidity (Operation)

10…90 % non-condensing

Operating altitude

6561.68 ft (2000 m)





Information About HMIST6700



The Schneider Electric HMIST6700 HMI Display, part of the Harmony Series, is a 15-inch Basic HMI panel designed for industrial applications. Featuring a 24 VDC power supply, it operates within an IP20/65 enclosure, offering robustness and durability within industrial environments.

This HMI panel, belonging to the Schneider Electric Harmony ST6 range, boasts a single-touch resistive interface housed in an aluminum front panel. A multi-color status indicator provides visual cues for various operating modes, enhancing user interaction and system monitoring.

With a 15.6-inch wide display capable of rendering 16 million colors and a resolution of 1366 x 768 pixels (FWXGA), the HMIST6700 delivers crisp and clear visuals. Powered by the EcoStruxure Operator Terminal Expert software, it offers an intuitive user experience and facilitates seamless operation within industrial settings.

Under the hood, the HMIST6700 features an 800 MHz ARM Cortex-A8 CPU, 1 GB of device memory, 128 MB of user data memory, and 512 KB of backup memory. This configuration ensures efficient performance and reliable operation for industrial applications.

Connectivity options include 2x Ethernet ports, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port, enabling flexible integration with existing industrial systems and peripherals.

Measuring 412mm in width, 268mm in height, and 50mm in depth, with a weight of 2.70 kg, the HMIST6700 is designed to meet the needs of industries such as packaging, food & beverage, textile, HVAC equipment, and compressors. Additionally, it caters to end-users seeking to maintain their web devices effectively.

The HMIST6700 adheres to industry standards including EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, and CSA C22.2 No 61010-2-201. It is also certified by CSA, CE, China RoHS, KC, and REACH, ensuring compliance and compatibility with international regulations.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
