HMIVU04CUNBE | Eaton HMI VU Display
- Regular price
- $742.00
- Sale price
- $742.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMIVU04CUNBE
Description

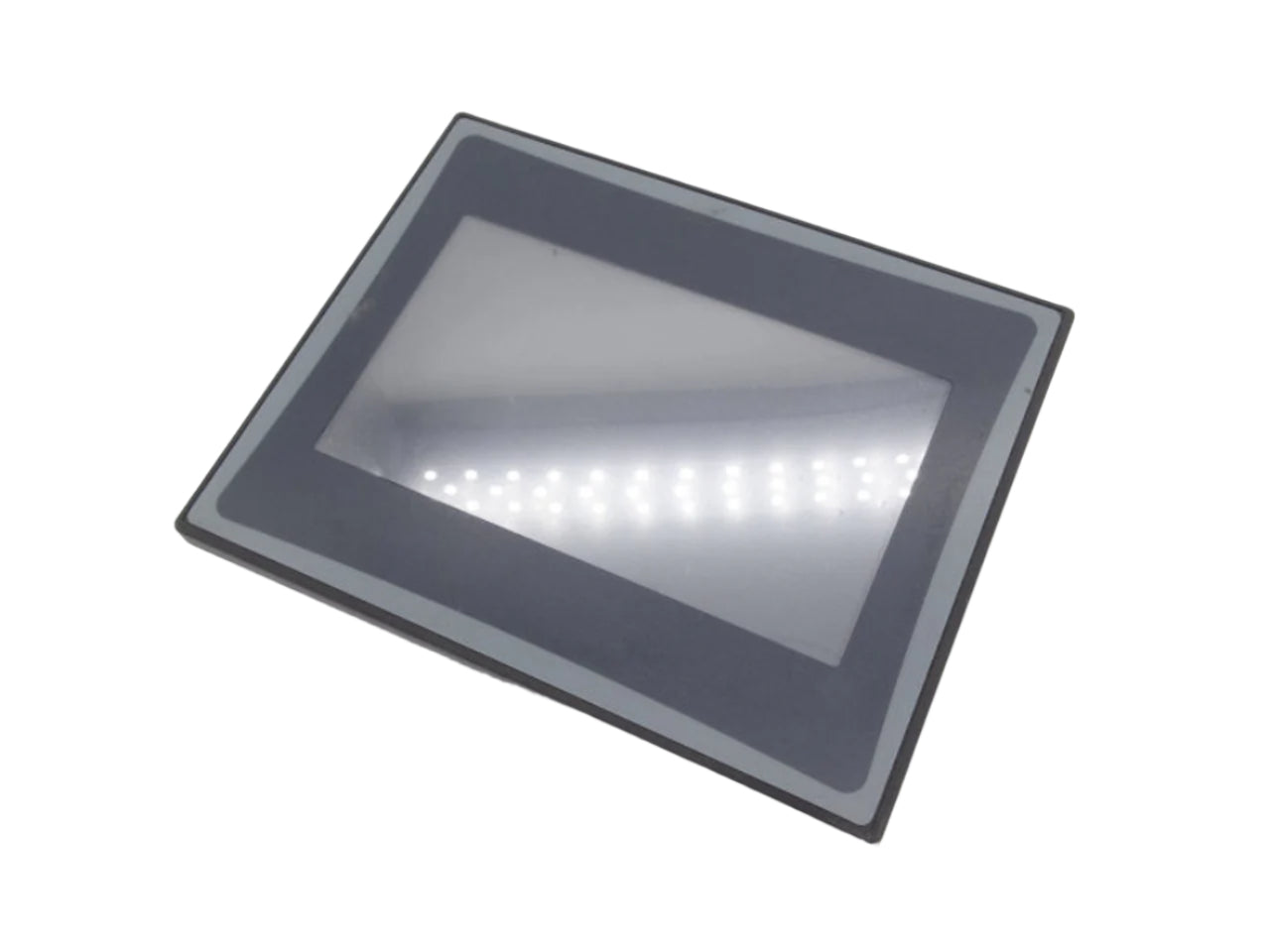

The HMIVU04CUNBE is part of Eaton’s HMi VU series of compact operator interfaces. It features a 4.3-inch color TFT LCD touchscreen with a resolution of 480 × 234 pixels, optimized for industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
HMI / MMI / OIT
|
| Part Number | HMIVU04CUNBE |
| Subcategory | Operator Interface |
| Display |
4.0 in LCD |
| HMI Type |
Touch Screen HMI |
| Series |
HMI Series |
| Technology |
TFT LCD Display |
| Height | 5 in |
| Length | 9.5 in |
| Width | 7.25 in |
| Weight | 1.47 lbs |
Information About HMIVU04CUNBE

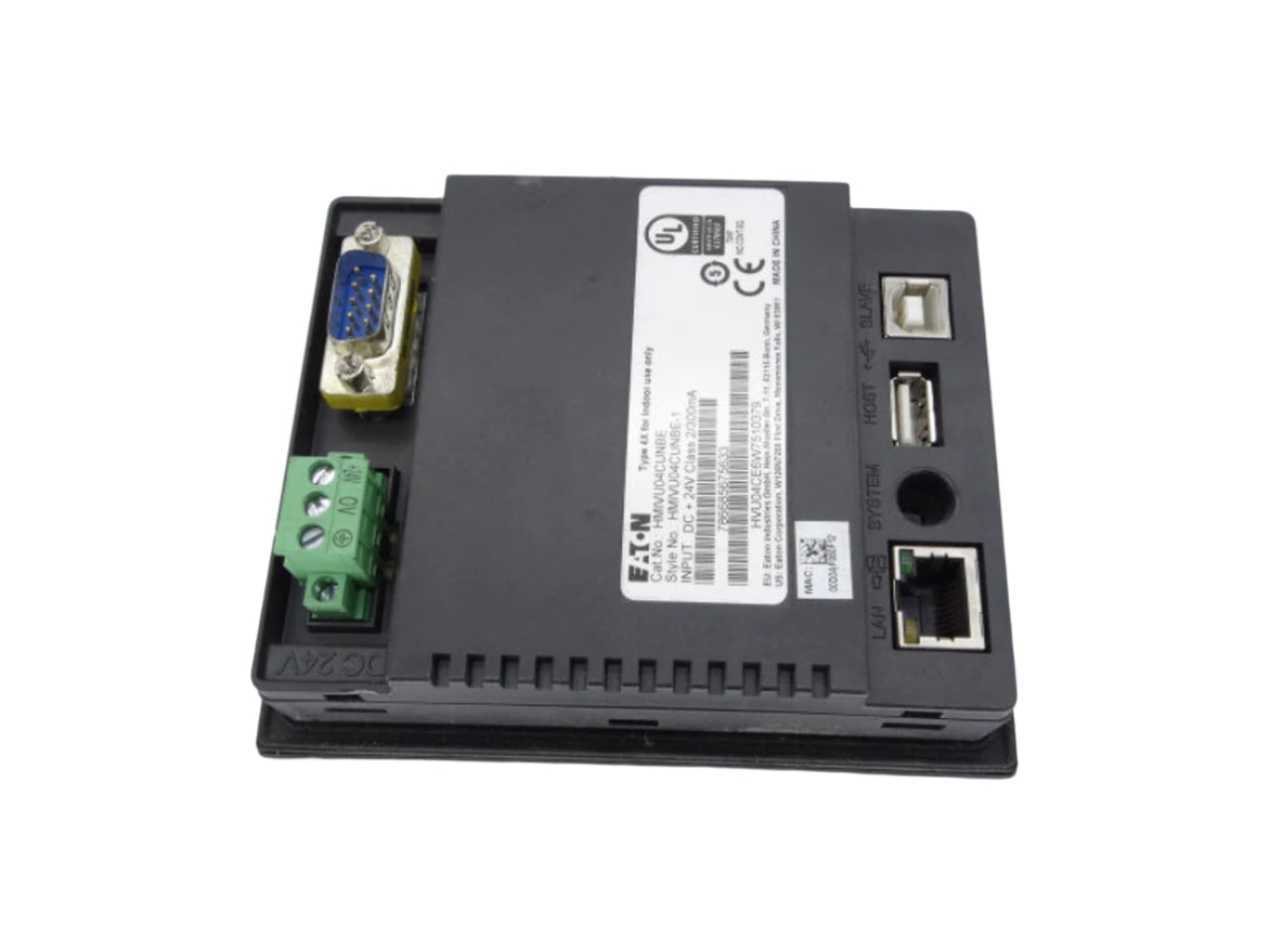

The HMIVU04CUNBE is part of Eaton’s HMi VU series—compact, rugged operator interfaces designed for machine and process automation. Featuring a 4.3-inch color TFT LCD with a 480 × 234 resolution and analog touchscreen input, it delivers clear visualizations in tight panel spaces. With onboard Ethernet, serial communication, and SD card support, this display is engineered for flexible integration with PLCs and other industrial controllers. Its IP65-rated front panel, 24 VDC operation, and audio output port make it suitable for harsh indoor environments requiring reliable control and visualization.
Key Features:
- Compact Display: 4.3″ color TFT LCD with analog resistive touchscreen for intuitive control in confined panels or machine consoles.
- Communication Versatility: Includes Ethernet, USB, and three serial COM ports (RS-232/422/485), supporting a wide range of industrial protocols.
- Durable Interface: IP65 / NEMA 4X front panel rating ensures dust-tight, water-resistant operation in demanding settings.
- Integrated Audio Out: 3.5 mm audio output enables alarm or event notifications for immediate operator awareness.
- Data Handling: Built-in SD card slot for data logging, recipe handling, and firmware/application updates.
- Power Efficient: Operates at 24 VDC with low power consumption and fanless cooling for long-term reliability.
- Software Compatible: Programmed via Eaton’s HMiSoft software suite, supporting scalable and reusable HMI projects.
- Simple Installation: Panel-mountable with included gasket and standard cutout dimensions (~172.4 × 184 mm).
- Certifications: UL/cUL, CE, RoHS, and C-Tick approved for global use.
- Temperature Resilience: Operates between 0–50 °C with up to 95% non-condensing humidity tolerance.
The Eaton HMIVU04CUNBE is an efficient and cost-effective HMI solution, perfect for OEMs and integrators seeking streamlined, touch-based operator control in compact automation environments.
