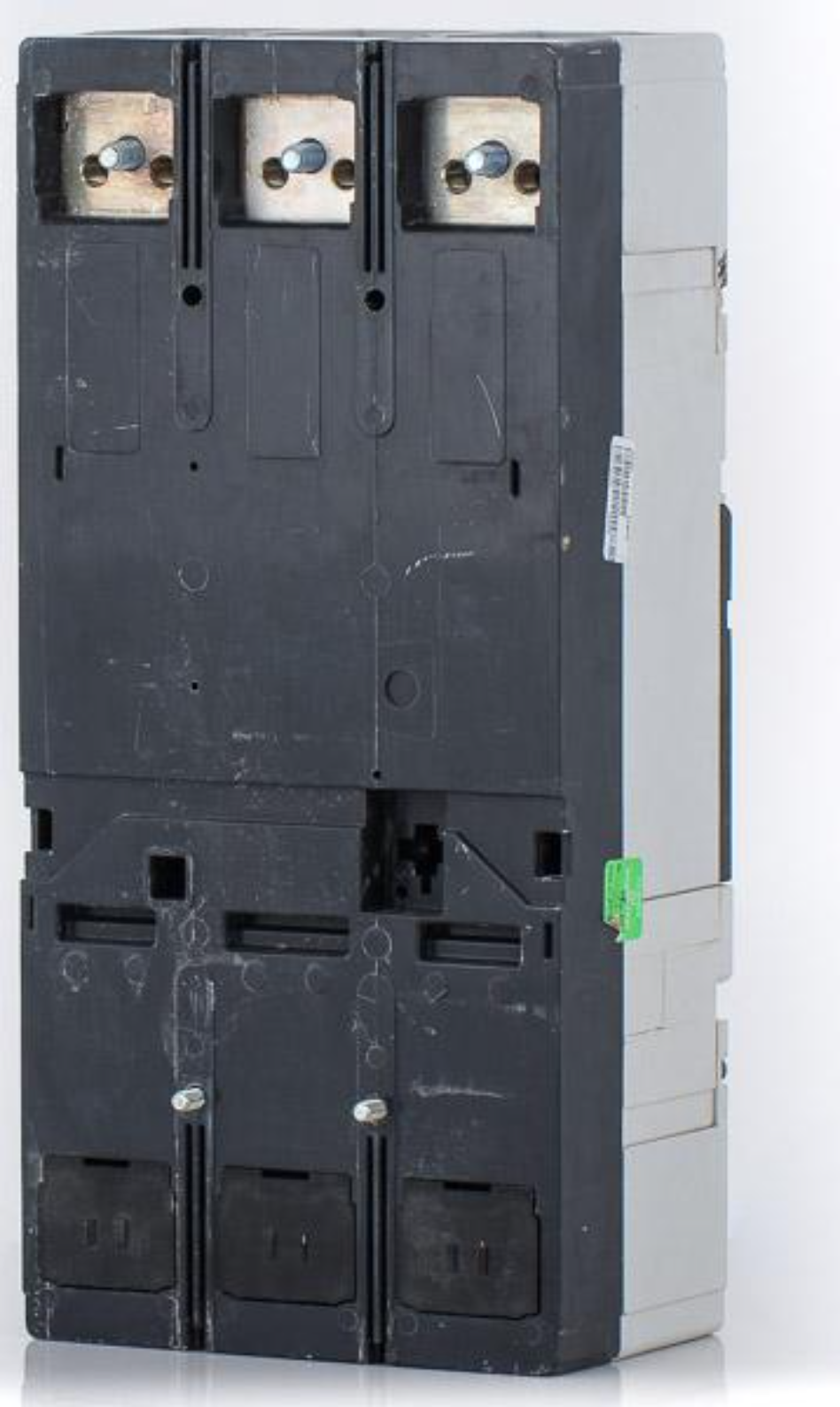

HMX3B800 | Siemens 800A 3-Pole 600V Molded Case Circuit Breaker, 65kA @ 480V, VL Series
- Regular price
- $8,999.00
- Sale price
- $8,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HMX3B800
Description
The Siemens HMX3B800 Molded Case Circuit Breaker provides reliable circuit protection for high-capacity electrical distribution systems. This 3-pole, 800-amp breaker operates at 600 volts AC with an interrupting capacity of 65kA at 480V. The HMX3B800 features a bolt-on connection and thermal magnetic trip unit, ensuring dependable overload and short-circuit protection in demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | HMX3B800 |
| Subcategory | Molded Case Circuit Breakers |
| Series | VL Series |
| Type | HMX |
| Frame Size | MG Frame |
| Poles | 3 |
| Amperage Rating | 800A |
| Voltage Rating | 600V AC |
| Interrupting Rating | 65kA @ 480V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Mounting Type | Panelboard |
| Phase | 3 |
| Temperature Rating | 40°C |
| Certifications | UL Listed |
| Standards Compliance | UL 489 |
| Terminal Connection | Load Side Lug |
| Country of Origin | Mexico |
| Weight | 40 lbs |
Information About HMX3B800
The HMX3B800 is part of Siemens’ VL Series, designed to deliver high-performance protection for large-scale electrical systems. It utilizes a bolt-on mounting configuration suitable for panelboard and switchgear installations. With a thermal magnetic trip mechanism, it combines long-time and instantaneous trip functionality to prevent equipment damage from electrical faults. Built for global use and tested to exceed UL endurance standards, the HMX3B800 offers robust performance and compatibility across a range of industrial and commercial environments.
Key Features:
- High Interrupting Capacity: Rated for 65kA at 480V to handle heavy-duty fault currents.
- Thermal Magnetic Protection: Combines overload and short-circuit protection in one compact unit.
- Bolt-On Design: Ensures secure mounting for stable electrical connections.
- 3-Pole, 800A Configuration: Ideal for high-current, three-phase systems up to 600V.
- VL Series Compatibility: Modular design supports system flexibility and accessory integration.
- UL Listed: Meets industry safety and reliability standards.
- Compact Construction: Saves panel space and simplifies system layout.
- Global Design: Supports worldwide applications with uniform footprint and performance.
The HMX3B800 delivers the reliability and precision required for high-capacity electrical protection in industrial power distribution systems.
