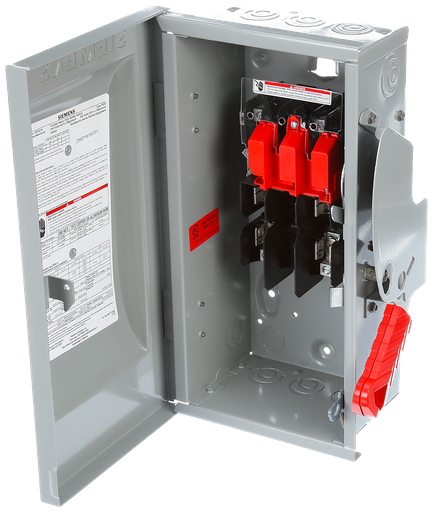

HNF364 | Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HNF364
Description
The Siemens HNF364 is a heavy-duty, non-fusible safety switch designed for reliable performance in industrial applications. It features a 3-pole, 3-wire configuration and is rated for 200 amperes at up to 600 volts AC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category |
Specialized Switches
|
| Part Number | HNF364 |
| Subcategory |
Safety Switches
|
| Voltage Rating | 600 VAC |
| Amperage Rating | 200 A |
| Horsepower | 150 HP |
| Phase | 3 |
| Frequency Rating | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Weight | 42.086 lb |
| Short Circuit Current Rating | 200 kA |
| Contact Form | TPST |
| Enclosure Type | NEMA 1 |
| Mounting Type | Surface |
| Terminal Type | Lug |
| Temperature Rating | -29 to 85°C |
| Dimensions | 29.9 in H x 15.39 in W x 12.33 in D |
| Material | Steel |
Information About HNF364
The Siemens HNF364 is a heavy-duty, non-fusible safety switch designed for industrial applications requiring reliable circuit protection and disconnection means. This switch is rated for 200 amperes and supports up to 600 volts AC and 250 volts DC. It features a 3-pole, 3-wire configuration and is housed in a NEMA 1 enclosure, making it suitable for indoor use.
Key Features:
-
Quick-Make, Quick-Break Mechanism: Ensures positive operation and enhances safety during switching operations.
-
Visible Blade, Double-Break Switching Action: Provides clear visual confirmation of switch position and improves durability.
-
High Short-Circuit Rating: Capable of withstanding short-circuit currents up to 200,000 A, ensuring robust protection in fault conditions.
-
Durable Construction: Built with a painted steel enclosure, the switch offers mechanical durability with a typical lifespan of 8,000 switching cycles.
-
Operating Temperature Range: Designed to operate effectively in temperatures ranging from -29°C to 85°C, suitable for various industrial environments.
These features make the Siemens HNF364 a reliable choice for heavy-duty industrial applications requiring safe and efficient electrical isolation and circuit protection.
