HOM115 | Schneider Electric Mini circuit breaker
- Regular price
- $44.00
- Sale price
- $44.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HOM115
Description

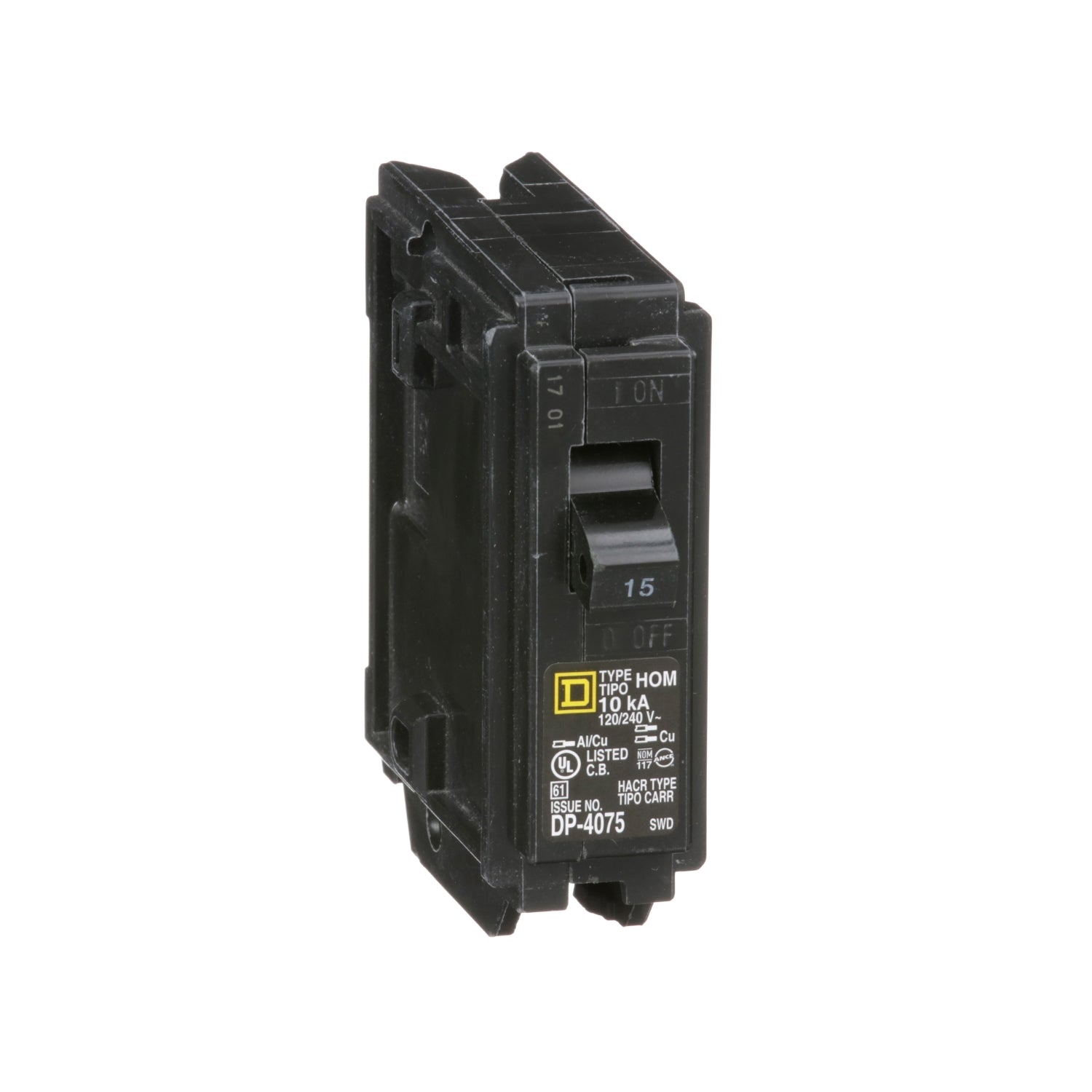

The HOM115 Mini Circuit Breaker belongs to the Homeline series, engineered for rapid installation and efficient circuit protection. Designed for compatibility with Homeline load centers, it offers standard circuit protection and carries an HACR rating.
This 1-pole circuit breaker features plug-in mounting and is rated at 15A for a system voltage of 120/240 VAC. It provides a breaking capacity of 10 kA, ensuring reliable protection against overloads and short circuits.
Featuring clamp terminals, this circuit breaker can accommodate two wires, accepting a wire range of 14 AWG to 8 AWG for both copper and aluminum wires. With dimensions of 3.13 inches in height, 1.0 inch in width, and 2.98 inches in depth, it offers a compact design suitable for various electrical installations.
Technical Specifications
|
Part # |
HOM115 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
15 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Clamp terminal for 2 cables Tightening torque 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
Information About HOM115
Homeline miniature circuit breakers, exemplified by the HOM115 model, are meticulously engineered and designed to facilitate swift installation while ensuring superior circuit protection. Specifically tailored to fit Homeline load centers, these circuit breakers seamlessly integrate to furnish reliable circuit safeguarding.
The HOM115 circuit breaker offers standard circuit protection and bears the coveted HACR rating, denoting its compliance with industry standards for heating, air conditioning, and refrigeration applications. It operates as a single-pole breaker with plug-in mounting, boasting a robust 15A rating at 120/240 VAC.
In terms of safety and reliability, HOM breakers feature an impressive 10 kA breaking capacity, effectively safeguarding electrical systems against short circuits and overloads. The electrical connection mechanism comprises clamp terminals capable of accommodating two wires simultaneously. These terminals support a wire range spanning from 14 AWG to 8 AWG, catering to both copper and aluminum conductors.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
