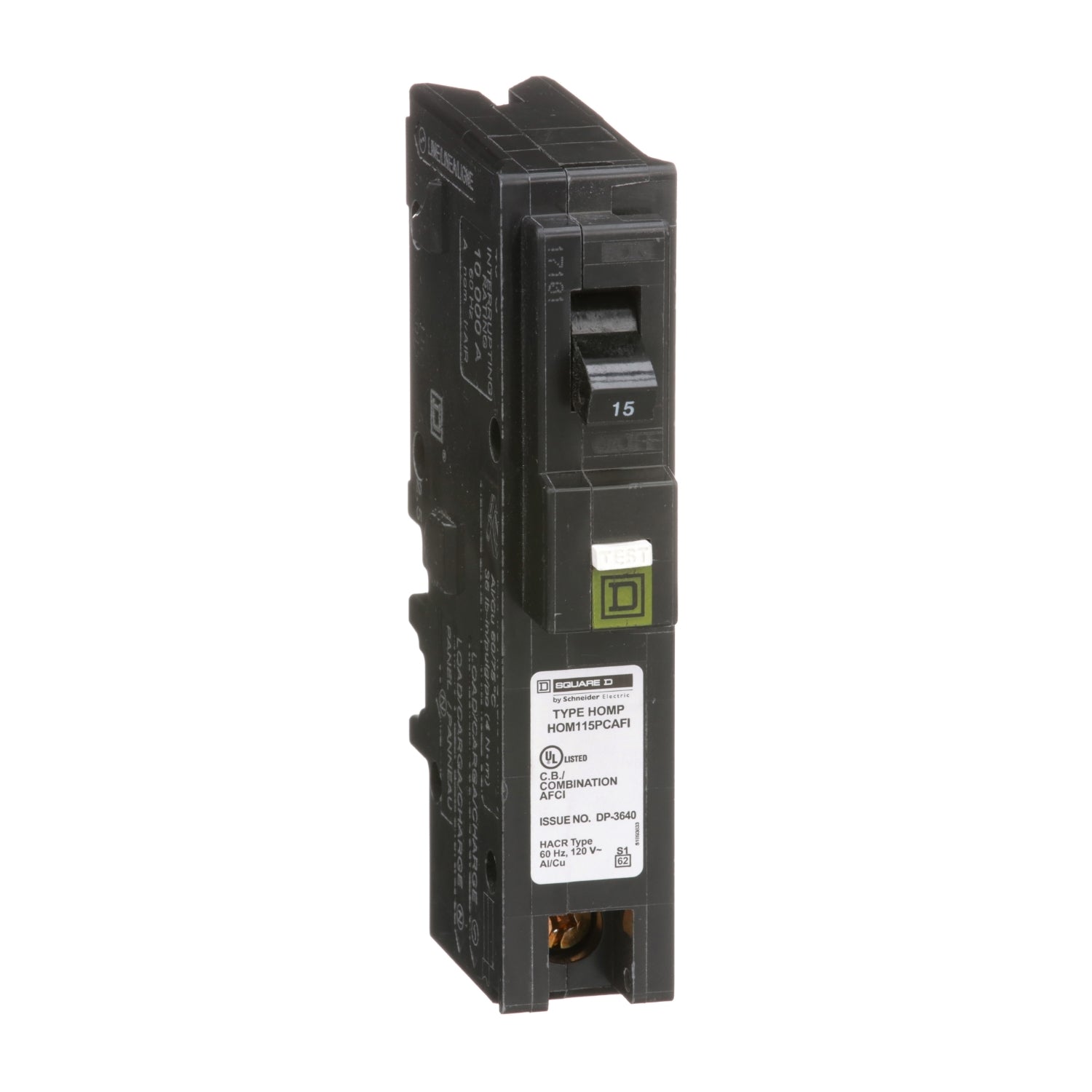

HOM115PCAFIC | Square D Homeline 15A 1-Pole Plug-On Neutral CAFCI Circuit Breaker
- Regular price
- $488.00
- Sale price
- $488.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM115PCAFIC
Description

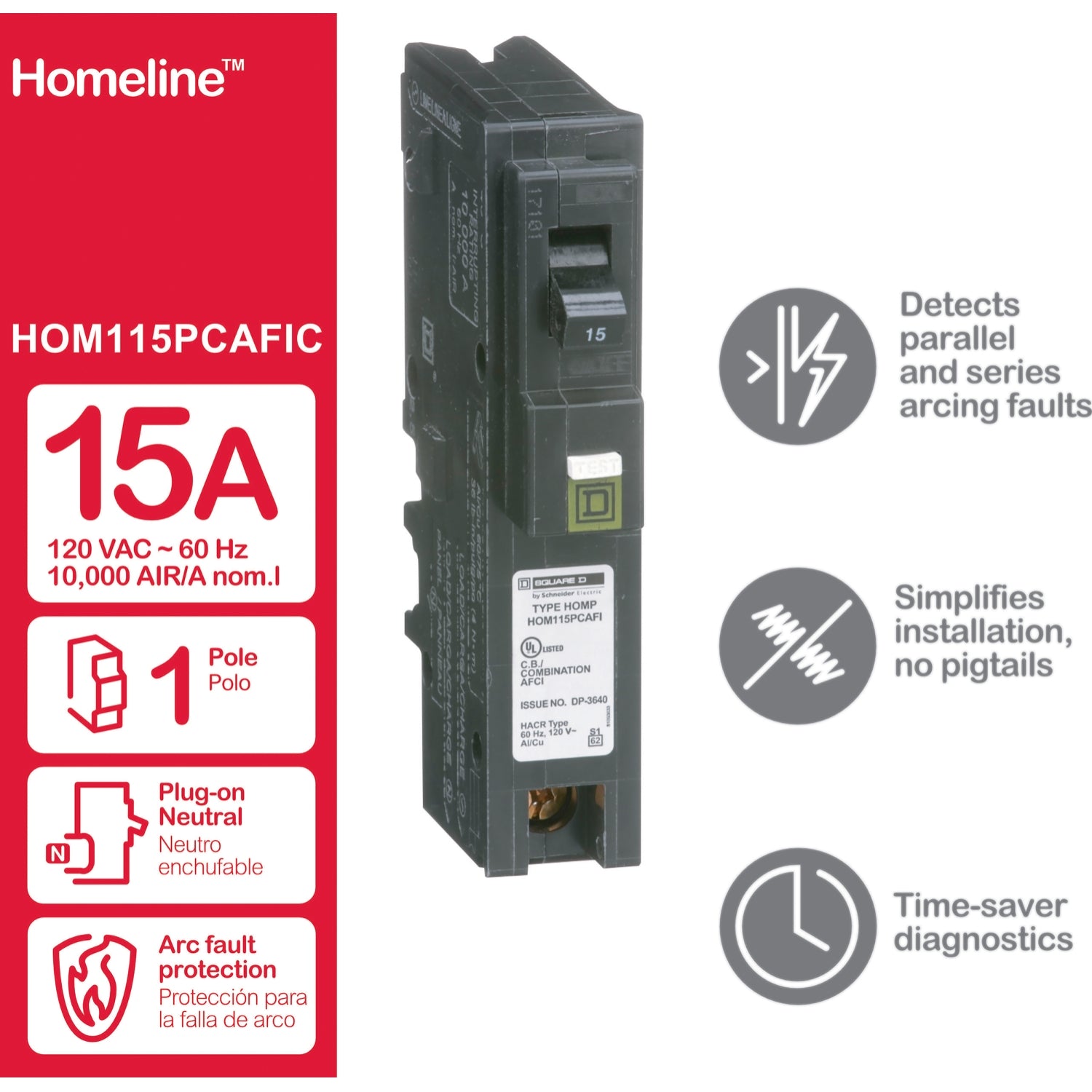

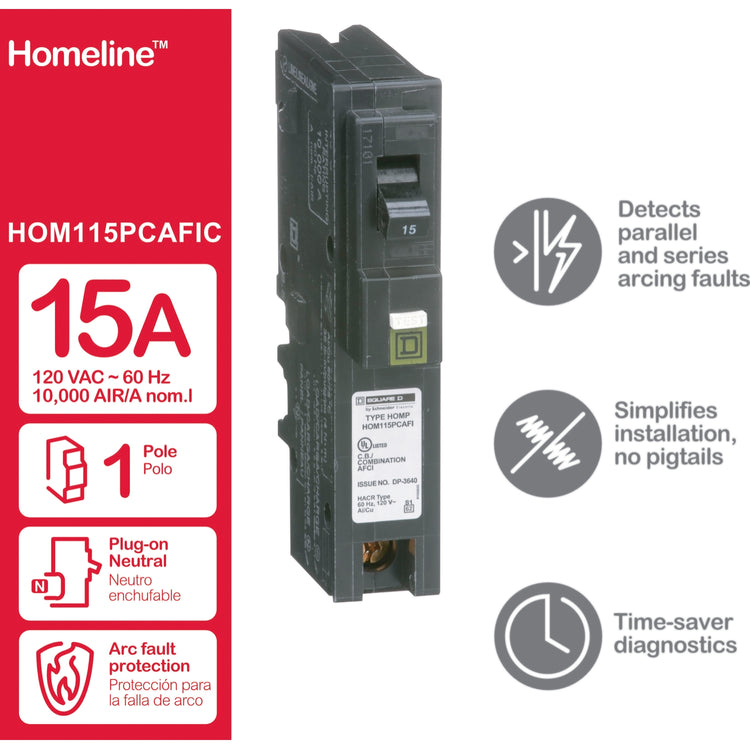

The Square D HOM115PCAFIC is a 1-pole miniature circuit breaker designed to provide combination arc fault, overload, and short-circuit protection in residential electrical systems. Rated at 15A and operating at 120VAC, the Square D HOM115PCAFIC is intended for use in Homeline load centers where plug-on neutral installation is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | HOM115PCAFIC |
| Subcategory | Miniature Circuit Breaker |
| Series | Homeline |
| Breaker Type | Combination Arc Fault Circuit Interrupter (CAFCI) |
| Current Rating | 15 Amps |
| Voltage Rating | 120 VAC |
| Poles | 1 |
| Interrupting Rating | 10 kA |
| Mounting Type | Plug-In |
| Neutral Connection | Plug-On Neutral |
| Electrical Connection | Screw Clamp Terminals |
| Wire Size | 14–8 AWG Copper or Aluminum |
| Certifications | UL Listed |

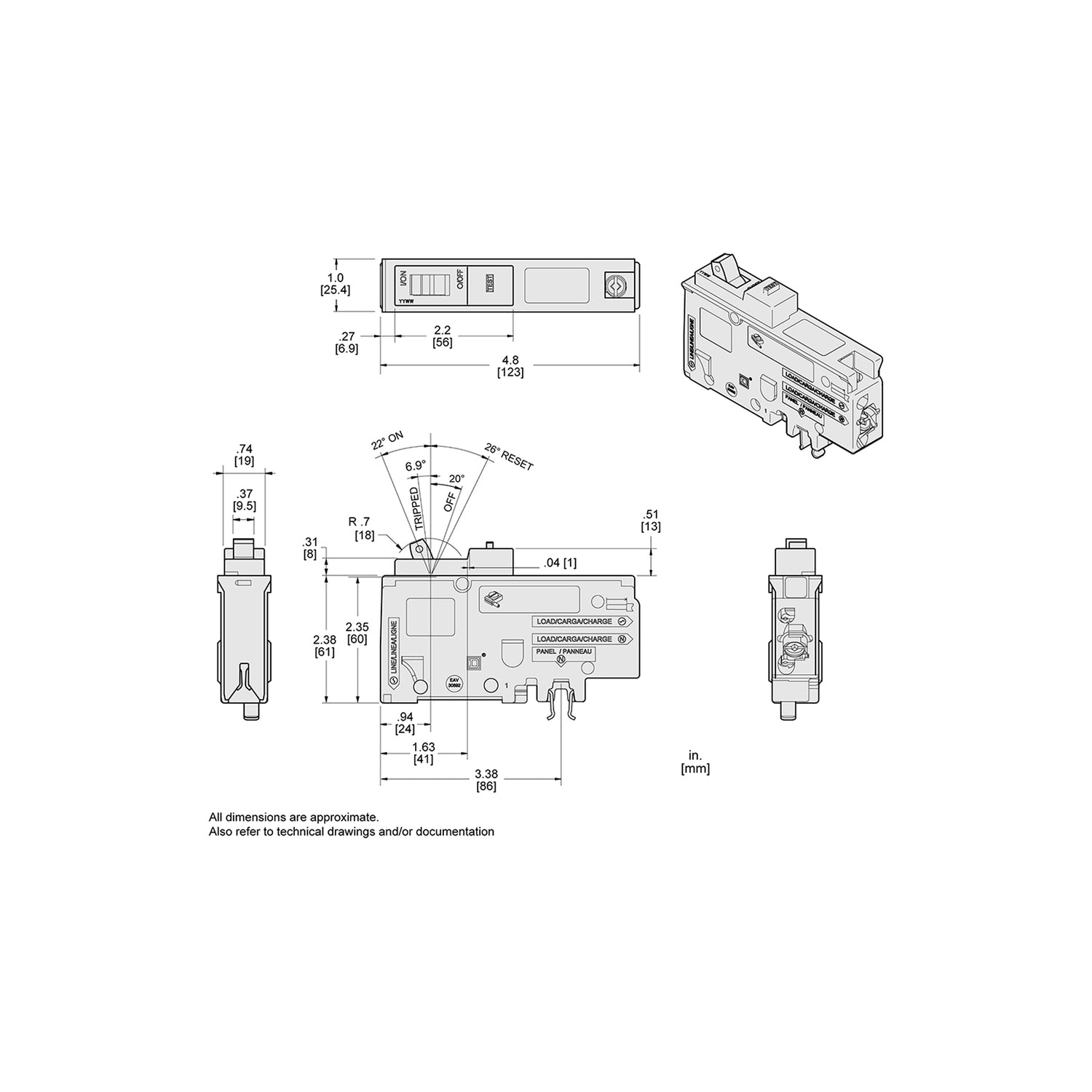

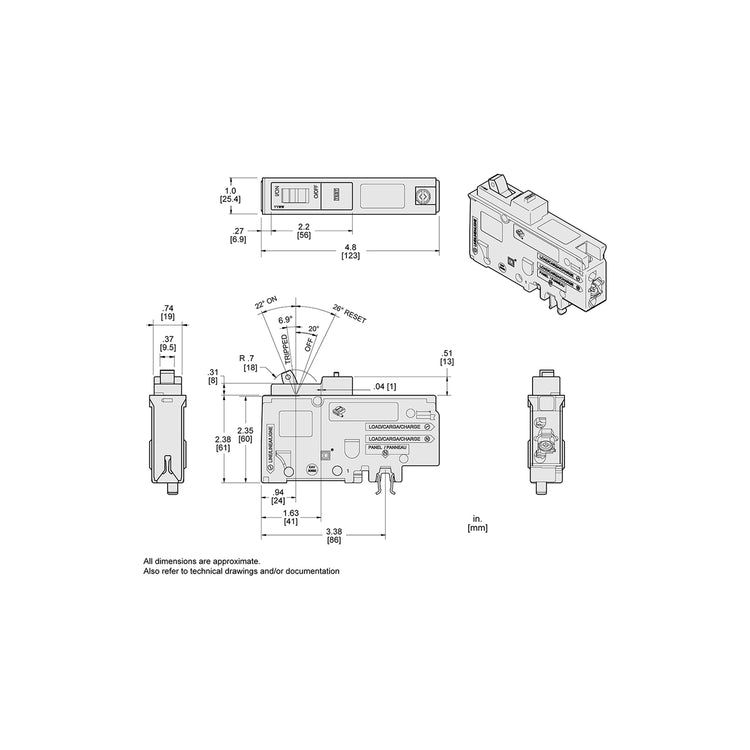

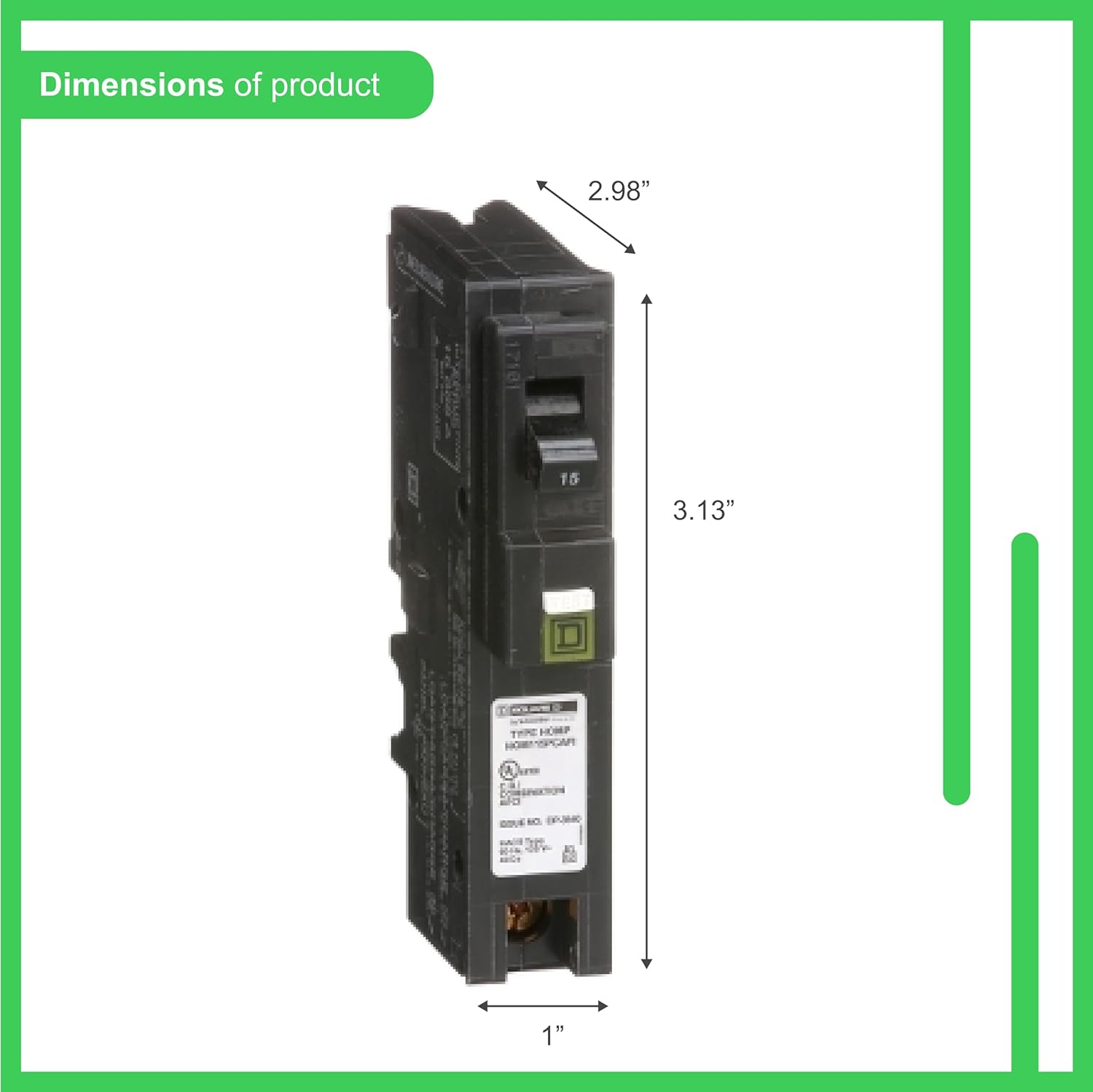

| Dimensions (HxWxD) | 3.13 x 1 x 2.98 in |
| Weight | 0.66 lb |
Information About HOM115PCAFIC

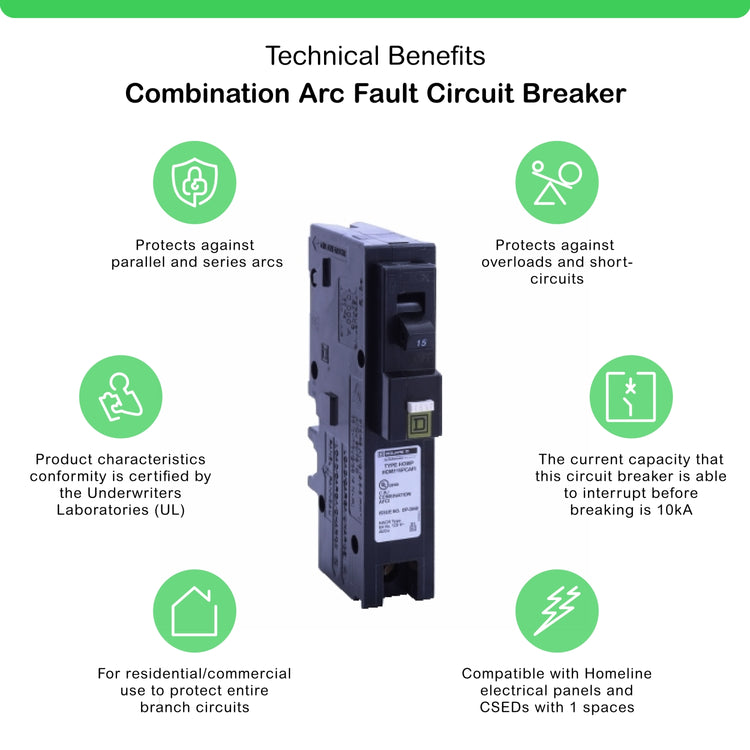

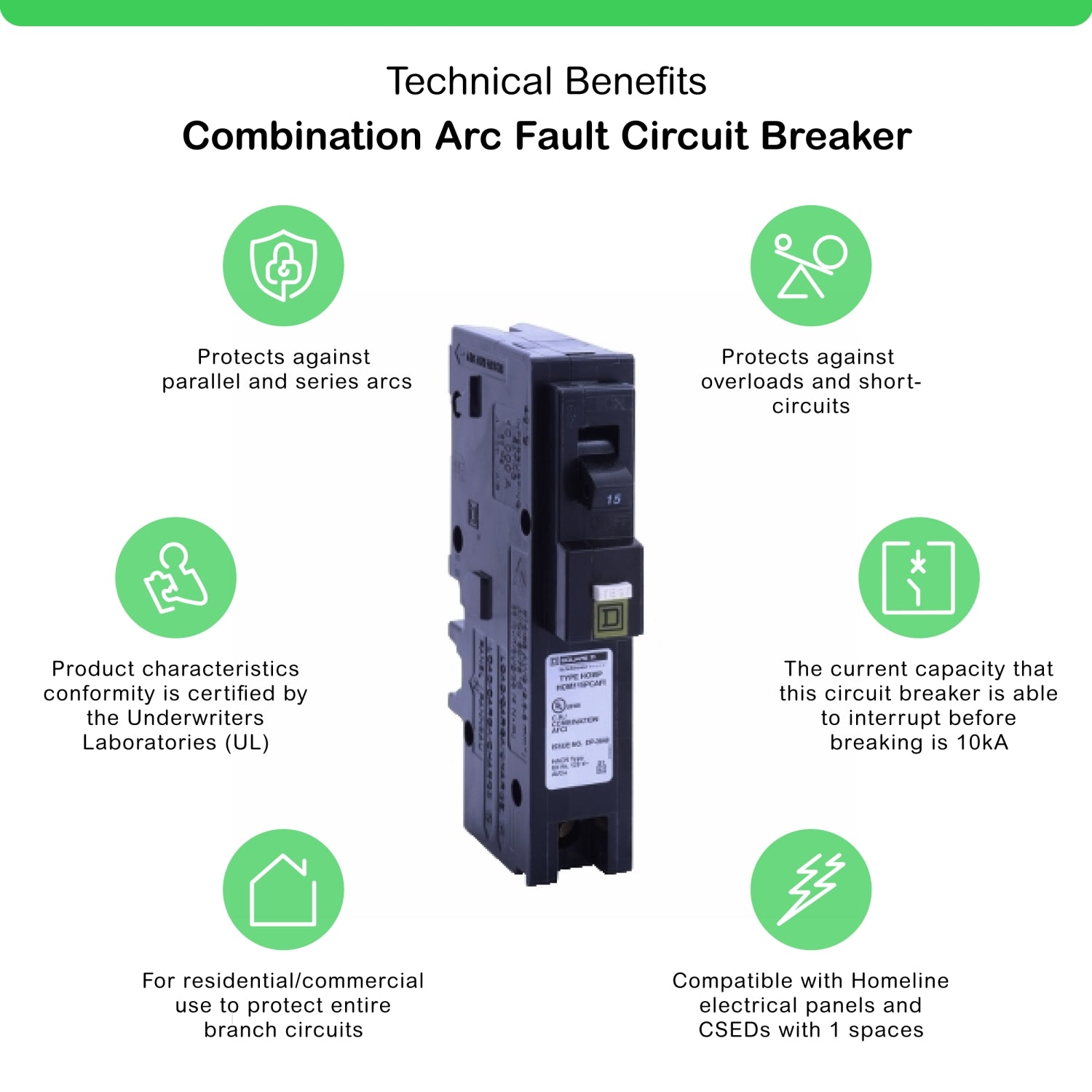

The HOM115PCAFIC is part of the Square D Homeline series, engineered for efficient installation and dependable branch circuit protection. It features a combination arc fault circuit interrupter (CAFCI) design that detects both series and parallel arc faults in compliance with NEC and UL1699 requirements. The breaker uses a plug-on neutral connection and plug-in mounting, eliminating the need for a neutral pigtail and reducing wiring complexity. Designed for residential applications, it supports copper or aluminum conductors and meets UL listing and HACR rating standards.
Key Features:
- Combination Arc Fault Protection: Detects and interrupts both series and parallel arc faults for enhanced circuit safety.
- 15 Amp Current Rating: Supports standard residential branch circuits such as lighting and receptacles.
- Plug-On Neutral Design: Simplifies installation and reduces wiring time by eliminating neutral pigtails.
- Plug-In Mounting: Designed specifically for compatibility with Square D Homeline load centers.
- 10 kA Interrupting Rating: Provides reliable fault interruption at rated short-circuit levels.
- Clamp Terminal Connection: Accepts two conductors with a wire range of 14 AWG to 8 AWG copper or aluminum.
- HACR Rated: Approved for heating, air conditioning, and refrigeration equipment circuits.
The HOM115PCAFIC delivers the reliability and precision required for residential branch circuit protection with advanced arc fault detection.
