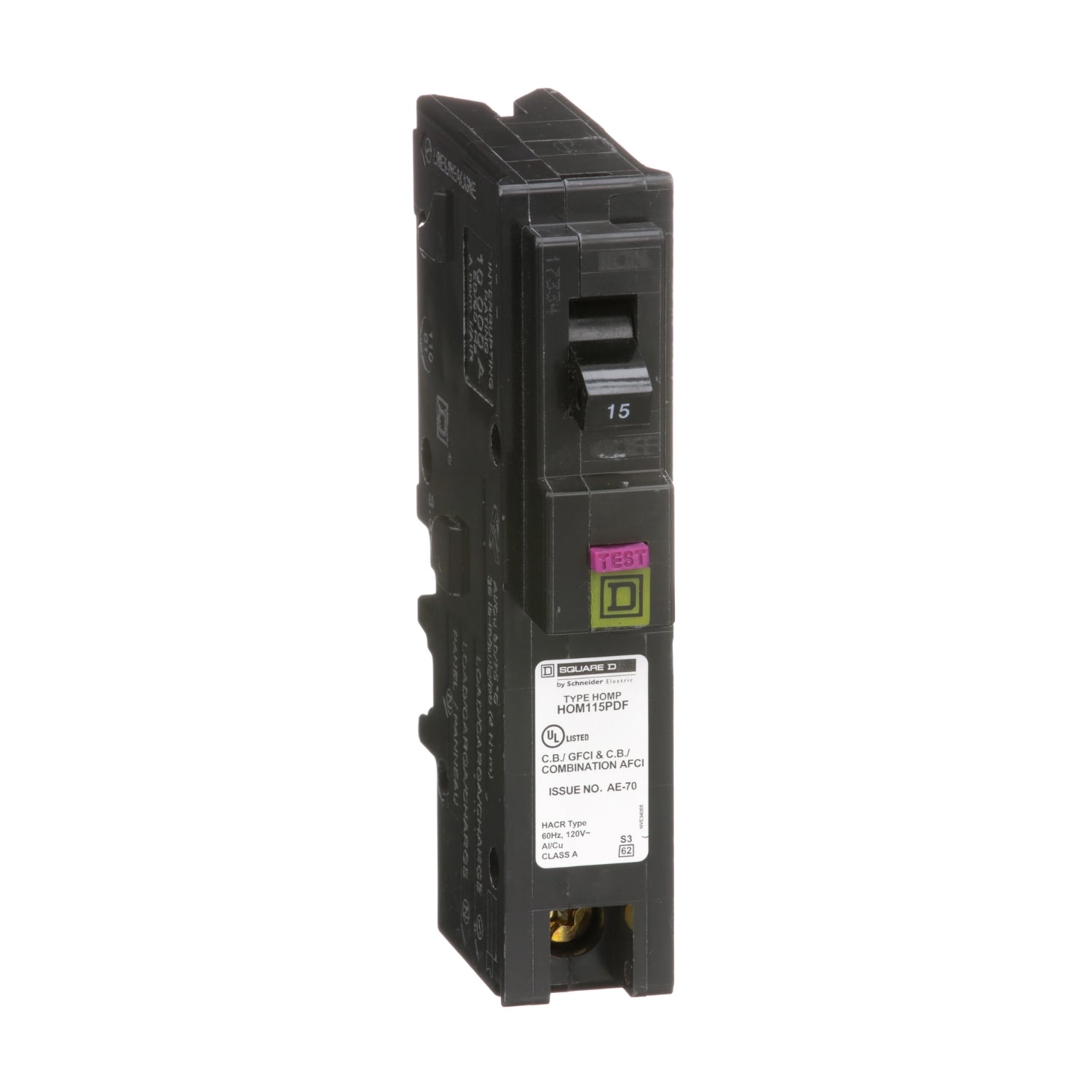

HOM115PDF | Schneider Electric Mini Circuit Breaker
- Regular price
- $74.00
- Sale price
- $74.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOM115PDF
Description
The HOM115PDF is a Mini Circuit Breaker from the Homeline series, engineered for swift installation and reliable circuit protection. Designed to plug into Homeline load centers, it offers standard circuit protection and is HACR rated. This 1-pole circuit breaker, with plug-in mounting, is rated at 15A for operation at 120VAC.
With a breaking capacity of 10kA, it ensures effective protection against overloads and short circuits. This dual-function circuit breaker combines arc fault and ground fault protection, meeting NEC, UL1699, and UL943 standards. It provides overload, short circuit, arc fault, and ground fault protection in a single device.
Technical Specifications
|
Part # |
HOM115PDF |
|
Category |
Circuit Breaker |
|
Subcategory |
Panel Mount Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
15 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Combination ARC-fault and ground fault class A 6 mA |
|
Ratings |
HACR rated |
|
Electrical Connection |
Screw clamp terminals |
|
Connections - Terminals |
Plug-on neutral |
|
Tightening torque |
35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
Information About HOM115PDF
Homeline miniature circuit breakers, exemplified by the HOM115PDF model, are meticulously engineered for rapid installation and robust circuit protection. These circuit breakers are tailored to seamlessly integrate with Homeline load centers, ensuring comprehensive circuit safeguarding.
Featuring HACR rating, this 1-pole circuit breaker, with plug-in mounting, delivers a steady 15A current at 120VAC, complemented by a substantial 10kA interrupting rating (AIR), ensuring reliable performance under varying load conditions.
The HOM115PDF embodies a distinctive dual-functionality, combining arc fault and ground fault circuit interrupters (AFCI/GFCI). This amalgamation provides enhanced protection against overload, short circuits, arc faults, and ground faults, conforming to the standards set by the NEC, UL1699, and UL943.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
