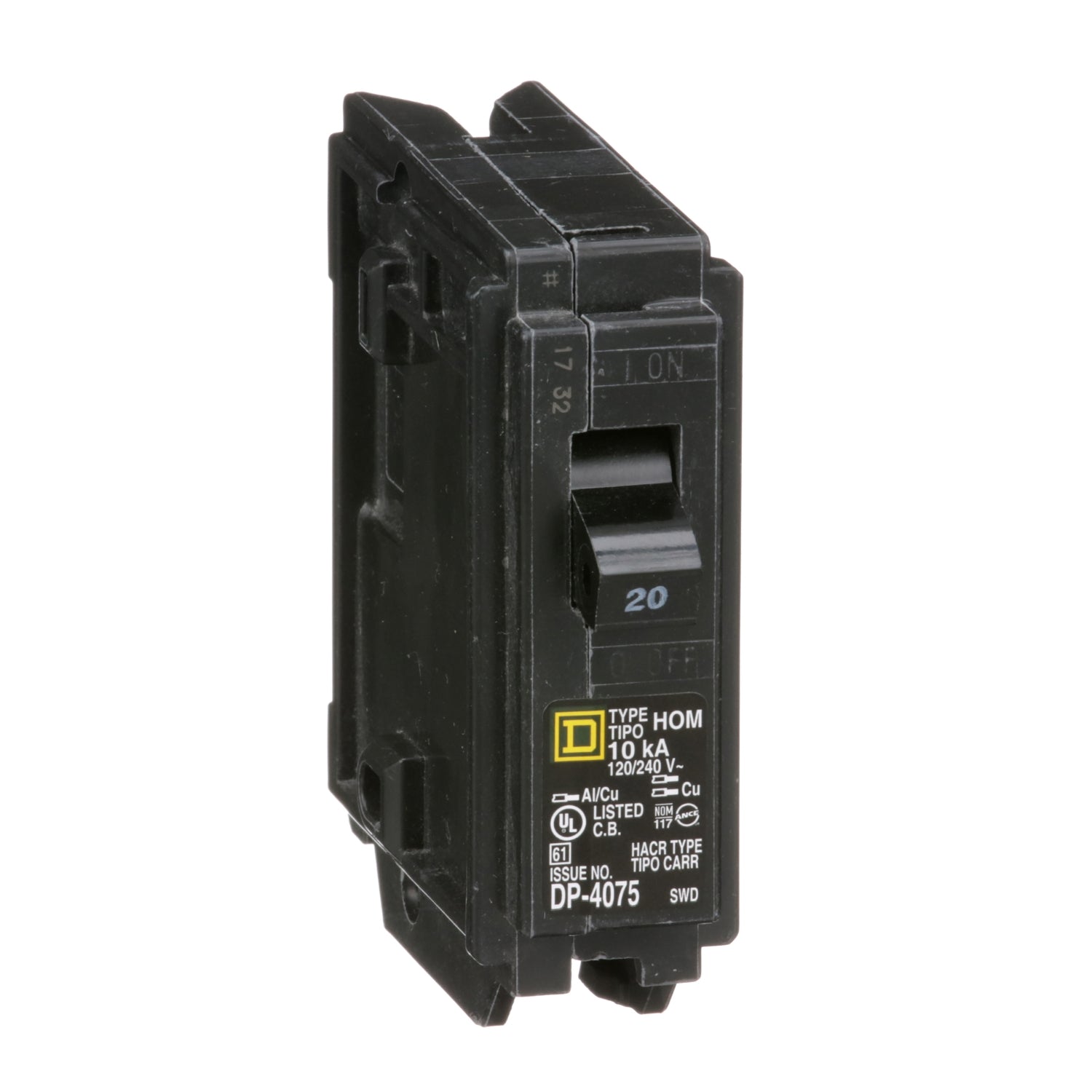

HOM120 | Schneider Electric Mini Circuit Breaker
HOM120 | Schneider Electric Mini Circuit Breaker
Part #: HOM120 Manufactured by: Schneider Electric

HOM120 | Schneider Electric Mini Circuit Breaker

Regular price
$52.00
Sale price
$52.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Homeline Mini Circuit Breaker is engineered to offer swift installation and exceptional circuit protection. Designed f...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: HOM120
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
HOM120 | Schneider Electric Mini Circuit Breaker
    HOM120 | Schneider Electric Mini Circuit Breaker
HOM120 | Schneider Electric Mini Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: HOM120

Description / Specifications

Description

The Homeline Miniature Circuit Breaker is designed to provide efficient circuit protection and easy installation. Specifically engineered for compatibility with Homeline load centers, these circuit breakers offer fast and straightforward plug-in installation.

This particular circuit breaker, featuring standard circuit protection, is HACR rated and provides a breaking capacity of 10 kA. It is a 1-pole breaker with plug-in mounting, rated at 20A and operating at 120/240VAC. The electrical connection utilizes a clamp terminal capable of accommodating two wires within a range of 14 AWG to 8 AWG copper or aluminum wire.



Technical Specifications

Part #

HOM120

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker Product

Range

Homeline

Current Rating

20 A

Certifications

UL Listed

Voltage Rating

120/240 V AC

Mounting Type

Plug-in

Number of Poles

1P

Short Circuit Current Rating

10 kA

Number of Spaces

1

Circuit Breaker Type

Standard Ratings

  Circuit Breaker Type

HACR and Switching Duty rated

Electrical Connection

Clamp terminal for 2 cables

Tightening torque

35.40 lbf.in (4.0 N.m)

  Tightening torque

0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)

Height

3.13 in (79.50 mm)

Width

1 in (25.40 mm)

Depth

2.98 in (75.69 mm)





Information About HOM120

Homeline miniature circuit breakers are meticulously engineered and designed to deliver swift installation and exceptional circuit protection. Specifically crafted to seamlessly integrate with Homeline load centers, these circuit breakers ensure reliable safeguarding of electrical systems.

This particular circuit breaker model, denoted as the HOM, offers standard circuit protection and holds a HACR rating, indicating its suitability for heating, air conditioning, and refrigeration applications. Operating as a 1-pole circuit breaker with plug-in mounting, it is rated at 20A and operates within the voltage range of 120/240 VAC. Notably, HOM breakers boast a breaking capacity of 10 kA, ensuring robust protection against short circuits.

For electrical connections, the HOM circuit breaker features a clamp terminal capable of accommodating two wires simultaneously. This terminal accepts a wire range spanning from 14 AWG to 8 AWG, encompassing both copper and aluminum wires, thereby providing versatility in wiring configurations.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Homeline Miniature Circuit Breaker is designed to provide efficient circuit protection and easy installation. Specifically engineered for compatibility with Homeline load centers, these circuit breakers offer fast and straightforward plug-in installation.

This particular circuit breaker, featuring standard circuit protection, is HACR rated and provides a breaking capacity of 10 kA. It is a 1-pole breaker with plug-in mounting, rated at 20A and operating at 120/240VAC. The electrical connection utilizes a clamp terminal capable of accommodating two wires within a range of 14 AWG to 8 AWG copper or aluminum wire.



Technical Specifications

Part #

HOM120

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker Product

Range

Homeline

Current Rating

20 A

Certifications

UL Listed

Voltage Rating

120/240 V AC

Mounting Type

Plug-in

Number of Poles

1P

Short Circuit Current Rating

10 kA

Number of Spaces

1

Circuit Breaker Type

Standard Ratings

  Circuit Breaker Type

HACR and Switching Duty rated

Electrical Connection

Clamp terminal for 2 cables

Tightening torque

35.40 lbf.in (4.0 N.m)

  Tightening torque

0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)

Height

3.13 in (79.50 mm)

Width

1 in (25.40 mm)

Depth

2.98 in (75.69 mm)





Information About HOM120

Homeline miniature circuit breakers are meticulously engineered and designed to deliver swift installation and exceptional circuit protection. Specifically crafted to seamlessly integrate with Homeline load centers, these circuit breakers ensure reliable safeguarding of electrical systems.

This particular circuit breaker model, denoted as the HOM, offers standard circuit protection and holds a HACR rating, indicating its suitability for heating, air conditioning, and refrigeration applications. Operating as a 1-pole circuit breaker with plug-in mounting, it is rated at 20A and operates within the voltage range of 120/240 VAC. Notably, HOM breakers boast a breaking capacity of 10 kA, ensuring robust protection against short circuits.

For electrical connections, the HOM circuit breaker features a clamp terminal capable of accommodating two wires simultaneously. This terminal accepts a wire range spanning from 14 AWG to 8 AWG, encompassing both copper and aluminum wires, thereby providing versatility in wiring configurations.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
