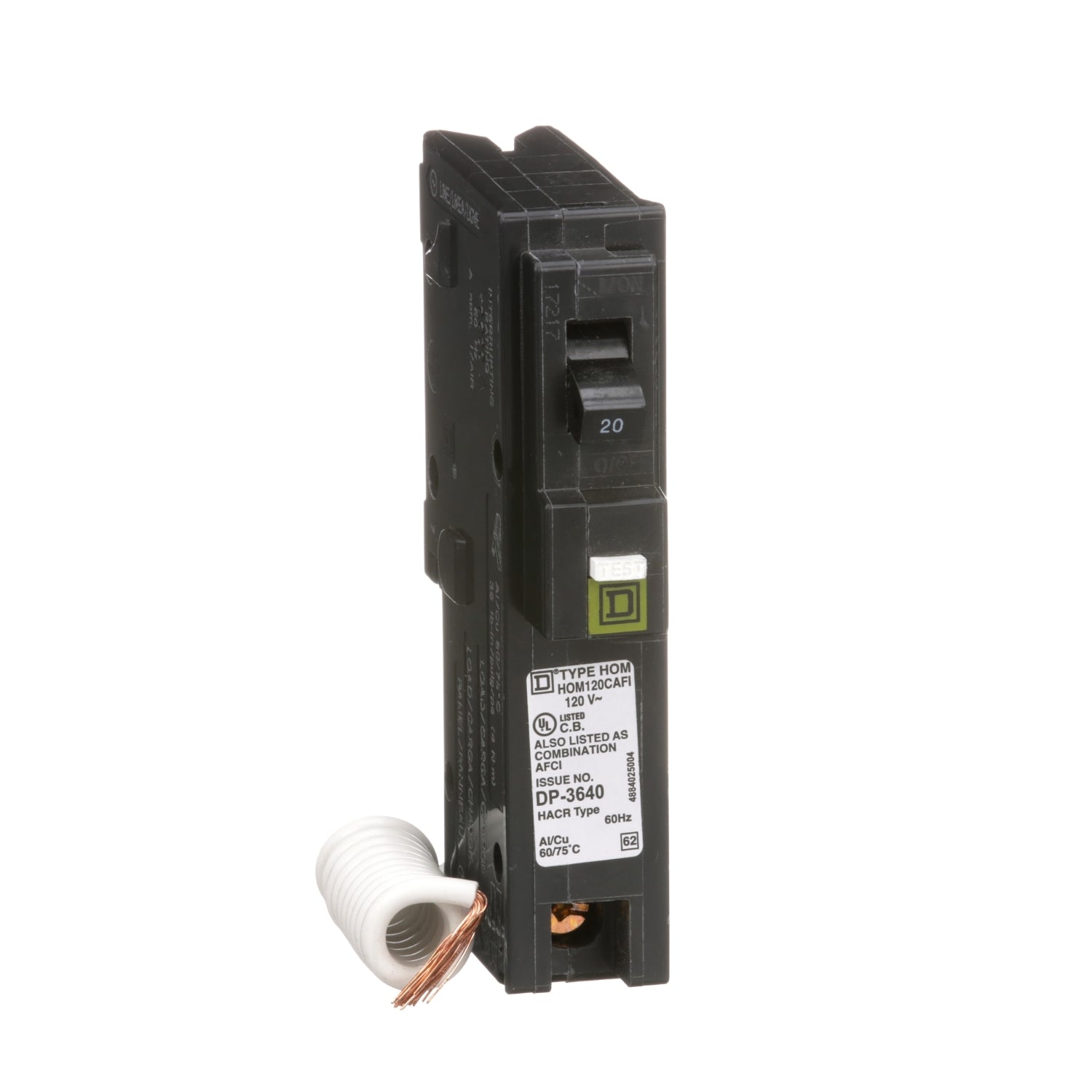

HOM120CAFI | Schneider Electric Homeline Combination AFCI Circuit Breaker 20A 1-Pole 120V Plug-In
- Regular price
- $65.00
- Sale price
- $65.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM120CAFI
Description
The Schneider Electric HOM120CAFI is a Homeline series miniature circuit breaker designed to provide reliable overload, short-circuit, and arc-fault protection. This 1-pole breaker is rated at 20 A and operates at 120 V AC with a 10 kA short-circuit current rating. The HOM120CAFI uses a plug-in mounting design for fast installation in compatible Homeline load centers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HOM120CAFI |
| Subcategory | Load Center Circuit Breaker |
| Series / Range | Homeline |
| Circuit Breaker Type | Combination AFCI |
| Current Rating | 20 A |
| Voltage Rating | 120 V AC |
| Number of Poles | 1P |
| Short-Circuit Current Rating | 10 kA |
| Number of Spaces | 1 |
| Mounting Type | Plug-In |
| Certifications | UL Listed |
| Ratings | HACR Rated |
| Electrical Connection | Screw Clamp Terminals |
| Neutral Connection | Pigtail Neutral |
| Wire Size Range | AWG 14 to AWG 8 (Al/Cu) |
| Tightening Torque | 35.40 lbf·in (4.0 N·m) |
| Height | 3.13 in (79.50 mm) |
| Width | 1 in (25.40 mm) |
| Depth | 2.98 in (75.69 mm) |
Information About HOM120CAFI
The HOM120CAFI is part of Schneider Electric’s Homeline family, engineered for residential electrical systems requiring enhanced protection and easy installation. It integrates combination arc-fault circuit interrupter technology to address parallel and series arcing conditions in addition to standard overload and short-circuit protection. The breaker is designed specifically for Homeline load centers and features a plug-in format with a pigtail neutral for straightforward wiring. Its construction meets UL and NEC requirements for arc-fault protection in modern electrical installations.
Key Features:
- Homeline Series Design: Engineered exclusively for Schneider Electric Homeline load centers to ensure proper fit and compatibility.
- Combination AFCI Protection: Provides protection against overloads, short circuits, and arc-fault conditions in accordance with UL 1699 standards.
- 20 Amp Current Rating: Supports common residential branch circuit applications.
- Single-Pole Configuration: Designed for 120 V single-phase circuits requiring dedicated arc-fault protection.
- Plug-In Mounting: Allows quick installation without additional mounting hardware.
- Pigtail Neutral Connection: Simplifies wiring and ensures reliable neutral termination.
- HACR Rated Construction: Suitable for heating, air conditioning, and refrigeration equipment circuits.
The HOM120CAFI delivers the reliability and precision required for comprehensive branch circuit protection in Schneider Electric Homeline residential electrical systems.
