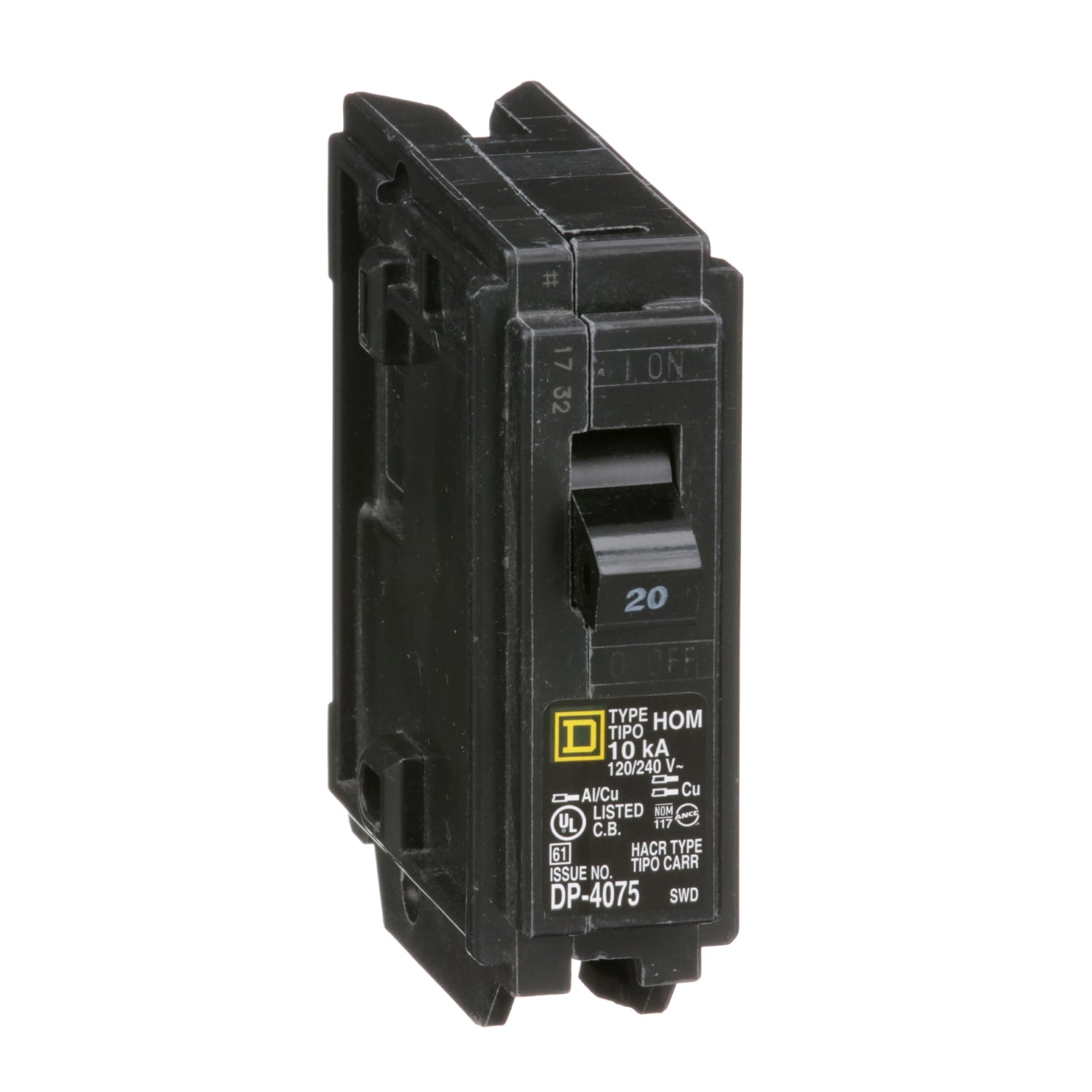

HOM120CP | Square D Homeline 20A Single-Pole Plug-In Load Center Circuit Breaker
- Regular price
- $29.00
- Sale price
- $29.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM120CP
Description
The Square D HOM120CP by Schneider Electric is a Homeline series miniature circuit breaker designed for dependable overcurrent protection in residential and light commercial electrical systems. This 20A, single-pole breaker operates at 120/240VAC and features a plug-in mounting design for fast installation in compatible Homeline load centers. It is HACR and switching duty rated, ensuring compliance with HVAC and refrigeration circuit requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HOM120CP |
| Subcategory | Load Center Circuit Breaker |
| Product Type | Miniature Circuit Breaker |
| Series / Range | Homeline |
| Current Rating | 20 A |
| Voltage Rating | 120/240 V AC |
| Number of Poles | 1P |
| Mounting Type | Plug-In |
| Short-Circuit Rating | 10 kA |
| Number of Panel Spaces | 1 |
| Circuit Breaker Type | Standard |
| Ratings | HACR, Switching Duty |
| Electrical Connection | Clamp Terminal (2 Cables) |
| Compatible Wire Size | 1× AWG 14–8 Al/Cu, 2× AWG 14–10 Cu |
| Certifications | UL Listed |
Information About HOM120CP
The HOM120CP is part of Square D’s Homeline family of load center circuit breakers, engineered for standardized installation and consistent electrical protection. The Homeline series features compact construction and clamp-style terminals to support secure conductor connections. This breaker is designed to integrate seamlessly with Homeline panels, enabling straightforward replacement and system expansion. Typical usage includes branch circuit protection for lighting, receptacles, and HVAC equipment in residential and light commercial installations.
Key Features:
- Homeline series compatibility: Designed exclusively for Square D Homeline load centers.
- 20 amp current rating: Suitable for standard branch circuit applications.
- Single-pole configuration: Intended for single-phase circuit protection.
- Plug-in mounting design: Enables quick installation and replacement.
- 10 kA interrupting capacity: Provides effective short-circuit protection.
- HACR rated: Approved for heating, air conditioning, and refrigeration circuits.
- Clamp-style terminals: Support secure wiring for copper and aluminum conductors.
The HOM120CP delivers the reliability and precision required for residential and light commercial branch circuit protection.
