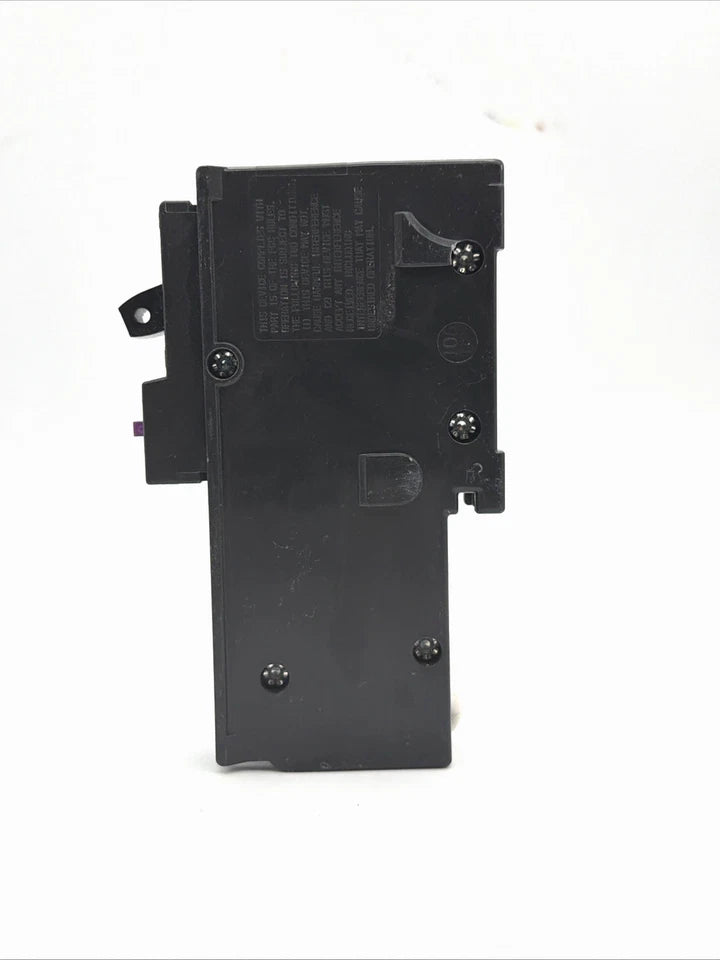

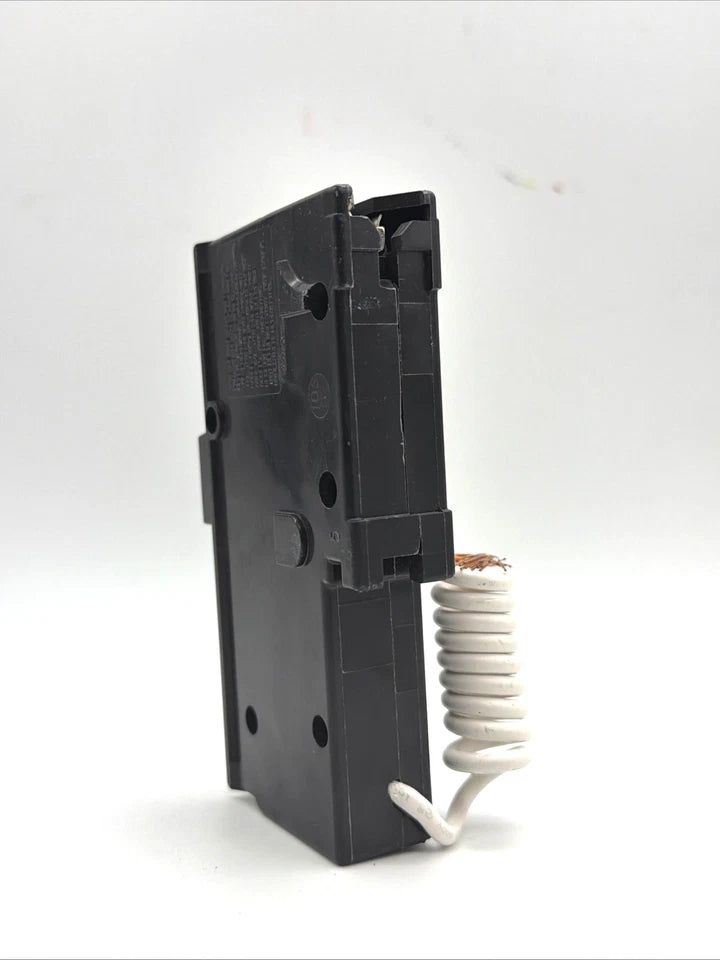

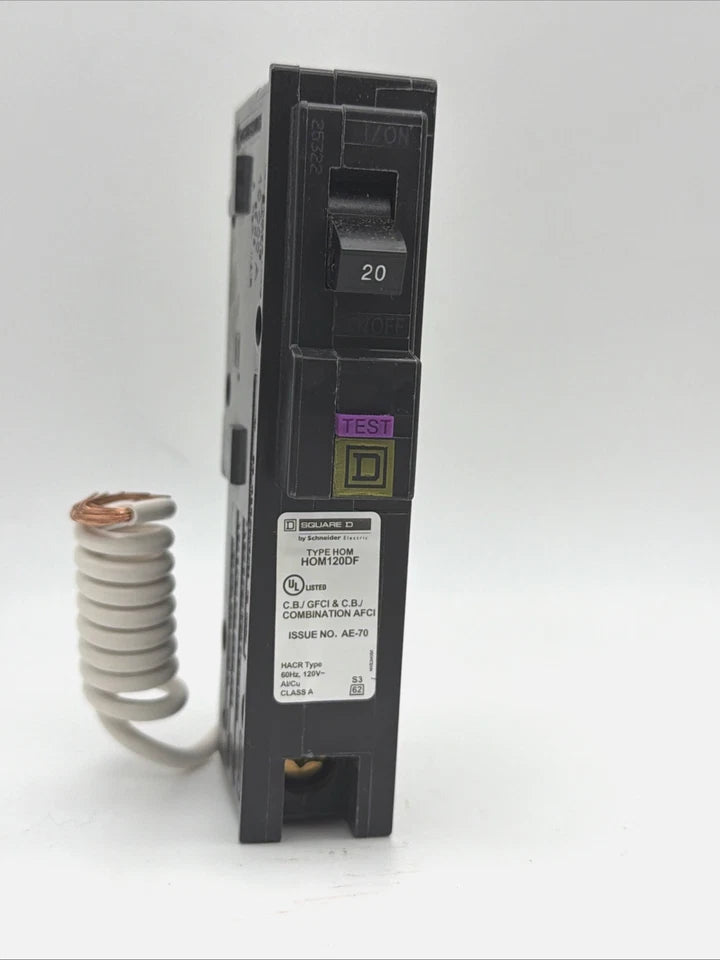

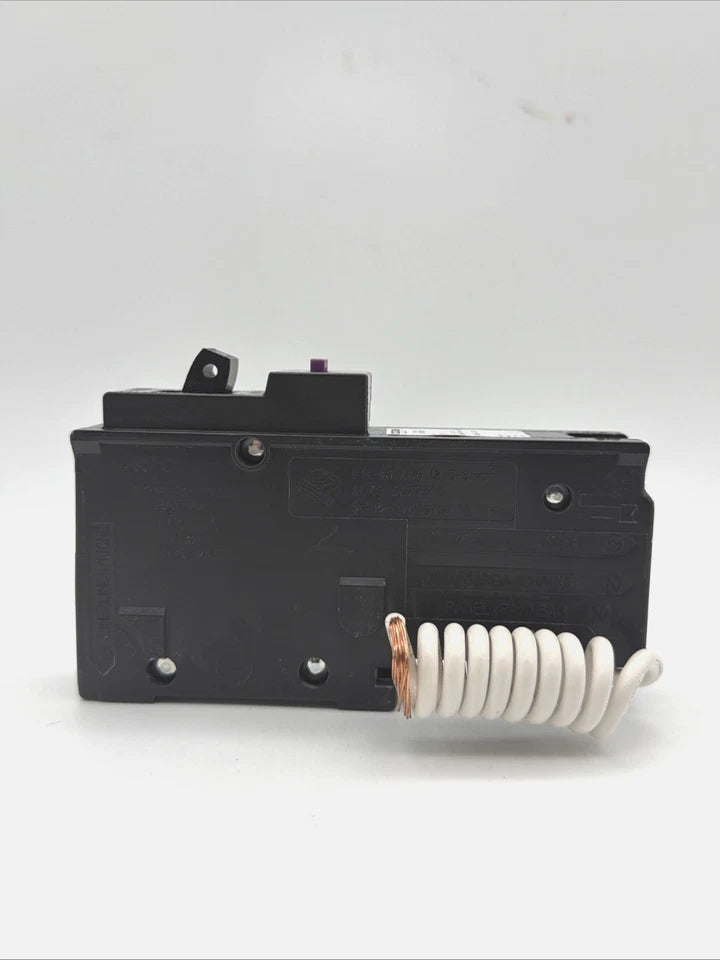

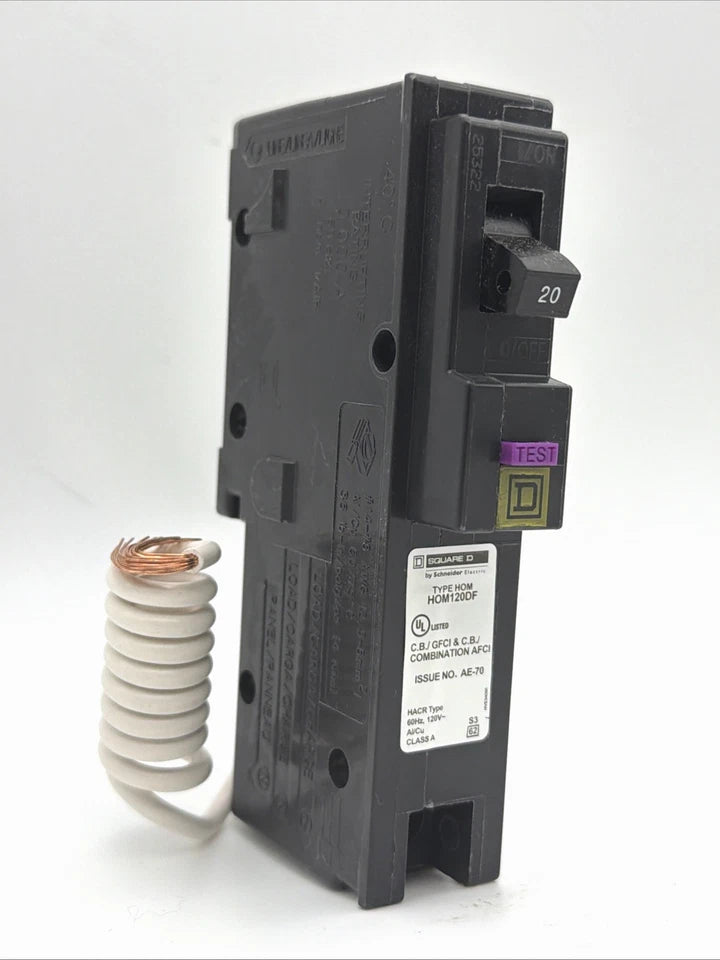

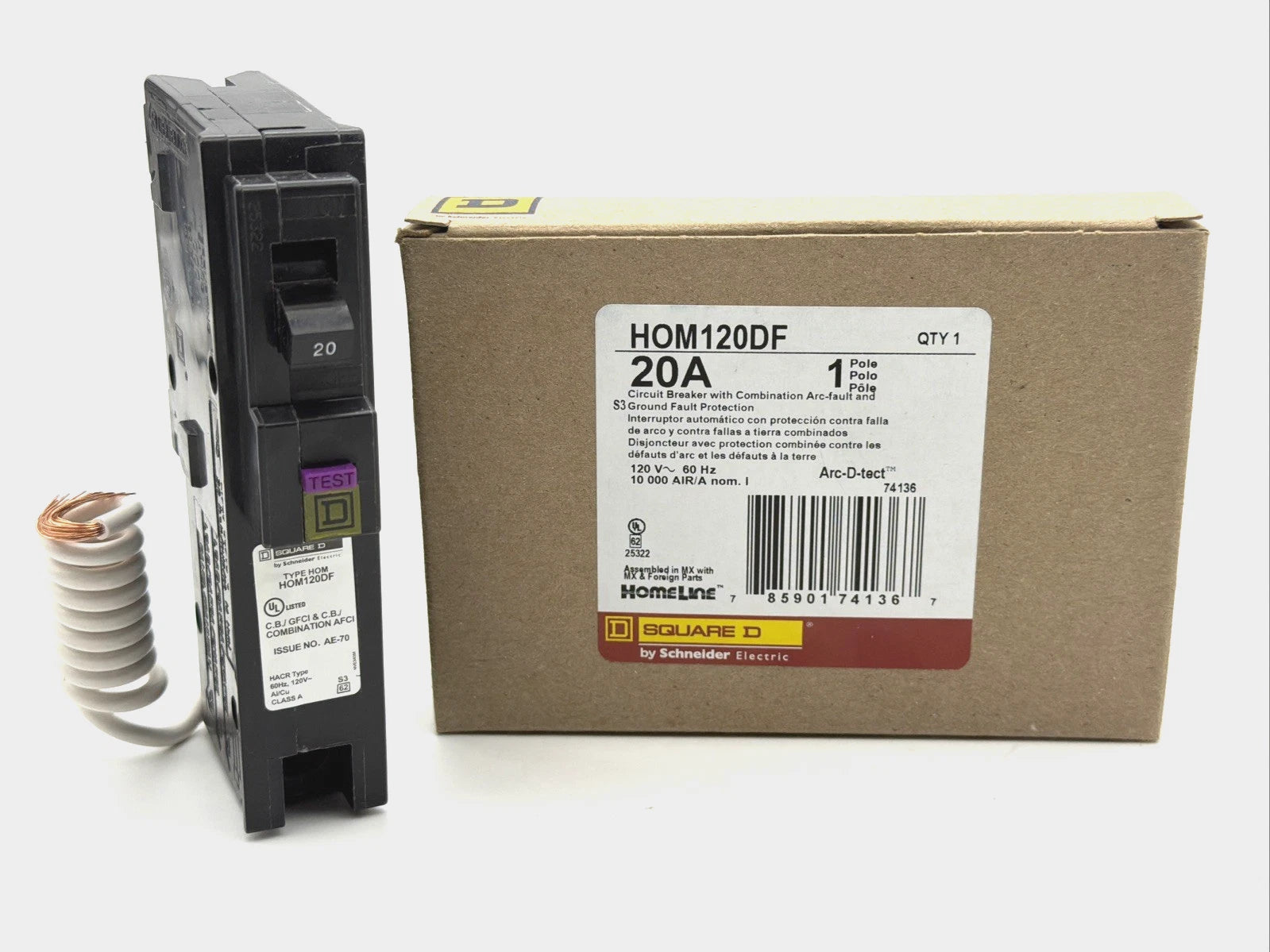

HOM120DF | Schneider Electric Homeline 20A 1-Pole Dual Function AFCI/GFCI Circuit Breaker 120V
- Regular price
- $75.00
- Sale price
- $75.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM120DF
Description
The Schneider Electric HOM120DF is a Homeline series miniature circuit breaker designed to provide combined arc fault and ground fault protection. This 1-pole breaker is rated at 20 A and operates at 120 V AC with a 10 kA interrupting capacity. It integrates overload, short-circuit, arc fault, and Class A ground fault protection in a single plug-in device.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HOM120DF |
| Subcategory | Panel Mount Circuit Breaker |
| Series / Range | Homeline |
| Breaker Type | Miniature circuit breaker |
| Current Rating | 20 A |
| Voltage Rating | 120 V AC |
| Number of Poles | 1 |
| Mounting Type | Plug-in |
| Short Circuit Current Rating | 10 kA |
| Circuit Protection Type | Combination AFCI and GFCI Class A (6 mA) |
| Number of Spaces Required | 1 |
| HACR Rated | Yes |
| Certifications | UL Listed |

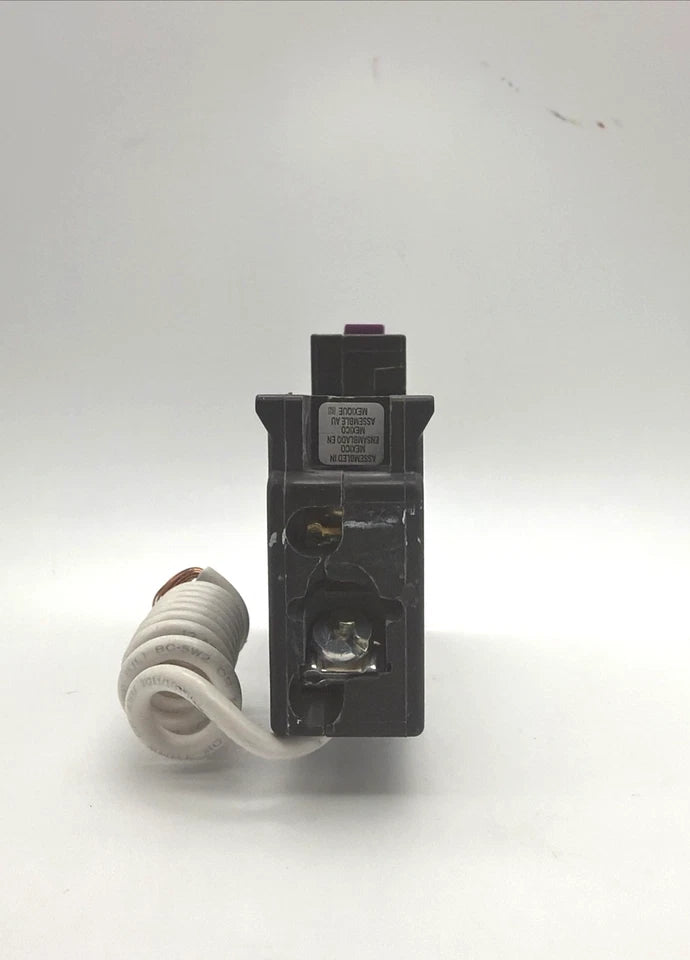

| Electrical Connection | Clamp terminal for two conductors |

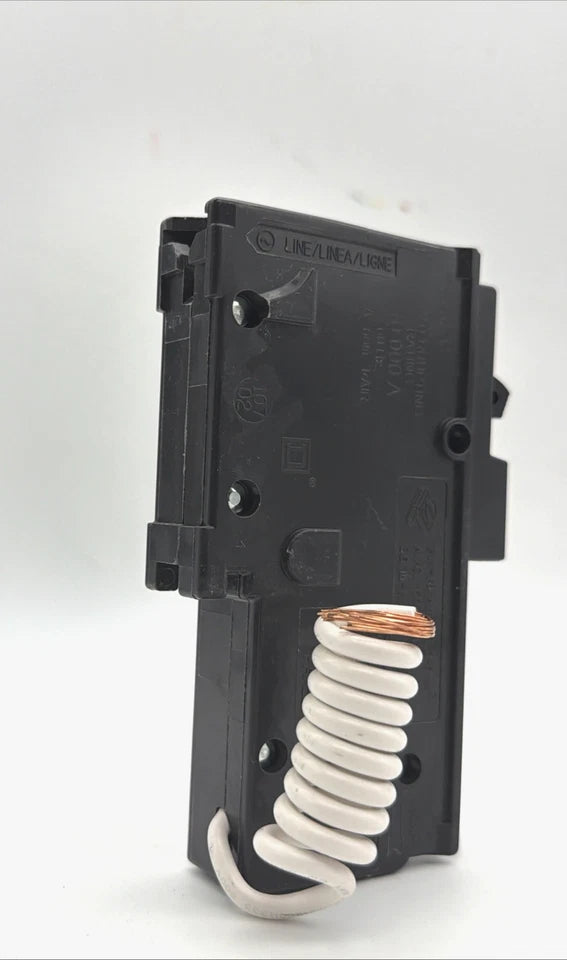

| Neutral Connection | Pigtail neutral |
| Tightening Torque | 35.40 lbf·in (4.0 N·m) |
| Wire Range | AWG 14–8 (2.5–6 mm²) |
| Height | 3.13 in (79.50 mm) |
| Width | 1.0 in (25.40 mm) |
| Depth | 2.98 in (75.69 mm) |
Information About HOM120DF
The HOM120DF is a Schneider Electric Homeline dual-function circuit breaker developed for modern residential electrical systems. It is engineered to plug directly into Homeline load centers while maintaining a compact, space-efficient form factor. The breaker combines arc fault detection in compliance with UL1699 and Class A ground fault protection in accordance with UL943 standards. It is commonly used in residential branch circuits where NEC requirements call for both AFCI and GFCI protection in a single device.
Key Features
- Homeline Series Compatibility: Designed specifically for Schneider Electric Homeline load centers to ensure proper fit and reliable operation.
- Dual Function Protection: Integrates arc fault and Class A ground fault protection to enhance personnel and fire safety.
- 20 Amp Branch Circuit Rating: Supports standard residential circuits requiring combined AFCI and GFCI protection.
- 10 kA Interrupting Capacity: Provides effective short-circuit protection for residential electrical systems.
- Plug-In Installation: Enables fast, secure mounting without additional hardware.
- Clamp Terminal Design: Accepts two conductors and supports wire sizes from AWG 14 to AWG 8.
- HACR Rated Construction: Approved for heating, air conditioning, and refrigeration circuit applications.
The HOM120DF delivers the reliability and precision required for comprehensive branch circuit protection in Schneider Electric Homeline residential electrical distribution systems.
