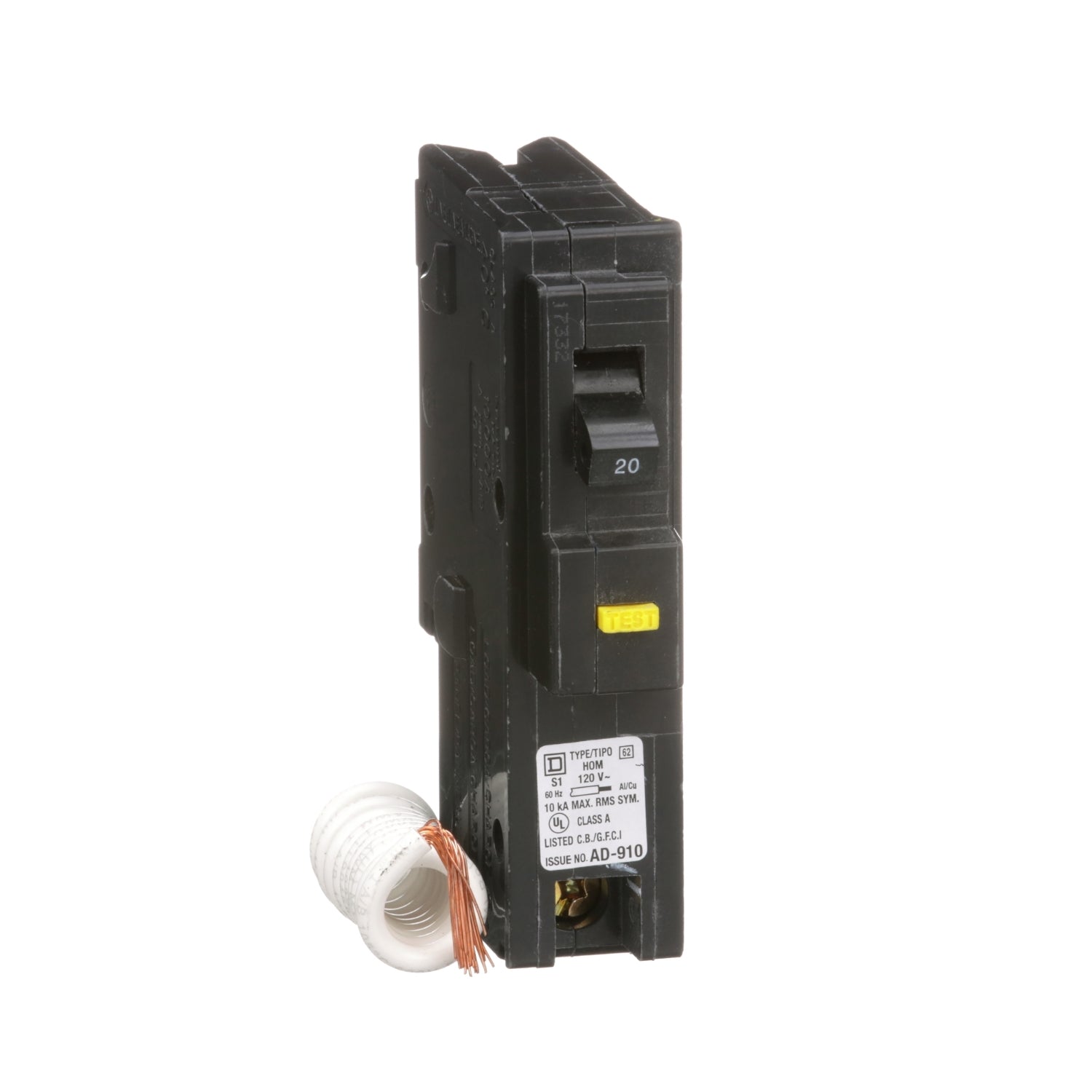

HOM120GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $84.00
- Sale price
- $84.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOM120GFI
Description
The HOM120GFI is a Mini Circuit Breaker from the Homeline series, manufactured for efficient installation and superior circuit protection. Designed to be compatible with Homeline load centers, these circuit breakers offer standard circuit protection. This 1-pole circuit breaker features plug-in mounting and is rated for 20A at 120VAC. With a breaking capacity of 10kA, it ensures reliable performance under various load conditions.
This Homeline circuit breaker is equipped with ground fault protection, classified as Class A, which trips when a fault current to ground exceeds 6 milliamperes. The electrical connection utilizes clamp terminals capable of accepting 2 wires within the range of 14 AWG to 8 AWG copper or aluminum wire.
Technical Specifications
|
Part # |
HOM120GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center Circuit Breaker Product |
|
|
Miniature Circuit Breaker |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Ground Fault Protecting Class A 6 mA |
|
Electrical Connection |
Screw Clamp Terminals |
|
Wire Size |
1 x AWG 14...AWG 10 (Aluminium/Copper) |
Information About HOM120GFI
The HOM120GFI is a miniature circuit breaker belonging to the Homeline series, engineered for rapid installation and effective circuit protection. Specifically designed to integrate with Homeline load centers, these circuit breakers ensure standard circuit protection. Rated for 20A at 120VAC, this 1-pole circuit breaker features plug-in mounting for convenient setup.
With a breaking capacity of 10kA, the HOM120GFI offers reliable protection against overloads and short circuits. It also incorporates ground fault protection, classified as Class A, which triggers when a fault current to ground exceeds 6 milliamperes.
The electrical connection utilizes clamp terminals capable of accepting 2 wires within the range of 14 AWG to 8 AWG copper or aluminum wire. With dimensions measuring 3.13 inches in height, 1.0 inch in width, and 2.98 inches in depth, this circuit breaker is compact yet robust.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
