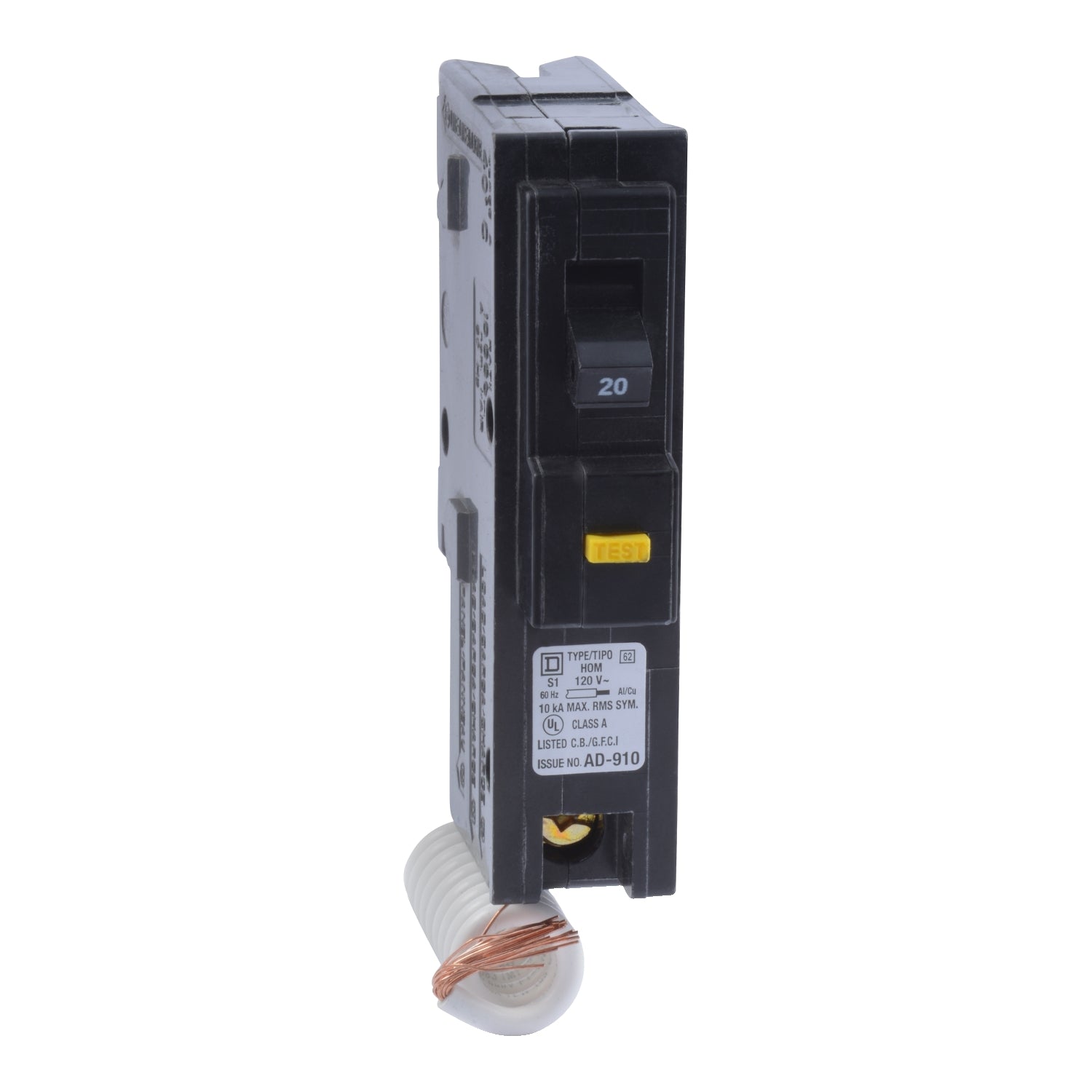

HOM120GFICP | Schneider Electric Mini Circuit Breaker
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HOM120GFICP
Description
The HOM120GFICP is a 20A, 1-pole miniature circuit breaker from the Square D™ Homeline™ series. Designed for use with Homeline load centers, these circuit breakers feature a 1-inch wide format. They offer overload and short circuit protection, along with Class A ground fault protection. The HOM-GFI circuit breakers are UL listed for safety and compliance.
Technical Specifications
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
|
Ratings |
HACR rated |
|
Electrical Connection |
Screw clamp terminals |
|
Wire Size |
1 x AWG 14...AWG 10 (aluminium/copper) |
|
Type of Packing |
Consumer packaging |
|
Tightening Torque |
36.29 lbf.in (4.1 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
|
Net Weight |
0.66 lb(US) (0.30 kg) |
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
Information About HOM120GFICP
The HOM120GFICP is a Mini Circuit Breaker belonging to the Homeline series by Square D™. It is designed as a 1-pole circuit breaker, featuring a compact 1-inch wide format. These miniature circuit breakers are specifically engineered to be compatible with Homeline load centers.
One of the key features of the HOM120GFICP is its ground fault protection capability, classified as Class A. This feature ensures protection against both overload and short circuits, enhancing safety in electrical systems. Additionally, the circuit breaker is UL listed, indicating compliance with safety standards set by Underwriters Laboratories.
With a current rating of 20A and a voltage rating of 120VAC, the HOM120GFICP is suitable for various residential and commercial applications where reliable circuit protection is essential. It provides the necessary safeguards to prevent damage to electrical equipment and ensure the integrity of the electrical system.
The integration of ground fault protection adds an extra layer of safety, particularly in environments where moisture or other potential hazards may increase the risk of electrical faults. This ensures that the circuit breaker meets the highest standards of safety and reliability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
