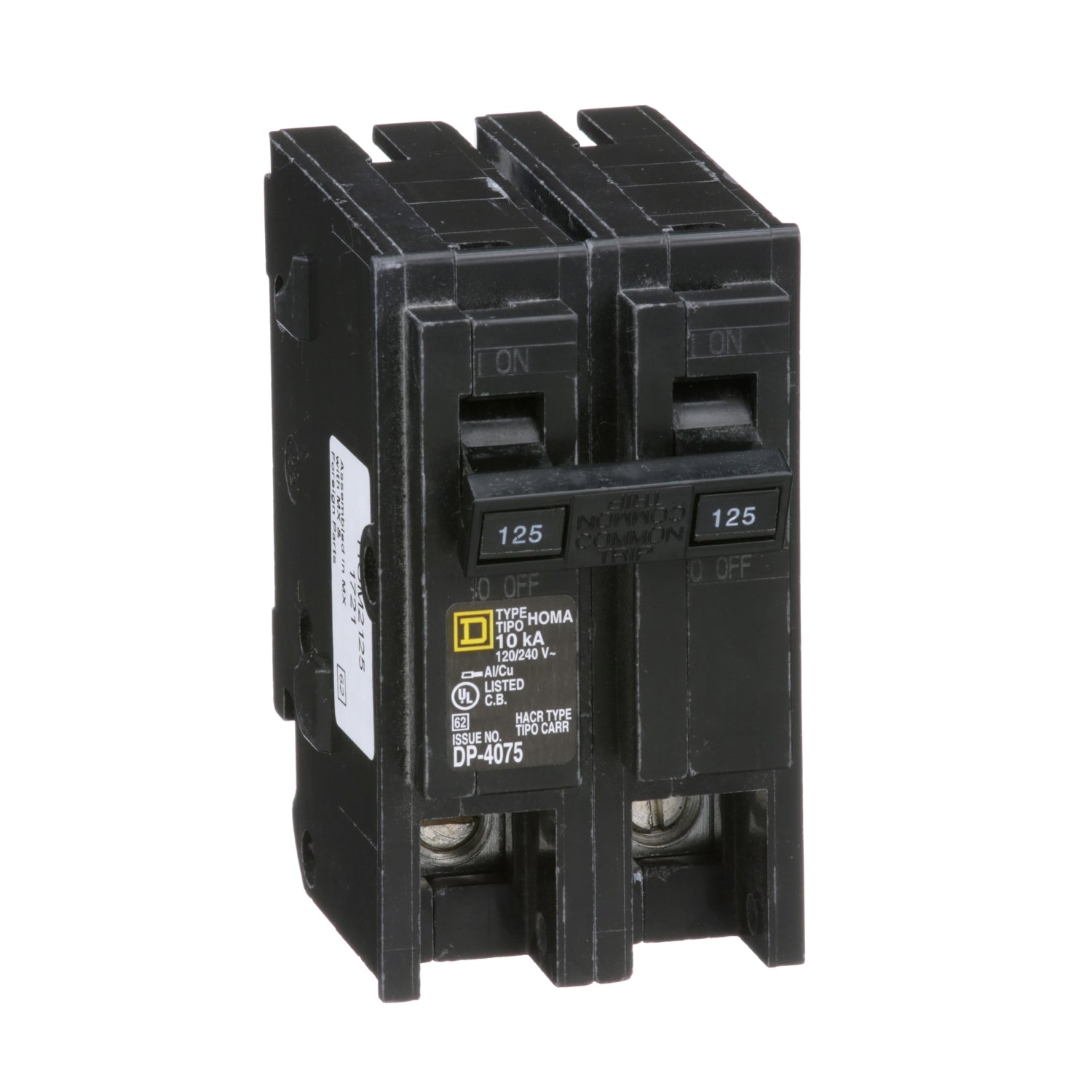

HOM2125 | Schneider Electric Mini Circuit Breaker
- Regular price
- $147.00
- Sale price
- $147.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: HOM2125
Description
The HOM2125 is a 2-pole Homeline miniature circuit breaker designed for efficient installation and robust circuit protection. Engineered for use in Homeline load centers, it offers standard circuit protection and holds an HACR rating. Operating at 125A with a voltage rating of 120/240V AC, this circuit breaker features plug-in mounting for straightforward deployment.
It provides a breaking capacity of 10 kA, ensuring reliable performance in safeguarding electrical circuits. The electrical connections utilize box lugs capable of accommodating 4 AWG to 2/0 AWG copper or aluminum wires, facilitating secure connections.
Technical Specifications
|
Part # |
HOM2125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product Range |
Homeline |
|
Current Rating |
125 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
2 |
|
Circuit Breaker Type |
Miniature |
|
Tightening Torque |
42.48 lbf.in (4.8 N.m) (AWG 4...2/0 kcmil) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
2 in (50.80 mm) |
|
Depth |
2.98 in (75.69 mm) |
Information About HOM2125
The HOM2125 Mini Circuit Breaker from Homeline is engineered to offer efficient installation and robust circuit protection. Designed specifically for Homeline load centers, these circuit breakers ensure reliable protection for electrical circuits.
This 2-pole circuit breaker features plug-in mounting and is rated for 125A at 120/240 VAC, making it suitable for a variety of residential and commercial applications. It provides standard circuit protection and is HACR rated, meeting industry standards for reliable performance.
The electrical connections utilize box lugs capable of accepting wires ranging from 4 AWG to 2/0 AWG in both copper and aluminum. This flexibility in wire size accommodates different installation needs while maintaining secure connections.
Physically, the HOM2125 breaker measures 3.13 inches in height, 2.0 inches in width, and 2.98 inches in depth. These dimensions ensure compatibility with Homeline load centers and facilitate easy installation and replacement.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
