HOM215GFI | Schneider Electric Mini Circuit Breaker
- Regular price
- $140.00
- Sale price
- $140.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOM215GFI
Description

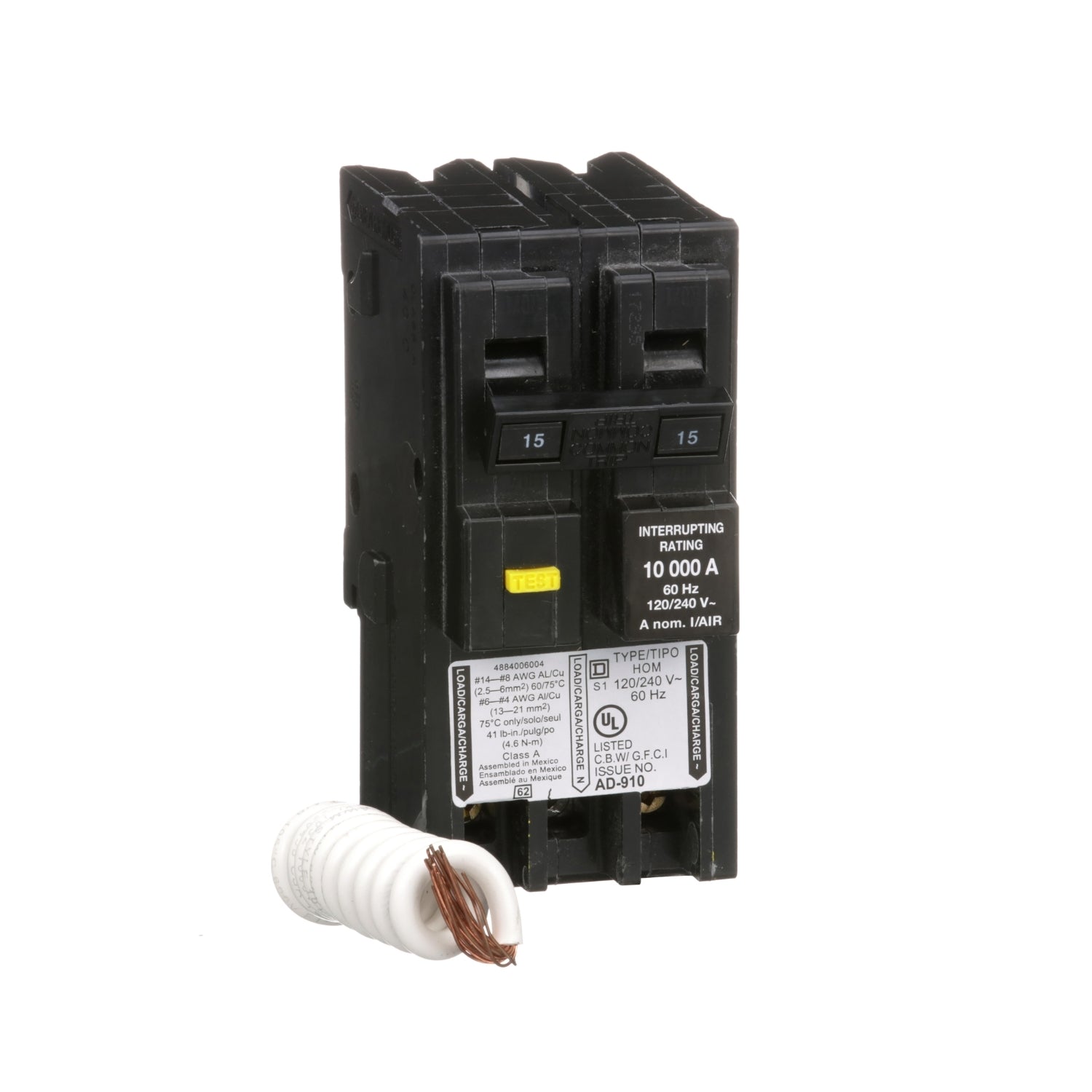

The HOM215GFI is a Homeline miniature circuit breaker engineered for fast installation and superior circuit protection. It is designed to plug into Homeline load centers. This 2-pole circuit breaker is rated for 15 amperes (A) at 120/240 volts alternating current (VAC). It features a 10 kiloampere (kA) interrupting rating (AIR) and provides both overload and short circuit protection, as well as Class A ground fault protection. Class A ground fault protection denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more.
Technical Specifications
|
Part # |
HOM215GFI |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
15 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
2 |
|
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
Information About HOM215GFI
The HOM215GFI is a miniature circuit breaker from the Homeline range, engineered and designed for rapid installation and superior circuit protection. This product is tailored for use in Homeline load centers, offering reliable circuit protection. The circuit breaker features standard circuit protection and is HACR (Heating, Air Conditioning, and Refrigeration) rated. It is a 2-pole circuit breaker with a plug-in mounting type, rated at 15A with an operational voltage of 120/240 VAC. The HOM215GFI provides a short circuit current rating of 10 kA.
This particular model includes ground fault protection, specifically Class A ground fault protection, which indicates that the breaker will trip when a fault current to ground is 6 milliamperes or more. This protection feature helps prevent electric shock by interrupting the circuit in case of a ground fault. The HOM215GFI circuit breaker uses a clamp terminal for electrical connections, which can accommodate two wires. The wire range for these terminals is between 14 AWG to 8 AWG for both copper and aluminum wires.
The dimensions of the HOM215GFI circuit breaker are as follows: a height of 3.13 inches, a width of 2.0 inches, and a depth of 2.98 inches. These compact dimensions make it suitable for installations where space is a concern. The HOM215GFI is designed for use in residential and light commercial applications, ensuring electrical safety and compliance with regulatory standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
