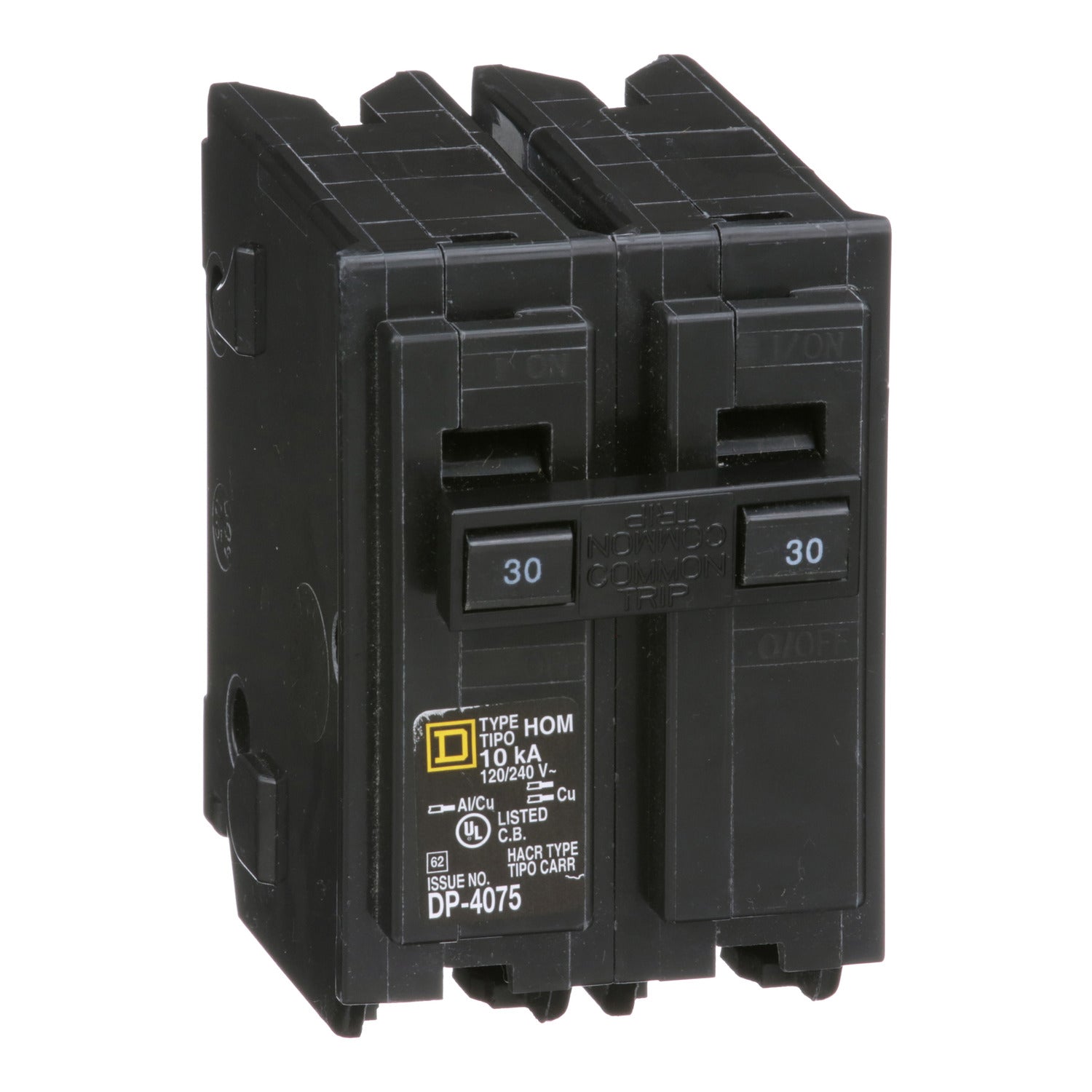

HOM230CP | Square D Homeline 30A 2-Pole 120/240V Plug-In Mini Circuit Breaker
- Regular price
- $27.00
- Sale price
- $27.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM230CP
Description
The Square D HOM230CP is a Homeline series mini circuit breaker designed for fast plug-in installation in compatible Homeline load centers. Rated at 30 Amps with a 2-pole configuration, it operates at 120/240 VAC and provides standard thermal-magnetic circuit protection. The HOM230CP is HACR rated and supports reliable overcurrent protection for residential and light commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D by Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HOM230CP |
| Subcategory | Din Rail Mount Circuit Breaker |
| Series / Range | Homeline |
| Rated Current | 30 A |
| Voltage Rating | 120/240 V AC |
| Number of Poles | 2 Pole |
| Trip Type | Thermal-Magnetic |
| Short-Circuit Current Rating | 10 kA |
| Mounting Type | Plug-In |
| Number of Spaces | 2 |
| HACR Rating | Yes |
| Electrical Connection | Clamp terminal for 2 cables |
| Height | 3.13 in (79.50 mm) |
| Width | 2 in (50.80 mm) |
| Depth | 2.98 in (75.69 mm) |
| Certifications | UL Listed |
Information About HOM230CP
The HOM230CP is part of Schneider Electric’s Homeline product family, developed for streamlined installation and dependable branch circuit protection. Its molded case design incorporates a thermal-magnetic trip mechanism calibrated for consistent response to overloads and short-circuit conditions. The breaker integrates directly into Homeline load centers using a plug-in mounting method with clamp-style terminals for secure wiring. It is commonly used in residential distribution panels where space-efficient, code-compliant two-pole protection is required.
Key Features:
- 30 Amp Current Rating: Suitable for standard branch and feeder circuits.
- Two-Pole Configuration: Supports 120/240 VAC applications.
- Thermal-Magnetic Trip Unit: Provides overload and instantaneous short-circuit protection.
- Plug-In Mounting: Enables quick installation in Homeline load centers.
- 10 kA Short-Circuit Rating: Designed for residential fault current levels.
- HACR Rated: Approved for heating, air conditioning, and refrigeration circuits.
- Clamp Terminals: Accepts two conductors for flexible wiring options.
The HOM230CP delivers the reliability and precision required for residential and light commercial circuit protection.
