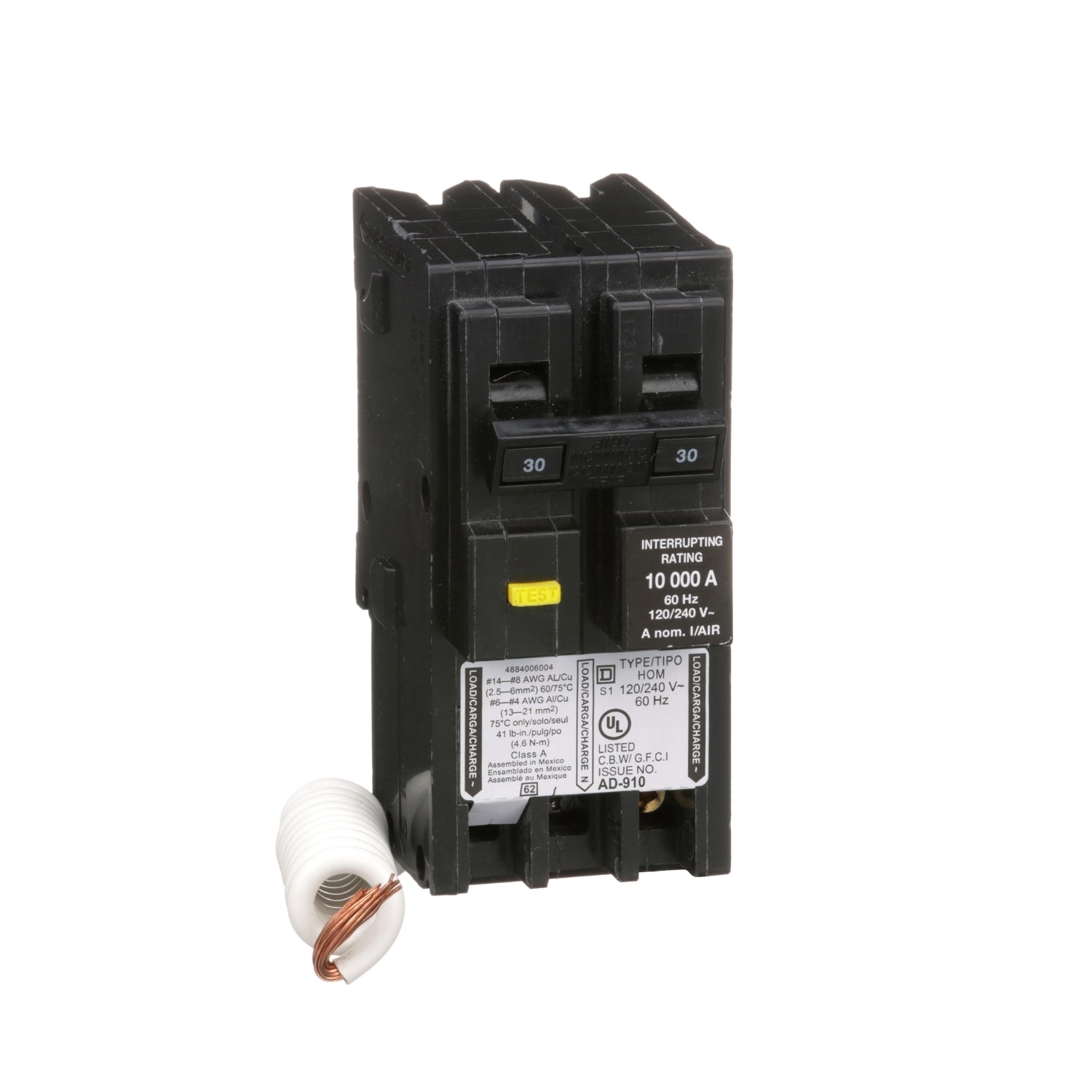

Product Description P/N: HOM230GFI
Description
The HOM230GFI is a Mini Circuit Breaker belonging to the Homeline series, designed for efficient installation and reliable circuit protection. Engineered to plug into Homeline load centers, these circuit breakers offer standard protection and are HACR rated.
Technical Specifications
Part # |
HOM230GFI |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Product Range |
Homeline |
Current Rating |
30 A |
Certifications |
UL Listed |
Voltage Rating |
120/240 V AC |
Mounting Type |
Plug-in |
Number of Poles |
2P |
Short Circuit Current Rating |
10 kA |
Number of Spaces |
2 |
Circuit Breaker Type |
Ground fault protecting class A 6 mA |
Ratings |
HACR rated |
Electrical Connection |
Screw clamp terminals |
Information About HOM230GFI
The HOM230GFI Mini Circuit Breaker, part of the Homeline series, is engineered to provide efficient installation and robust circuit protection. Specifically designed for Homeline load centers, these circuit breakers offer standard circuit protection and carry the HACR rating.
With a plug-in mounting configuration, this 2-pole circuit breaker is rated for 30A at both 120VAC and 240VAC, making it versatile for various applications. It boasts a high breaking capacity of 10kA AIR (Ampere Interrupting Rating), ensuring reliable protection against overloads and short circuits.
Notably, the Homeline ground fault circuit breakers feature Class A ground fault protection. Class A denotes a ground fault circuit interrupter that trips when a fault current to ground exceeds 6 milliamperes, enhancing safety in electrical circuits.
The electrical connection is facilitated by clamp terminals capable of accommodating two wires. These terminals support a wire range from 14 AWG to 8 AWG, compatible with both copper and aluminum wires.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
