HOM240GFI | Schneider Electric Homeline HOM 2-Pole 40A 240V GFI Thermal Magnetic Circuit Breaker
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM240GFI
Description

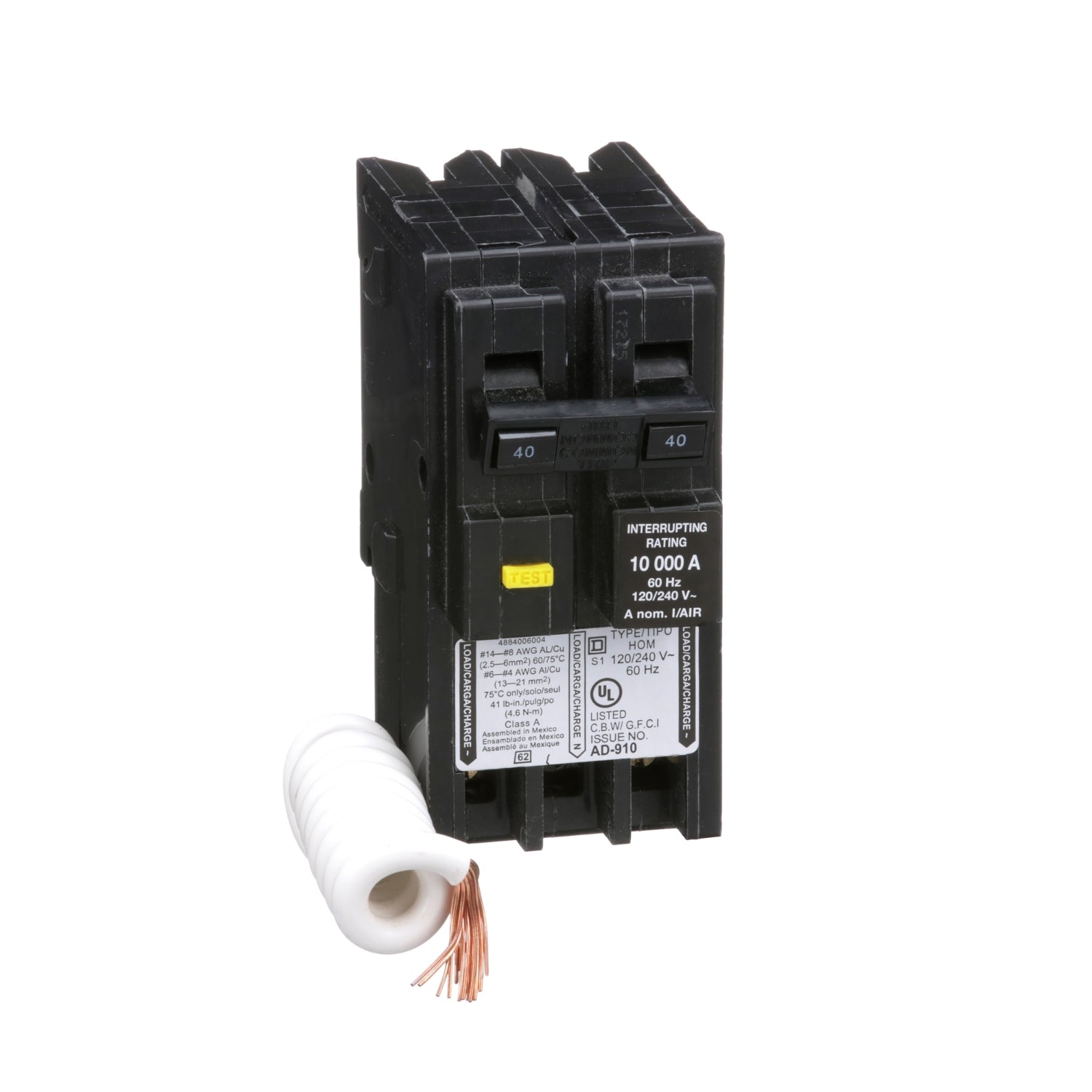

The Schneider Electric HOM240GFI is a molded case circuit breaker designed to provide overcurrent and ground fault protection in single-phase electrical systems. Rated at 240V and 40A, this breaker uses thermal magnetic protection with a plug-in design for use in compatible Homeline load centers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | HOM240GFI |
| Subcategory | Molded Case Circuit Breaker |
| Family | Homeline |
| Type | HOM |
| Voltage Rating | 240 V |
| Current Rating | 40 A |
| Poles | 2 |
| Phase | 1 |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Ground Fault Protection | Yes |
| Connection Type | Plug-In |
| Interrupting Rating (AIC) | 10 kA @ 240 V |
| Operating Temperature | 40 °C |
| Interrupting Capacity Type | Standard |
Information About HOM240GFI
The HOM240GFI is a molded case circuit breaker from the Square D Homeline family engineered for residential and light commercial power distribution. It is designed with a two-pole configuration to protect both conductors in single-phase applications. The breaker integrates seamlessly into Homeline load centers using a plug-in mounting method that simplifies installation and replacement. Its internal thermal magnetic trip unit combined with ground fault protection supports system safety by addressing overloads, short circuits, and ground fault conditions.
Key Features
- Homeline Series Design: Engineered for use with Square D Homeline load centers and panels.
- Ground Fault Protection: Integrated GFI functionality enhances personnel safety by detecting ground faults.
- Thermal Magnetic Trip Unit: Provides coordinated long-time and instantaneous protection.
- Two-Pole Configuration: Supports single-phase 240V circuit protection.
- Plug-In Connection: Allows fast and secure installation without hard wiring.
- Standard Interrupting Capacity: Rated at 10 kA at 240 V for typical residential fault levels.
The HOM240GFI delivers the reliability and precision required for safe single-phase circuit protection where ground fault detection is essential.
