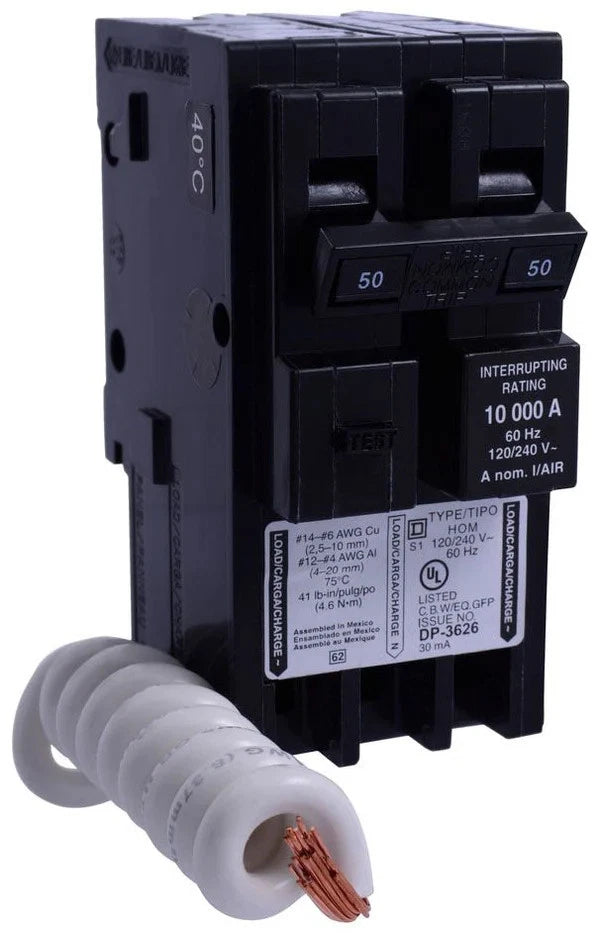

HOM250EPD | Square D Homeline 50A 2-Pole 120/240V Ground Fault Circuit Breaker
- Regular price
- $609.00
- Sale price
- $609.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HOM250EPD
Description
The Square D HOM250EPD is a 2-pole molded case circuit breaker designed to provide combined overcurrent and ground fault protection in residential and light commercial electrical systems. Rated at 50 amps and 120/240VAC, this Homeline breaker features thermal-magnetic protection with Class B equipment ground fault functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Homeline |
| Category | Molded Case Circuit Breaker |
| Part Number | HOM250EPD |
| Subcategory | Ground Fault Breaker |
| Series | Homeline |
| Circuit Breaker Type | Thermal Magnetic, Equipment Protector |
| Amperage | 50 Amp |
| Voltage Rating | 120/240 VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Connection Type | Plug-In |
| Interrupting Rating | 10kA at 240V |
| Trip Functions | LI – Long-Time and Instantaneous |
| Trip Sensitivity | 30 mA |
| Terminal Type | Screw Clamp |
| Wire Size | AWG 8 to AWG 2 Aluminum/Copper |
| Certifications | UL, CSA |
| Dimensions (HxWxD) | 3.7 in x 2.0 in x 2.6 in |
| Weight | 1.21 lbs |
Information About HOM250EPD
The HOM250EPD is part of the Square D Homeline series, engineered for compatibility with Homeline load centers and plug-on installation. This breaker uses a common-trip thermal-magnetic mechanism with long-time and instantaneous functions to protect against overloads and short circuits. Designed for single-phase systems, it also incorporates equipment ground fault protection with a 30 mA trip sensitivity. Its compact construction and screw clamp terminals support aluminum and copper conductors for flexible installation.
Key Features:
- 50 Amp Current Rating: Suitable for feeder and branch circuit protection.
- 2-Pole Configuration: Supports 120/240VAC single-phase electrical systems.
- Equipment Ground Fault Protection: Class B protection with 30 mA trip sensitivity.
- Thermal-Magnetic Trip Unit: Provides reliable overload and short-circuit protection.
- LI Trip Functions: Long-time and instantaneous response enhances circuit safety.
- Plug-On Mounting: Designed for fast installation in Homeline load centers.
- 10kA Interrupting Rating: Rated to interrupt fault currents up to 10kA at 240V.
The HOM250EPD delivers the reliability and precision required for equipment protection and ground fault safety in low-voltage power distribution applications.
