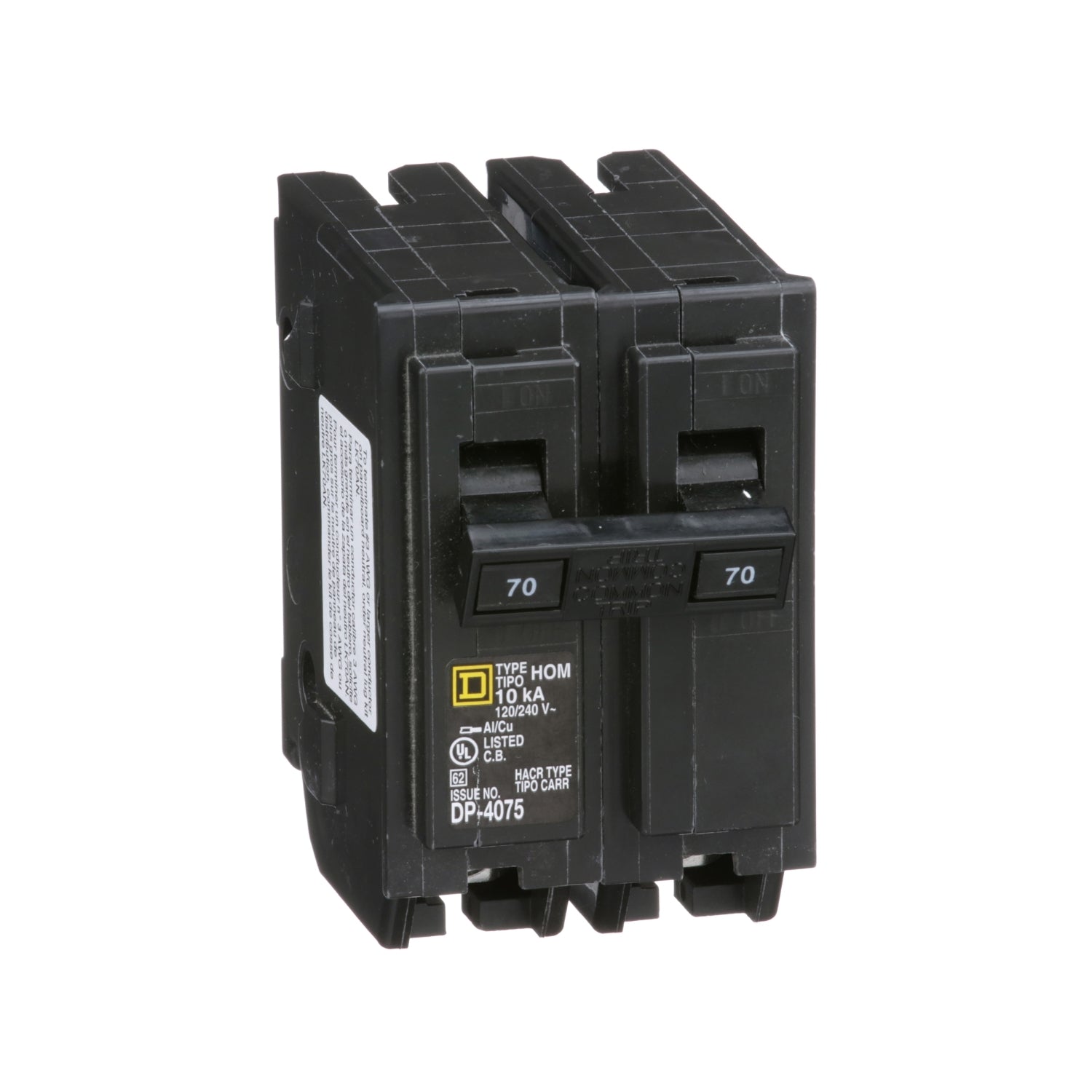

HOM270 | Schneider Electric Mini Circuit Breaker
- Regular price
- $82.00
- Sale price
- $82.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOM270
Description
The HOM270 is a Mini Circuit Breaker belonging to the Homeline series, designed for efficient installation and superior circuit protection. Specifically engineered for use with Homeline load centers, this breaker offers standard circuit protection and is HACR rated. It is a 2-pole circuit breaker with plug-in mounting, rated for 70A at 120/240 VAC, with a breaking capacity of 10 kA.
Featuring clamp terminals for electrical connection, it accepts wires of size 1. Additionally, the box lugs accept wire sizes ranging from 8 AWG to 2 AWG for both copper and aluminum wires. With dimensions measuring 3.13 inches in height, 2.0 inches in width, and 2.98 inches in depth, this circuit breaker is compact yet robust.
Technical Specifications
|
Part # |
HOM270 |
|
Category |
Circuit Breaker |
|
Subcategory |
Panel Mount Circuit Breaker Product |
|
Range |
Homeline |
|
Current Rating |
70 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
2 |
|
Circuit Breaker Type |
Standard Ratings |
|
HACR rated |
Yes |
|
Electrical Connection |
Box lugs |
|
Wire Size |
1 x AWG 8...AWG 2 (aluminium/copper) |
Information About HOM270
The HOM270 is a Mini Circuit Breaker from the Homeline series, engineered for rapid installation and robust circuit protection. Specifically designed to seamlessly integrate with Homeline load centers, these circuit breakers offer standard circuit protection and are HACR rated.
This 2-pole circuit breaker features plug-in mounting and is rated for 70A at 120/240 VAC. With a breaking capacity of 10 kA, it ensures reliable protection against short circuits. The electrical connection is facilitated through clamp terminals, accommodating up to 1 wire. Additionally, the box lugs are capable of accepting wire sizes ranging from 8 AWG to 2 AWG for both copper and aluminum wires.
Measuring 3.13 inches in height, 2.0 inches in width, and 2.98 inches in depth, this circuit breaker offers a compact yet sturdy design suitable for various applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
