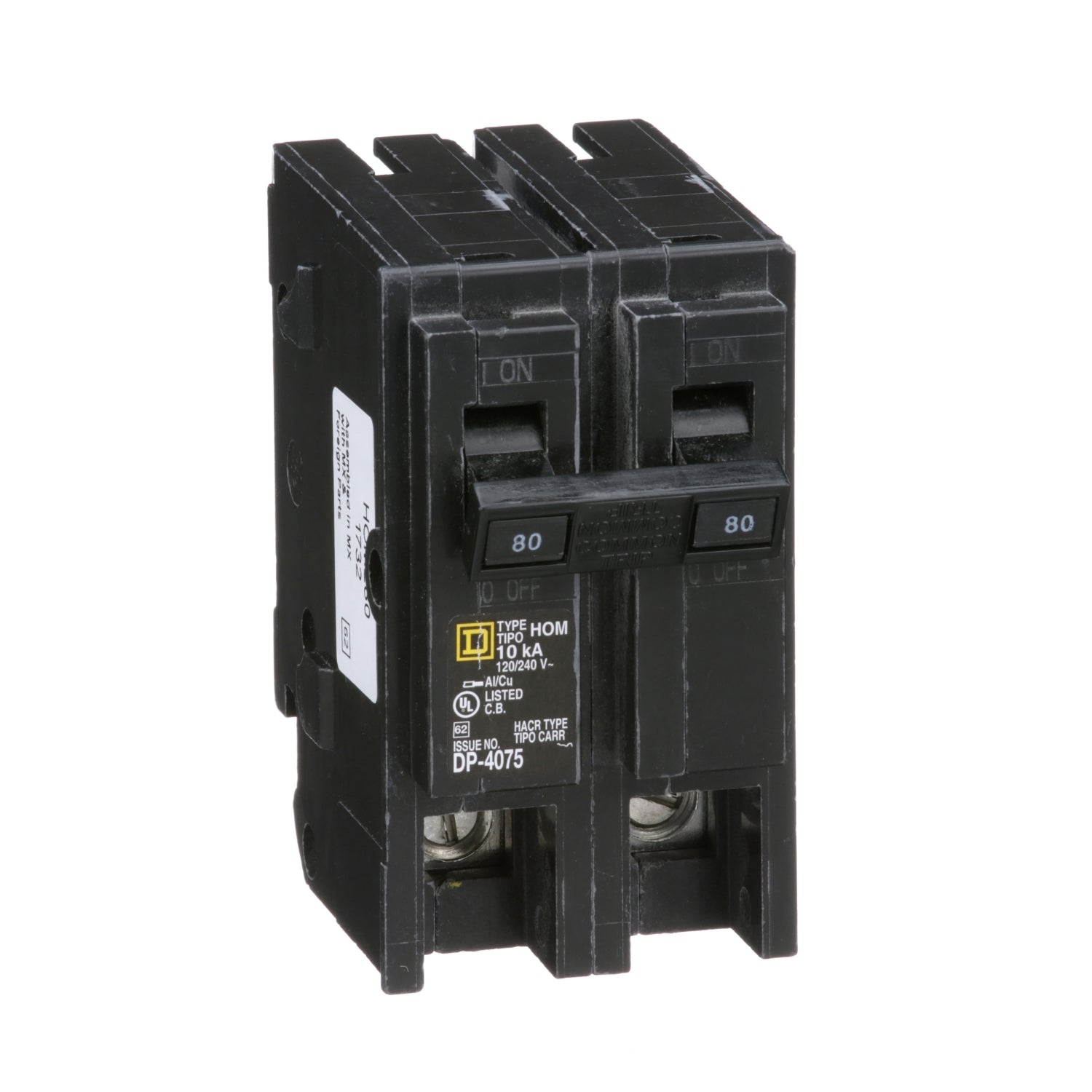

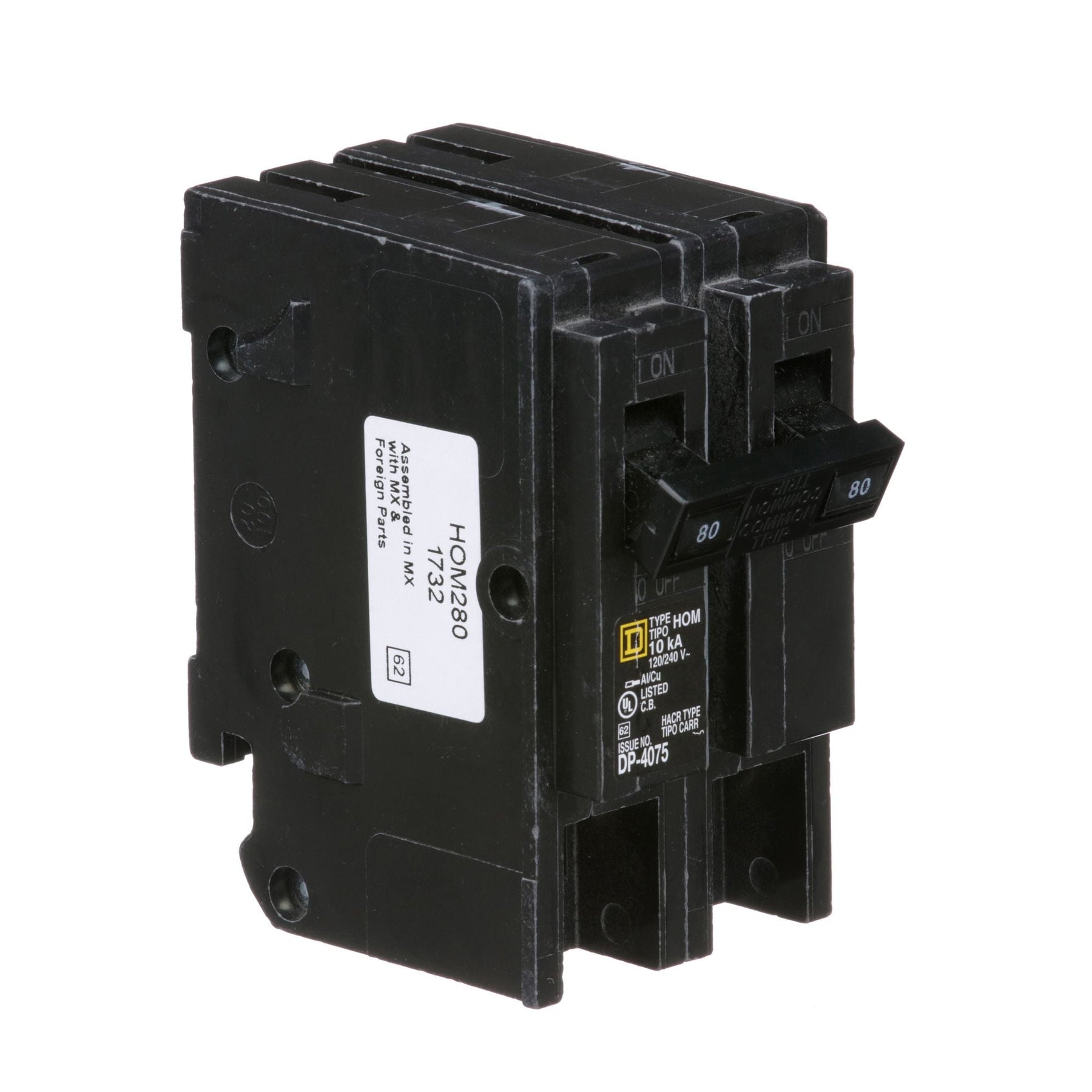

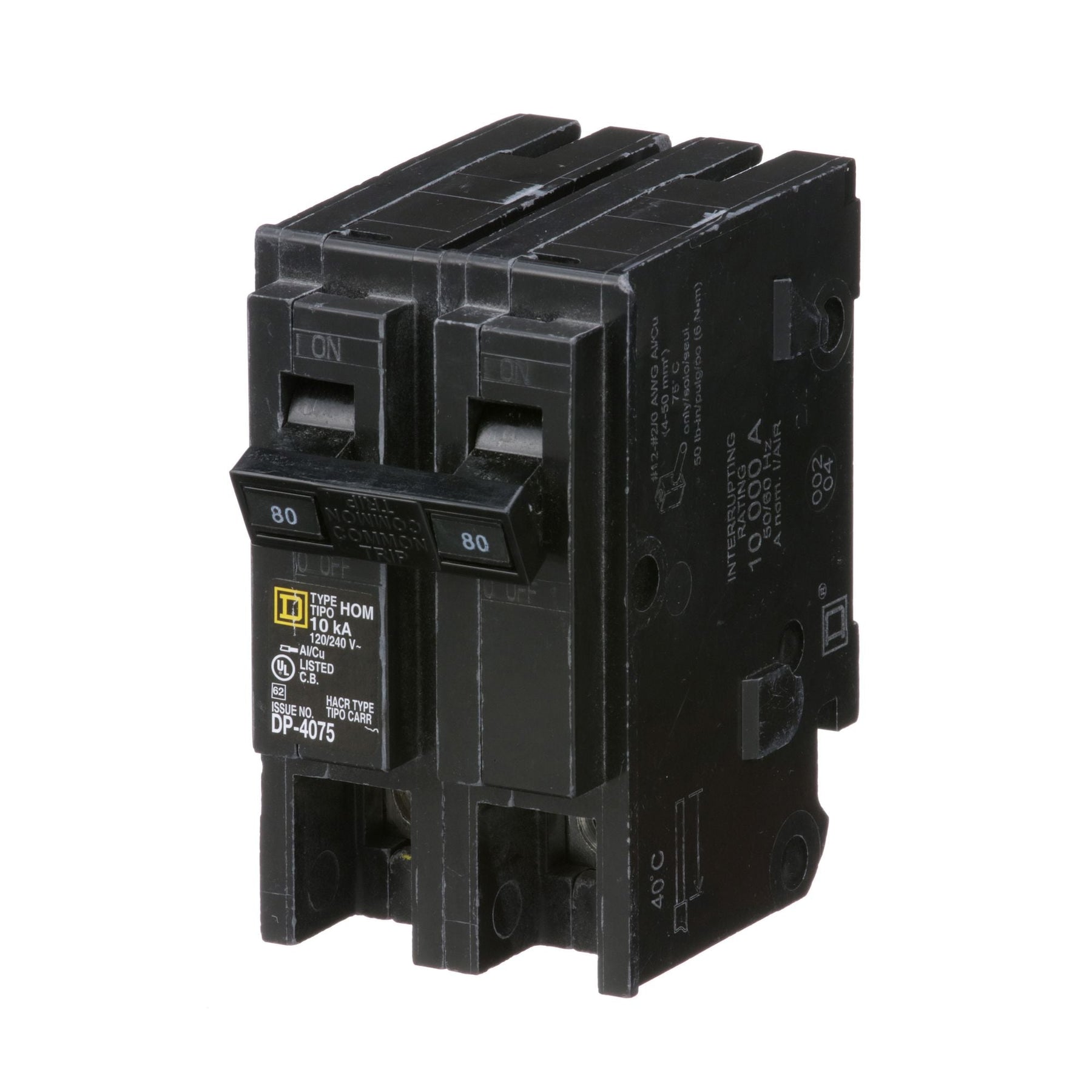

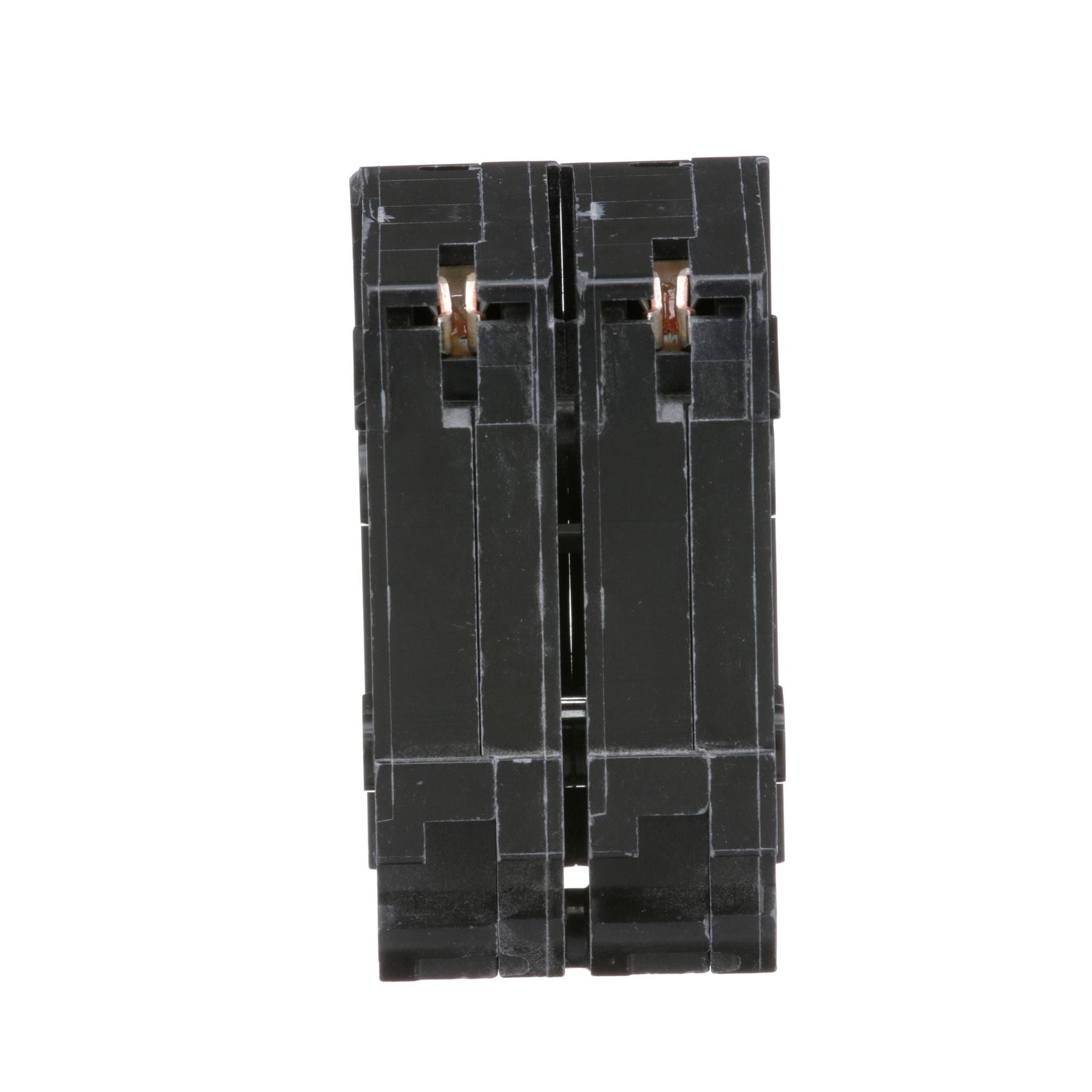

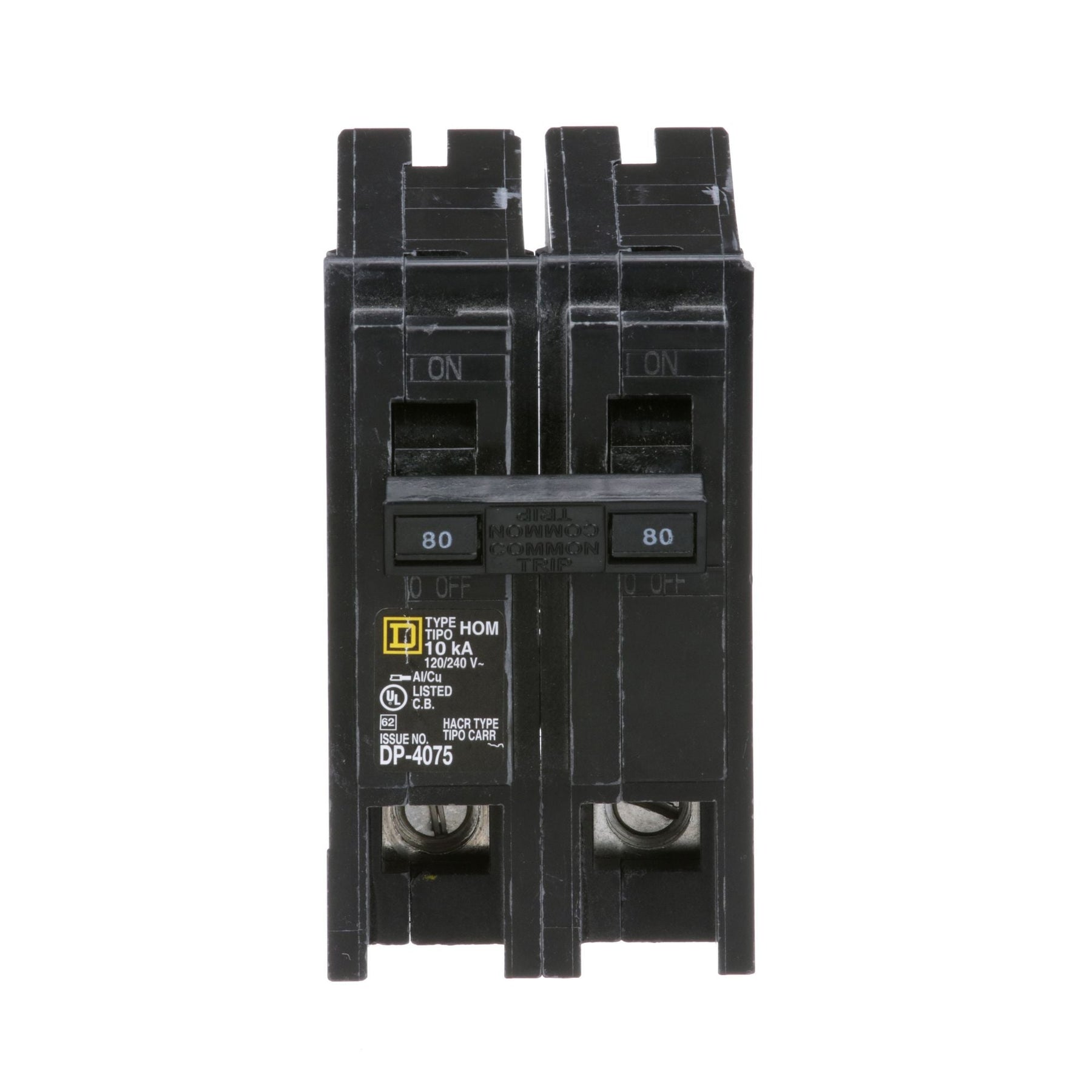

HOM280 | Schneider Electric Mini Circuit Breaker
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOM280
Description
HOM280 is a Homeline Miniature Circuit Breaker designed for fast installation and superior circuit protection. It is rated at 80A and operates at 120/240VAC with a 10kA interrupting rating. This 2-pole breaker features standard circuit protection and is HACR rated. It uses plug-in mounting compatible with Homeline load centers. The electrical connection includes a clamp terminal accepting one wire and box lugs accommodating wire sizes from 4 AWG to 2/0 AWG, both copper or aluminum. The circuit breaker dimensions are 3.13 inches in height, 2.0 inches in width, and 2.98 inches in depth. HOM Homeline miniature circuit breakers are UL Listed.
Technical Specifications
|
Part Number |
HOM280 |
|
Manufacturer |
Schneider Electric / Homeline |
|
Family |
Homeline |
|
Pole |
2 |
|
Amp |
80 |
|
Volt |
240 |
|
Phase |
1 |
|
Category |
Molded Case Circuit Breakers / 2-Pole |
|
Connection |
Plug-In |
|
Type |
HOM |
|
Functions |
LI - Long-Time and Instantaneous |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
10kA@240V |
Information About HOM280
The HOM280 is a Homeline miniature circuit breaker manufactured by Schneider Electric. This circuit breaker is designed for efficient installation and robust circuit protection. It is part of the Homeline family, which is engineered to plug into Homeline load centers, providing reliable circuit protection for residential and light commercial applications.
The HOM280 is a two-pole (2P) circuit breaker with a current rating of 80 amperes (80A). It operates on a voltage rating of 120/240 VAC, making it suitable for standard electrical systems. The circuit breaker features a thermal magnetic protection mechanism, ensuring both long-time (LI) and instantaneous protection against overloads and short circuits. This type of protection is critical for maintaining the safety and integrity of electrical systems.
This circuit breaker has an interrupting capacity (AIC) of 10 kiloamperes (kA) at 240 volts (240V), indicating its capability to safely interrupt fault currents up to this level without damaging the breaker or the electrical system. The HOM280 is HACR rated, meaning it meets the standards required for use with heating, air conditioning, and refrigeration equipment.
The HOM280 employs a plug-in connection type, allowing for straightforward and quick installation into compatible load centers. The electrical connection comprises a clamp terminal that accommodates a single wire. Additionally, the box lugs are designed to accept a wire range from 4 AWG to 2/0 AWG, accommodating both copper and aluminum wires. This flexibility in wire size enhances the breaker’s adaptability to various installation requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
