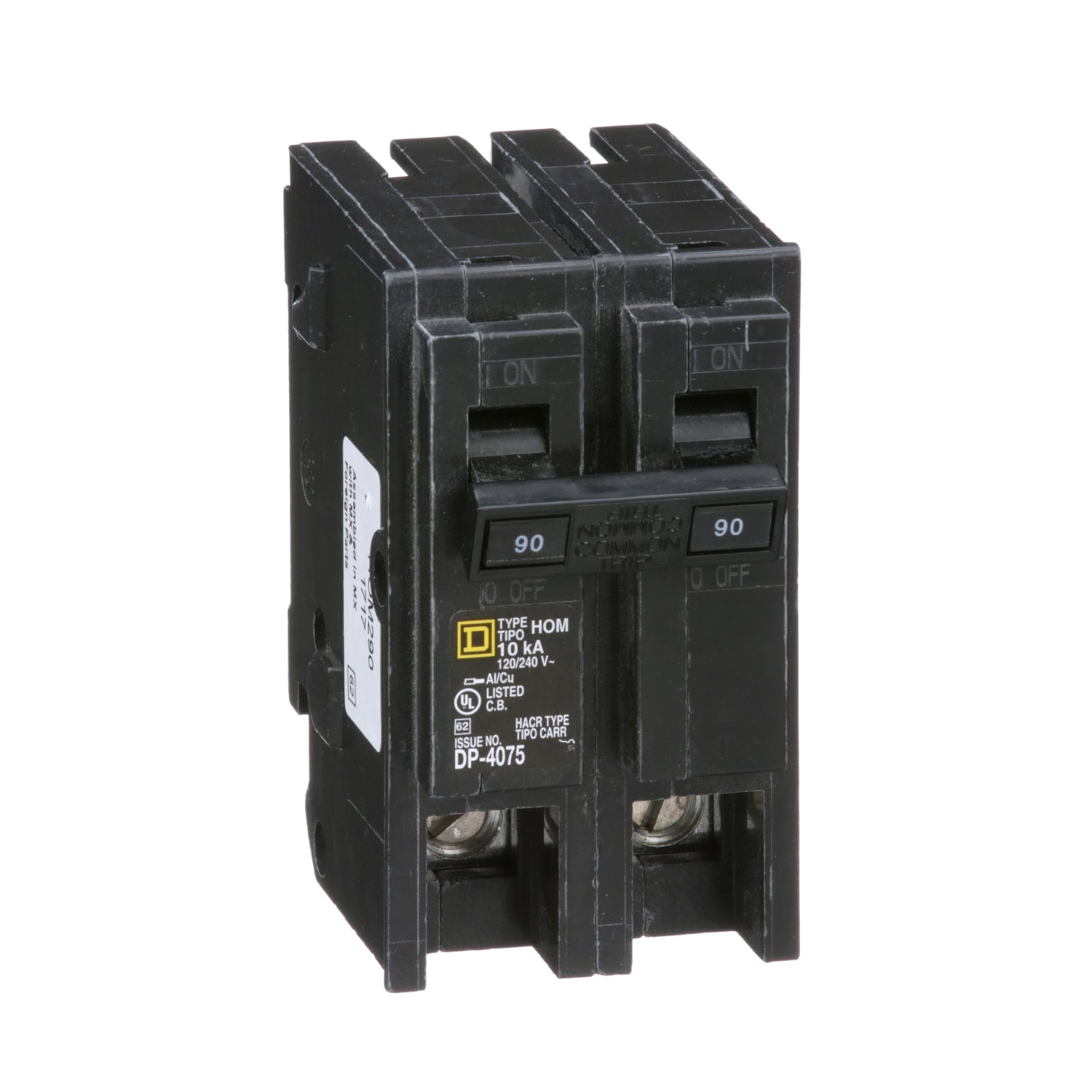

HOM290 | Schneider Electric Mini Circuit Breaker
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOM290
Description
The HOM290 is a Mini Circuit Breaker from the Homeline series, designed to provide superior circuit protection and facilitate fast installation. Engineered specifically for compatibility with Homeline load centers, these circuit breakers plug directly into the load center to offer circuit protection.
Featuring standard circuit protection and HACR rating, the HOM290 is a 2-pole circuit breaker with plug-in mounting, rated for 90A at 120/240VAC. It provides a breaking capacity of 10kA, ensuring reliable performance under varying loads.
The electrical connection is made via clamp terminals capable of accepting 1 wire, while the box lugs accommodate wire sizes ranging from 4 AWG to 2/0 AWG for both copper and aluminum wires.
Technical Specifications
|
Part # |
HOM290 |
|
Category |
Circuit Breaker |
|
Subcategory |
Panel Mount Circuit Breaker Product |
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
90 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
2 |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Wire Size |
1 x AWG 4...AWG 2/0 (aluminium/copper) |
|
Tightening Torque |
42.48 lbf.in (4.8 N.m) (AWG 4...2/0 kcmil) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
2 in (50.80 mm) |
|
Depth |
2.98 in (75.69 mm) |
Information About HOM290
The HOM290 Mini Circuit Breaker, part of the Homeline series, is engineered for swift installation and superior circuit protection. Designed to seamlessly integrate with Homeline load centers, these circuit breakers ensure efficient circuit protection.
Rated at 90A for 120/240VAC, the HOM290 is a 2-pole circuit breaker featuring plug-in mounting. It offers standard circuit protection and carries a HACR rating, providing assurance of its suitability for various applications.
With a breaking capacity of 10kA, HOM circuit breakers deliver robust performance under varying load conditions. The electrical connection is facilitated via clamp terminals capable of accepting one wire, while the box lugs accommodate wire sizes ranging from 4 AWG to 2/0 AWG for both copper and aluminum wires.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
