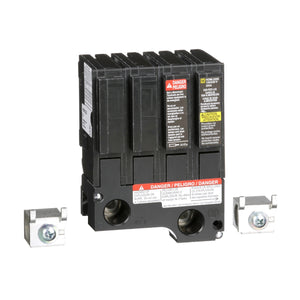

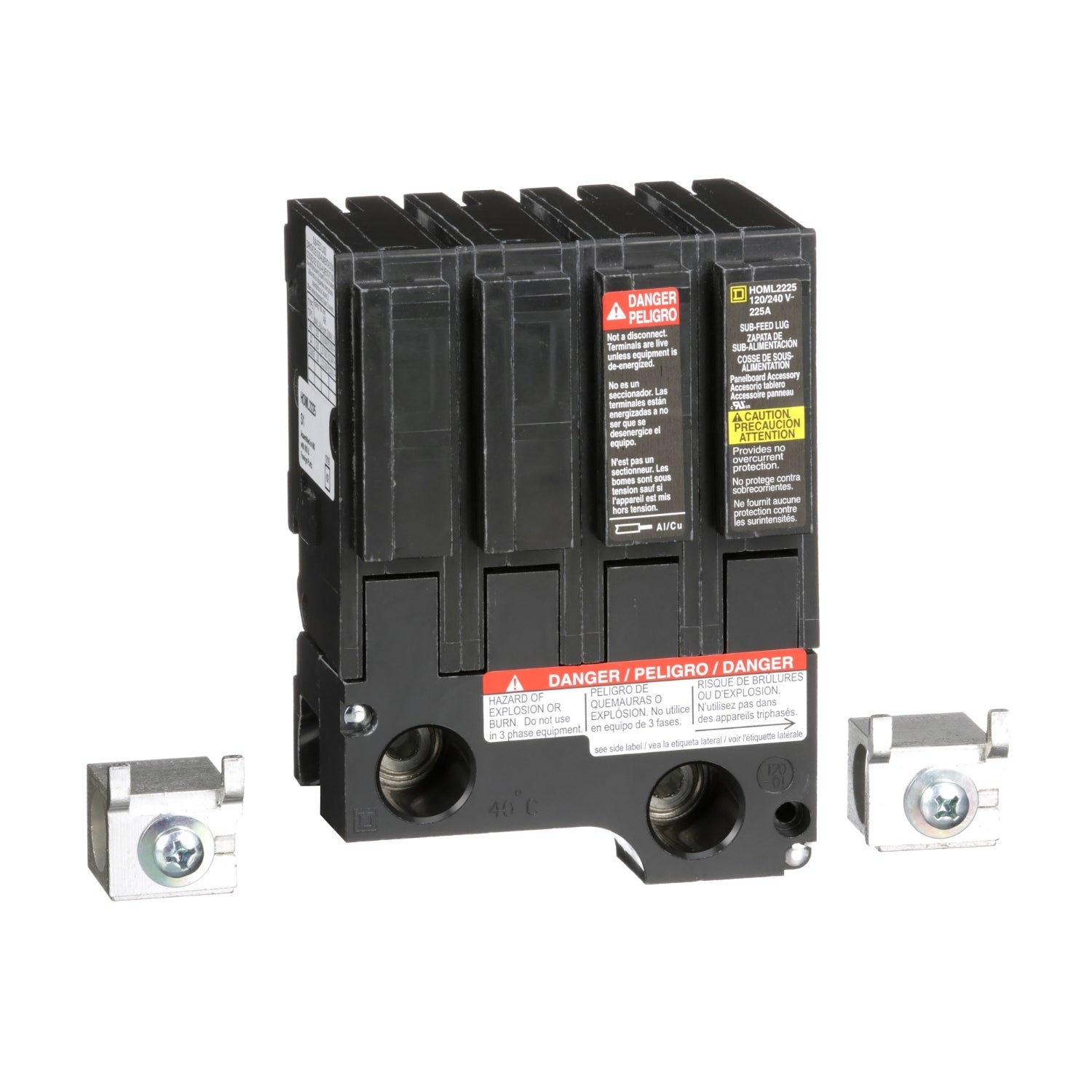

Part #: HOML2225 Manufactured by: Schneider Electric
Regular price
$519.00
Sale price
$519.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The HOML2225 Homeline Lug Kit is an integral accessory designed for Homeline load centers, which feature Homeline circuit ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: HOML2225
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: HOML2225

Description / Specifications

Description

The HOML2225 is a Homeline Lug Kit designed as a load center accessory for Homeline panelboards. It replaces the main lug of the panelboard to enable subfeeding into another panel or device, specifically compatible with Homeline load center main lug interiors. This kit features a two-pole plug-on design and is rated for 225A, occupying two spaces within the panel. It accommodates a wire range from 1 AWG to 300 kcmil for both copper and aluminum wires, ensuring versatile installation capabilities.



 Technical Specifications

Part #

HOML2225

Category

Circuit Breaker

Subcategory

Circuit Breaker Accessory

Number of Poles

2

Rated Current

225 A

Wire Size

AWG 4...300 kcmil

Height

5.39 in (136.91 mm)

Width

3.98 in (101.09 mm)

Depth

3.13 in (79.50 mm)

Tightening Torque

28 N.m, AWG 1...300 kcmil

Cable Cross Section

0.08…0.23 in² (50…150 mm²) - AWG 1...300 kcmil



Information About HOML2225

The HOML2225 Homeline Lug Kit is a specialized accessory designed for Homeline load centers, which accommodate Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. These load centers are suitable for both residential and industrial applications, providing robust protection for electrical systems, equipment, and individuals. Operating on single-phase systems, they are suitable for indoor use and are rainproof, ensuring versatility across different environments.

Specifically, the HOML2225 kit serves as a replacement for the standard main lug within a panelboard. It facilitates sub-feeding loads into other panels or devices and is exclusively compatible with Homeline™ load center main lug interiors. This kit features a two-pole plug-on sub-feed lug rated at 225A, requiring allocation of two spaces within the load center.

The HOML2225 accommodates a wide range of wire sizes, accepting copper or aluminum wires ranging from 1 AWG to 300 kcmil. This flexibility in wire compatibility enhances its utility across various installation scenarios, ensuring robust connectivity and operational reliability.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The HOML2225 is a Homeline Lug Kit designed as a load center accessory for Homeline panelboards. It replaces the main lug of the panelboard to enable subfeeding into another panel or device, specifically compatible with Homeline load center main lug interiors. This kit features a two-pole plug-on design and is rated for 225A, occupying two spaces within the panel. It accommodates a wire range from 1 AWG to 300 kcmil for both copper and aluminum wires, ensuring versatile installation capabilities.



 Technical Specifications

Part #

HOML2225

Category

Circuit Breaker

Subcategory

Circuit Breaker Accessory

Number of Poles

2

Rated Current

225 A

Wire Size

AWG 4...300 kcmil

Height

5.39 in (136.91 mm)

Width

3.98 in (101.09 mm)

Depth

3.13 in (79.50 mm)

Tightening Torque

28 N.m, AWG 1...300 kcmil

Cable Cross Section

0.08…0.23 in² (50…150 mm²) - AWG 1...300 kcmil



Information About HOML2225

The HOML2225 Homeline Lug Kit is a specialized accessory designed for Homeline load centers, which accommodate Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. These load centers are suitable for both residential and industrial applications, providing robust protection for electrical systems, equipment, and individuals. Operating on single-phase systems, they are suitable for indoor use and are rainproof, ensuring versatility across different environments.

Specifically, the HOML2225 kit serves as a replacement for the standard main lug within a panelboard. It facilitates sub-feeding loads into other panels or devices and is exclusively compatible with Homeline™ load center main lug interiors. This kit features a two-pole plug-on sub-feed lug rated at 225A, requiring allocation of two spaces within the load center.

The HOML2225 accommodates a wide range of wire sizes, accepting copper or aluminum wires ranging from 1 AWG to 300 kcmil. This flexibility in wire compatibility enhances its utility across various installation scenarios, ensuring robust connectivity and operational reliability.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
