HOMT2020 | Schneider Electric Tandem Circuit Breaker
- Regular price
- $35.00
- Sale price
- $35.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOMT2020
Description

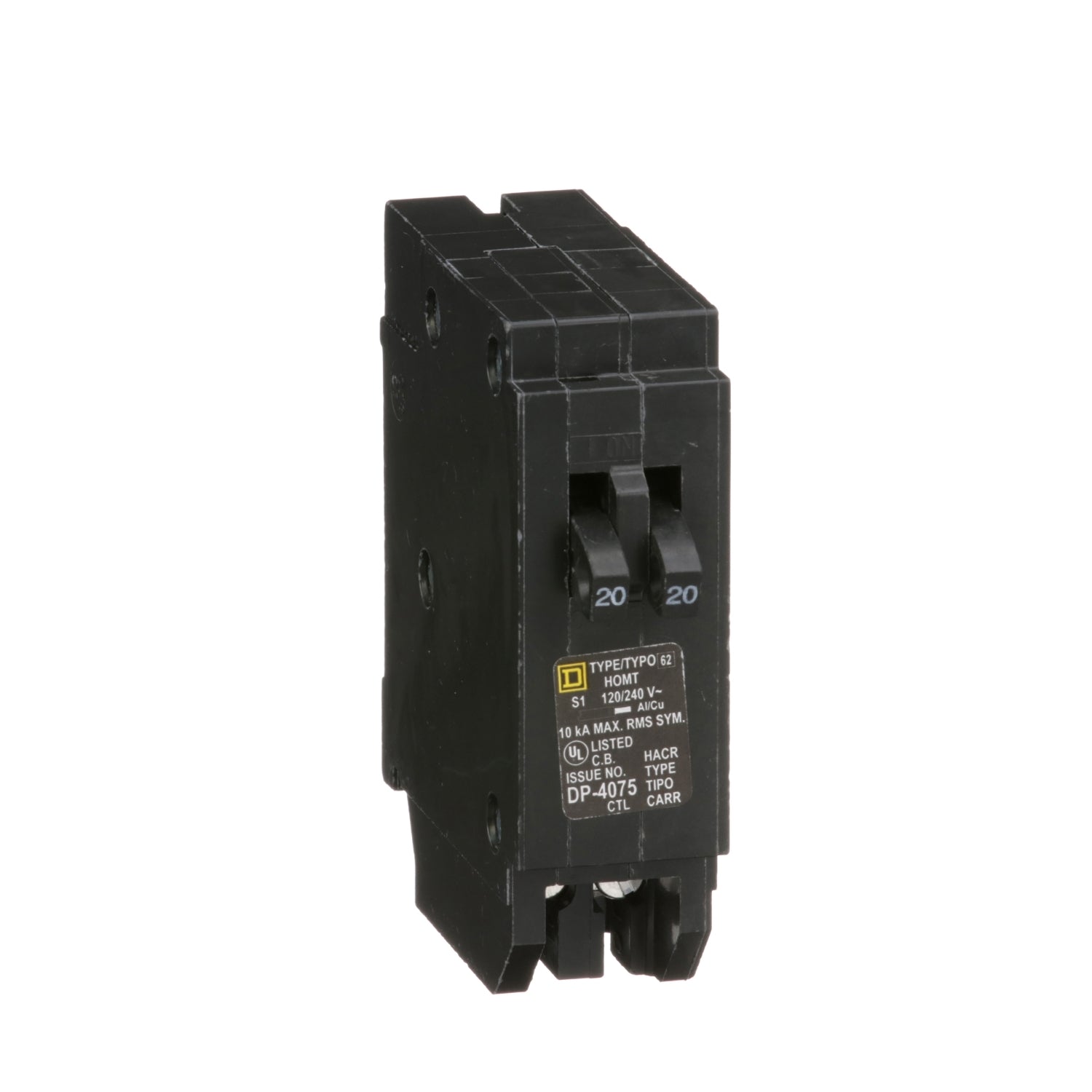

This HOMT202 tandem circuit breaker from the Homeline series is engineered to deliver efficient circuit protection while ensuring ease of installation. It consists of two single-pole thermal magnetic circuit breakers arranged in tandem configuration, occupying a single Homeline pole space. Each individual pole of the HOMT202 provides independent switching and tripping capabilities. With a rating of 20 amps at 120/240 volts AC, this plug-in tandem breaker offers a robust 10,000-ampere interrupting capacity (AIR), suitable for protecting residential and light commercial electrical circuits. The breaker accommodates wire sizes ranging from 14 AWG to 8 AWG in copper or aluminum.
Technical Specifications
|
Part # |
HOMT202 |
|
Category |
Circuit Breaker |
|
Subcategory |
Miniature Circuit Breaker |
|
Product Range |
Homeline |
|
Product Type |
Tandem Circuit Breaker |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Ratings |
HACR rated |
Information About HOMT2020
The HOMT202 tandem circuit breaker from the Homeline series by Square D is engineered for efficient installation and robust circuit protection within Homeline load centers. These miniature circuit breakers are designed to plug directly into Homeline load centers, facilitating quick and straightforward setup.
The HOMT202 consists of two single-pole thermal magnetic circuit breakers arranged in tandem configuration, occupying a single HOM pole space. Each single-pole HOMT plug-in circuit breaker functions independently, offering individual switching and tripping capabilities. This tandem breaker is specifically rated for 20A at 120/240VAC and provides a reliable 10 kA interrupting capacity, ensuring effective protection against overloads and short circuits.
With a capability to accommodate wire sizes ranging from 14 AWG to 8 AWG in copper or aluminum, the HOMT202 tandem breaker supports flexible wiring configurations. Its compact dimensions of 3.13 inches in height, 1.00 inch in width, and 2.98 inches in depth make it suitable for installations where space is limited.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
This HOMT202 tandem circuit breaker from the Homeline series is engineered to deliver efficient circuit protection while ensuring ease of installation. It consists of two single-pole thermal magnetic circuit breakers arranged in tandem configuration, occupying a single Homeline pole space. Each individual pole of the HOMT202 provides independent switching and tripping capabilities. With a rating of 20 amps at 120/240 volts AC, this plug-in tandem breaker offers a robust 10,000-ampere interrupting capacity (AIR), suitable for protecting residential and light commercial electrical circuits. The breaker accommodates wire sizes ranging from 14 AWG to 8 AWG in copper or aluminum.
Technical Specifications
|
Part # |
HOMT202 |
|
Category |
Circuit Breaker |
|
Subcategory |
Miniature Circuit Breaker |
|
Product Range |
Homeline |
|
Product Type |
Tandem Circuit Breaker |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Ratings |
HACR rated |
Information About HOMT2020
The HOMT202 tandem circuit breaker from the Homeline series by Square D is engineered for efficient installation and robust circuit protection within Homeline load centers. These miniature circuit breakers are designed to plug directly into Homeline load centers, facilitating quick and straightforward setup.
The HOMT202 consists of two single-pole thermal magnetic circuit breakers arranged in tandem configuration, occupying a single HOM pole space. Each single-pole HOMT plug-in circuit breaker functions independently, offering individual switching and tripping capabilities. This tandem breaker is specifically rated for 20A at 120/240VAC and provides a reliable 10 kA interrupting capacity, ensuring effective protection against overloads and short circuits.
With a capability to accommodate wire sizes ranging from 14 AWG to 8 AWG in copper or aluminum, the HOMT202 tandem breaker supports flexible wiring configurations. Its compact dimensions of 3.13 inches in height, 1.00 inch in width, and 2.98 inches in depth make it suitable for installations where space is limited.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
