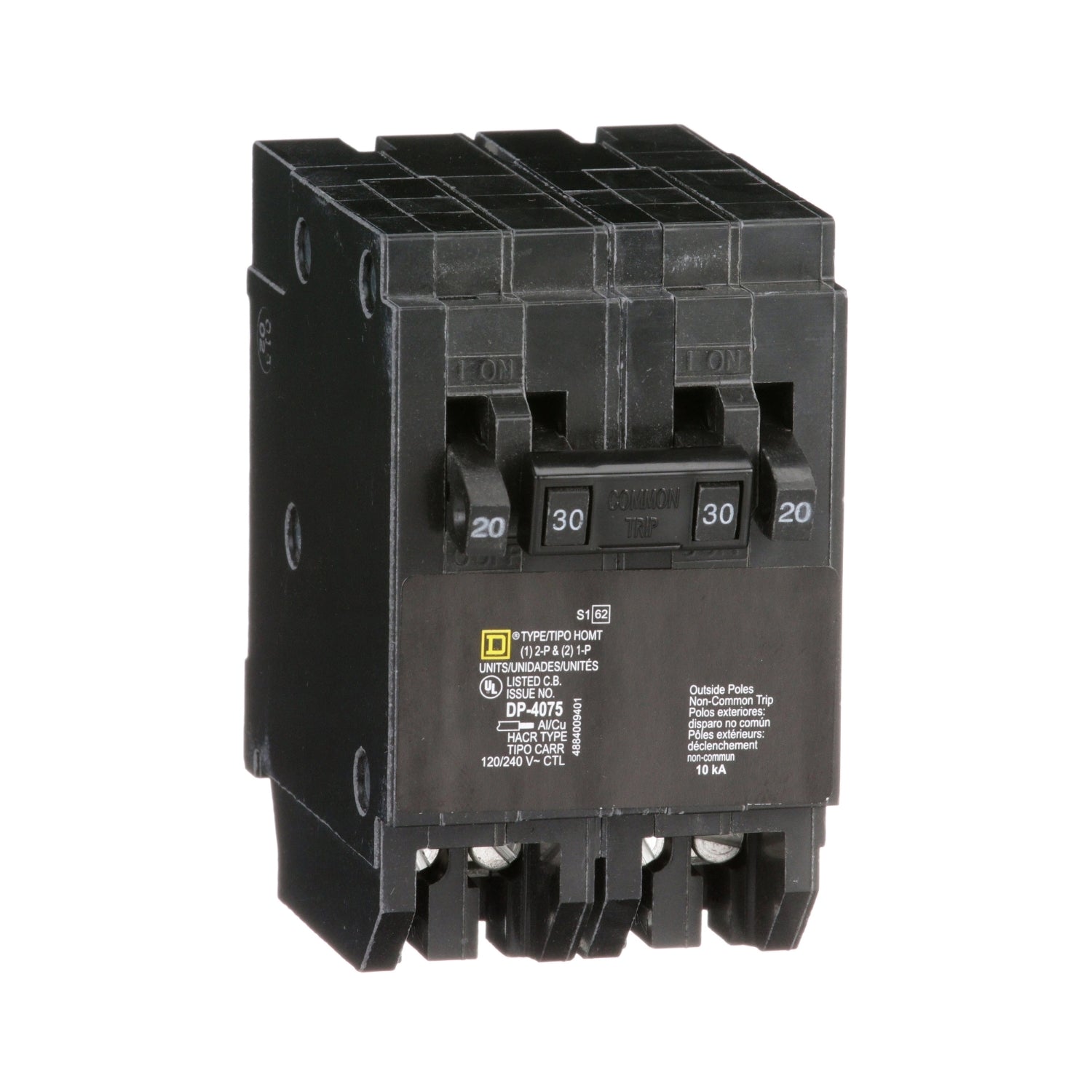

HOMT2020230 | Schneider Electric Tandem Circuit Breaker
- Regular price
- $78.00
- Sale price
- $78.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOMT2020230
Description
The HOMT2020230 is a Tandem Circuit Breaker from the Homeline series, engineered for efficient installation and effective circuit protection. Designed to plug into Homeline load centers, these circuit breakers ensure reliable protection for electrical systems.
This particular HOMT circuit breaker is a quad tandem breaker, occupying two HOM pole spaces. It comprises a two-pole breaker in the middle and a single breaker on each side, providing standard circuit protection and HACR rating.
Technical Specifications
|
Part # |
HOMT2020230 |
|
Category |
Circuit Breaker |
|
Subcategory |
Panel Mount Circuit Breaker Product |
|
Range |
Homeline |
|
Current Rating |
30 A (2 Pole), 20 A (1 Pole) |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2 (2 Pole), 1 (1 Pole) |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
2 |
|
Circuit Breaker Type |
Quad tandem |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Wire Size |
1 x AWG 14...AWG 8 (aluminium/copper) |
|
Tightening torque |
35.40 lbf.in (4.0 N.m) AWG 14...AWG 8 |
|
Height |
3.13 in (79.50 mm) |
|
Width |
2 in (50.80 mm) |
|
Depth |
2.98 in (75.69 mm) |
Information About HOMT2020230
Homeline miniature circuit breakers, exemplified by the HOMT2020230 model, are meticulously engineered for swift installation and unparalleled circuit protection. These circuit breakers are purposefully designed to seamlessly integrate into Homeline load centers, furnishing reliable circuit protection for various applications. The HOMT2020230 circuit breaker belongs to the quad tandem category, denoting its capability to occupy two HOM pole spaces within electrical panels.
This particular quad tandem circuit breaker configuration comprises a two-pole breaker positioned centrally, flanked by single breakers on either side. Such a layout enables efficient utilization of panel space while ensuring optimal circuit protection. The dual-pole breaker is rated at 30A for both 120V and 240V AC systems, catering to diverse voltage requirements. The single-pole breakers, rated at 20A each for both voltage ranges, contribute to comprehensive circuit protection.
Functionally, the HOMT2020230 quad tandem breaker conforms to HACR standards, signifying its competence in safeguarding electrical systems against overloads and short circuits. With a robust breaking capacity of 10kA, this circuit breaker assures reliable performance even in demanding environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
