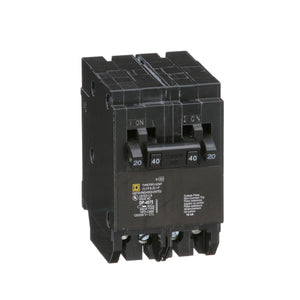

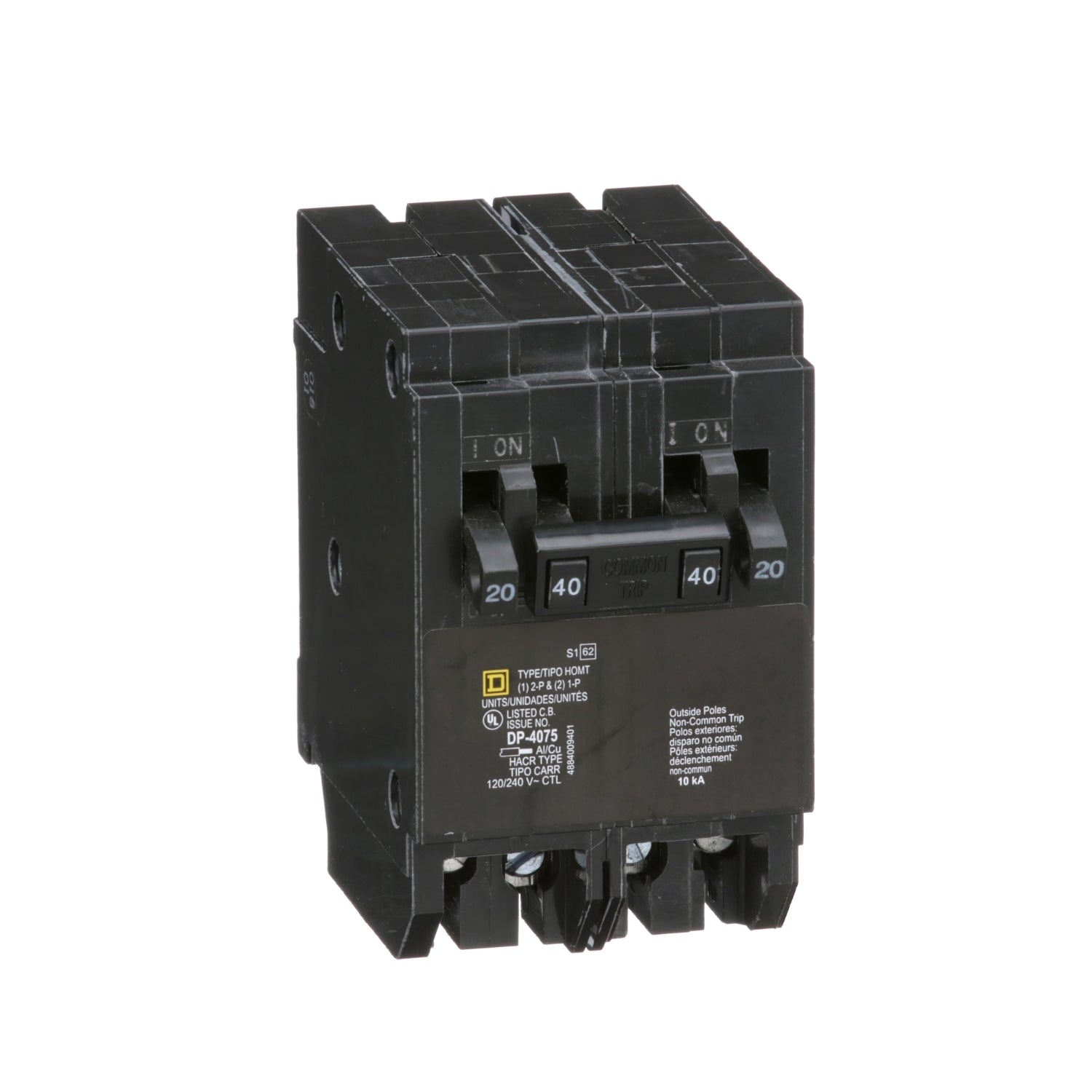

HOMT2020240 | Schneider Electric Tandem Circuit Breaker
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HOMT2020240
Description
The HOMT2020240 is a Tandem Circuit Breaker within the Homeline series, featuring 2 x 1 Pole at 20A and 1 x 2 Pole at 40A configurations. Engineered for rapid installation and superior circuit protection, Homeline miniature circuit breakers are specifically designed to plug into Homeline load centers.
This particular HOMT circuit breaker is a quad tandem breaker, occupying two HOM pole spaces. It comprises a two-pole breaker in the middle and a single breaker on each side, providing standard circuit protection and holding a HACR rating. The two-pole breaker is rated at 40A, while the single pole breakers are rated at 20A and 20A, all operating at 120/240 VAC.
Technical Specifications
|
Part # |
HOMT2020240 |
|
Category |
Circuit Breaker |
|
Subcategory |
Panel Mount Circuit Breaker Product |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Current Rating |
40 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
2 |
|
Circuit Breaker Type |
Quad tandem |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Height |
3.13 in (79.50 mm) |
|
Width |
2 in (50.80 mm) |
|
Depth |
2.98 in (75.69 mm) |
Information About HOMT2020240
The HOMT2020240 is a Tandem Circuit Breaker within the Homeline series, featuring 2 x 1 Pole at 20A and 1 x 2 Pole at 40A configurations. Engineered for rapid installation and superior circuit protection, Homeline miniature circuit breakers are specifically designed to plug into Homeline load centers.
This particular HOMT circuit breaker is a quad tandem breaker, occupying two HOM pole spaces. It comprises a two-pole breaker in the middle and a single breaker on each side, providing standard circuit protection and holding a HACR rating. The two-pole breaker is rated at 40A, while the single pole breakers are rated at 20A and 20A, all operating at 120/240 VAC.
With a breaking capacity of 10 kA, this quad tandem breaker ensures robust protection against short circuits. The two-pole breaker accepts wire sizes ranging from 14 AWG to 6 AWG for copper or 12 AWG to 6 AWG for aluminum wires, while the single pole breakers accept wire sizes from 14 AWG to 8 AWG for both copper and aluminum wires.
