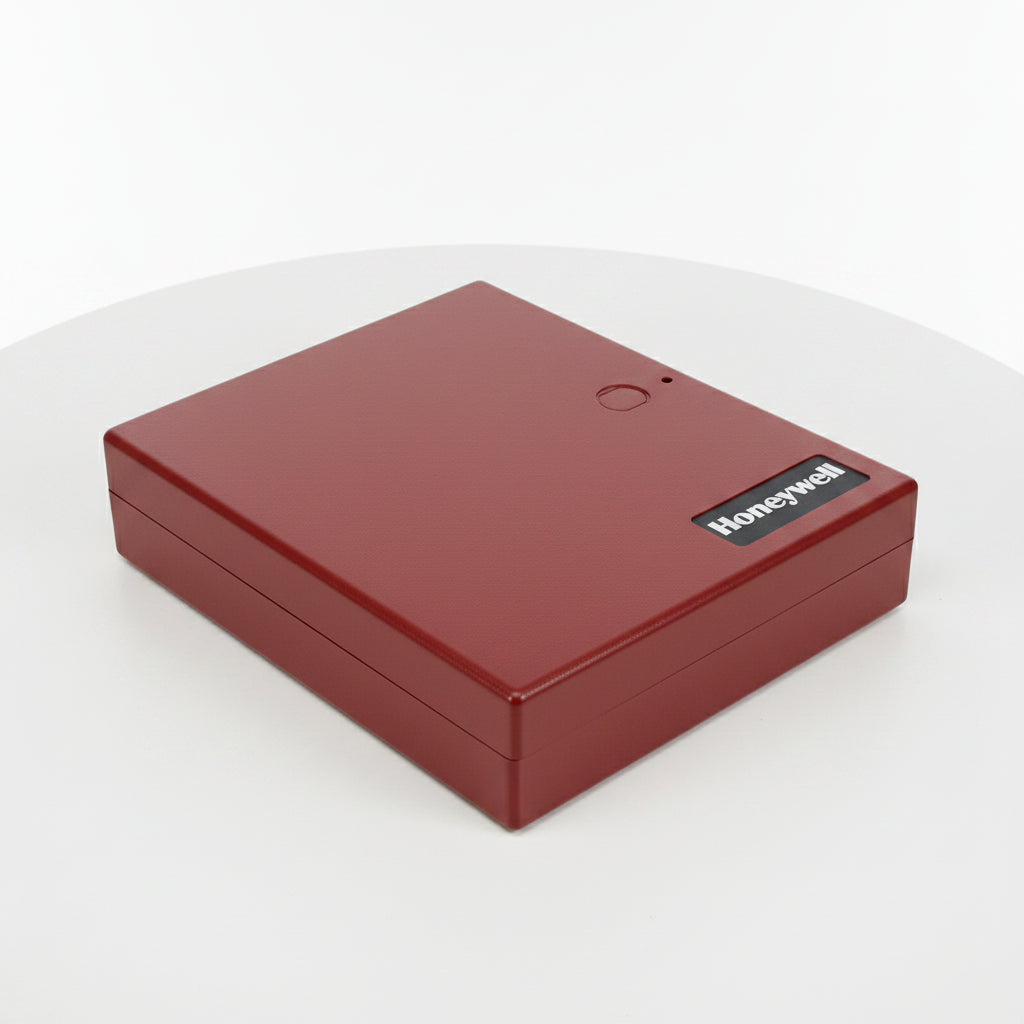

HON-DACT-DS | Honeywell DS Dialer Dual-Line Fire Alarm Communicator
- Regular price
- $1,259.00
- Sale price
- $1,259.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: HON-DACT-DS
Description
The Honeywell HON-DACT-DS DS Dialer is a dual-line fire alarm communicator designed to report system status from a fire alarm control panel to a central monitoring station. It supports integration with listed fire alarm panels and provides secure, automatic reporting over the public switched telephone network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Safety |
| Part Number | HON-DACT-DS |
| Subcategory | Fire Alarm Control |
| Communication Lines | 2 (primary and backup POTS lines) |
| Protocol Supported | Ademco® Contact ID |
| Operating Voltage Range | 18 VDC – 30 VDC |
| Typical Current Draw | ~200 mA @ 18 V, ~150 mA @ 24 V |
| Operating Temperature | 32 °F to 120 °F (0 °C to 49 °C) |
| Storage Temperature | 14 °F to 140 °F (-10 °C to +60 °C) |
| Relative Humidity | 1% – 93% non-condensing |
| Listings & Approvals | ETL Listed (Control No. 5025335) for UL 864; FCC ID 1W6AL02ACGWMB |
| Dimensions (H×W×D) | 10 in × 2¾ in × 8 in |
| Weight | 2 lbs |
Information About HON-DACT-DS
The HON-DACT-DS is a dedicated dialer unit from Honeywell’s fire-life safety communications product line, engineered to interface with compatible fire alarm control panels such as the NOTIFIER ONYX series, INSPIRE series and the Gamewell‑FCI E3/S3 series. It comes in a red surface-mount enclosure and occupies two POTS (plain old telephone service) lines for primary and backup communications. The unit monitors line voltage, seizes the line if needed, sends centrally-station-formatted signals (Contact ID protocol) for alarms, troubles, supervisories and AC power loss, and provides LED status indicators for connectivity and fault conditions.
Key Features:
- Dual Telephone-Line Support: Provides primary and backup line paths for reliable central station reporting.
- Contact ID Protocol Compliance: Supports prevailing central-station reporting format for fire alarm communications.
- Line Seizure Capability: Automatically seizes the local phone line to ensure prompt reporting over POTS.
- Line-Voltage Monitoring: Detects loss or sag of the telephone line and reports as a trouble condition.
- Compatible Panel Support: Designed to interface out-of-the-box with Notifier ONYX/INSPIRE and Gamewell-FCI E3/S3 panels.
- LED Status Indicators: Front panel LEDs show Lost Panel Connection, Central Station Handshake Signal and Communication Failure.
- Compact Surface Mount Enclosure: Housed in a red cabinet, external to the fire alarm panel, for ease of installation.
- Comprehensive Event Reporting: Reports alarms, troubles, supervisory signals, NAC trouble, panel off-normal, and AC power loss.
- UL/ETL and FCC Approvals: Electro-mechanical listing to UL 864 standard and FCC ID compliance for telecom interface.
- Seismic Mounting-Capable: Accepts seismic mounting hardware for installation in IBC/IBC-zone locations when required.
The HON-DACT-DS DS Dialer delivers the required communication reliability and compatibility for monitored fire alarm installations.
