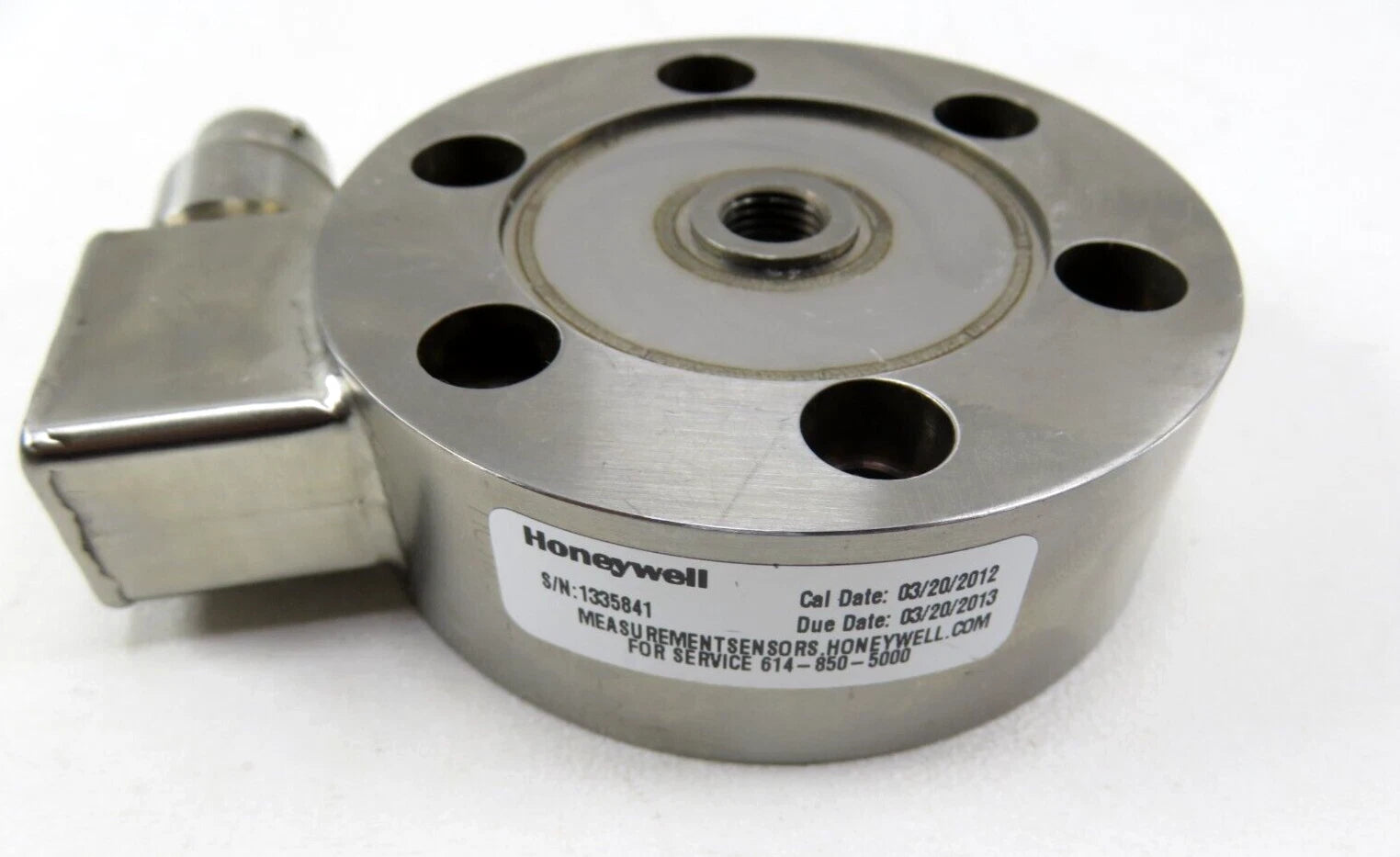

Honeywell 060-0571-07 Pancake Load Cell 500 lbf Tension Force Sensor
- Regular price
- $2,589.00
- Sale price
- $2,589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 060-0571-07
Description
The Honeywell 060-0571-07 is a precision pancake-style load cell engineered for accurate tension measurement in industrial force sensing and weighing applications. Designed with bonded foil strain gauge technology and a low-profile construction, this 500 lbf load cell delivers reliable performance in extrusion systems, tube mills, material testing, and industrial process monitoring environments. Its welded double-diaphragm design minimizes side-loading effects while maintaining excellent repeatability and measurement stability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Transducers |
| Part Number | 060-0571-07 |
| Subcategory | Load Cells |
| Product Type | Pancake Load Cell |
| Measurement Type | Tension Force Measurement |
| Load Capacity | 500 lbf |
| Sensing Technology | Bonded Foil Strain Gauge |
| Sensor Output | 3 mV/V |
| Supply Voltage | 10 VDC |
| Accuracy | 0.1% |
| Construction Type | Welded Double Diaphragm |
| Connector Type | Bendix PTIH-10-6P |
| Electrical Exit Orientation | Horizontal |
| Operating Temperature Range | -54°C to 121°C |
| Mounting Style | Threaded Center Hole |
| Sealing Capability | Hermetically Sealable |
| Application | Industrial Weighing and Force Measurement |
| Weight | Approx. 3.5 lb |
Information About 060-0571-07
The 060-0571-07 is a Honeywell low-profile tension load cell developed for high-accuracy industrial force measurement applications requiring dependable signal stability and structural durability. Built with bonded foil strain gauge sensing technology, the unit provides precise load measurement with low non-linearity and hysteresis characteristics for demanding industrial processes. The sensor utilizes a pancake-style construction with a threaded center hole and dual stabilizing diaphragms to reduce off-axis loading errors and improve measurement consistency. Designed for continuous operation in harsh environments, the load cell incorporates welded construction, a Bendix PTIH-10-6P connector, and optional hermetic sealing capability for enhanced durability.
Key Features:
- Pancake Load Cell Design: Low-profile construction optimized for industrial force measurement applications.
- 500 lbf Capacity: Engineered for precise tension measurement up to 500 pounds force.
- Strain Gauge Technology: Utilizes bonded foil strain gauge sensing for stable and accurate readings.
- Tension Measurement Operation: Configured specifically for tension force sensing applications.
- Double Diaphragm Structure: Reduces side-loading and off-center measurement errors.
- High Measurement Accuracy: Provides 0.1% accuracy for precise industrial monitoring.
- Non-Amplified Output: Delivers direct 3 mV/V sensor output for instrumentation integration.
- Welded Industrial Construction: Durable design suitable for demanding operating environments.
- Wide Temperature Range: Operates reliably from -54°C to 121°C.
- Bendix Electrical Connector: Equipped with PTIH-10-6P connector for secure electrical connection.
- Horizontal Electrical Exit: Simplifies installation and cable routing within machinery systems.
- Industrial Process Compatibility: Suitable for tube mills, extrusion systems, weighing, and testing equipment.
The 060-0571-07 delivers the reliability and precision required for industrial force measurement and tension sensing applications.
