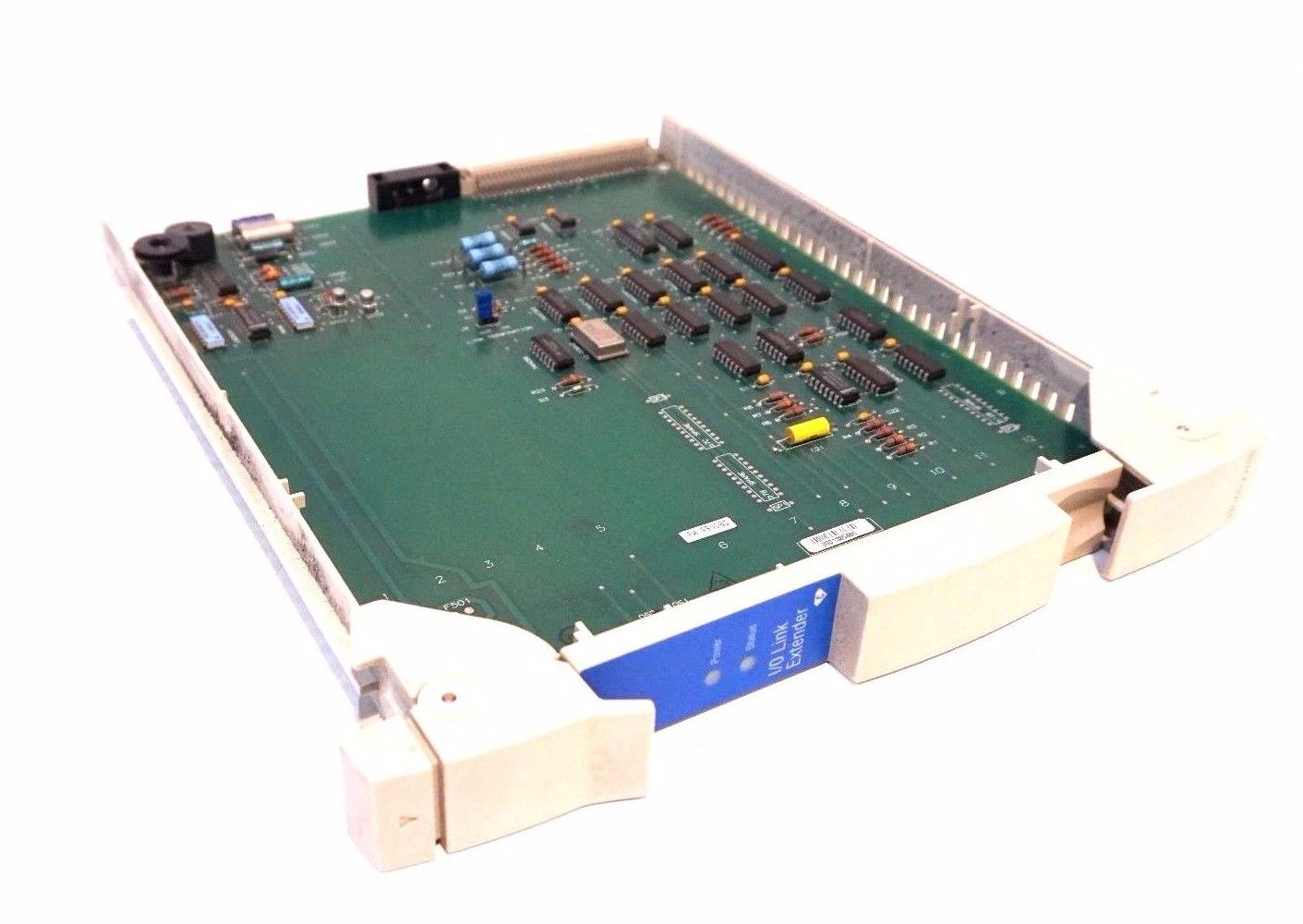

Honeywell 51304419-150 PM APM HPM Fiber Optic I/O Link Extender Module
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 51304419-150
Description
The Honeywell 51304419-150 is an I/O Link Extender module designed to extend PM, APM, and HPM I/O Link interfaces through fiber-optic connections when controller and remote I/O enclosures exceed standard cable segment limits. It supports distributed industrial control configurations requiring communication between local controller hardware and remotely installed I/O card files.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | PLCs/Machine Control |
| Part Number | 51304419-150 |
| Subcategory | VDC Logic I/O Modules |
| Product Type | I/O Link Extender |
| Configuration | Conformal Coated (CC) |
| Compatible Systems | PM, APM, HPM |
| Primary Function | I/O Link Interface Extension |
| Extension Medium | Fiber-Optic Cable |
| Supported Links | Link A and Link B |
| Application | Remote I/O Card File Connection |
| Link Termination | Required at Both Ends |
| Termination Control | J2 LINK TERMINATION Jumper |
| J2 Jumper Positions | IN / OUT |
| Available Extension Distances | 1.3 km Short Distance / 8 km Long Distance |
| Weight | 1.25 lbs |
Information About 51304419-150
The 51304419-150 is a Honeywell I/O Link Extender designed for PM, APM, and HPM control system architectures. Its conformal-coated construction is intended for industrial installations where controller I/O must be distributed between separate enclosures or cabinets. The module works with fiber-optic I/O Link extension hardware and supports configurations where both Link A and Link B must be properly terminated at each end of the communication path. At the remote IOP card file, its J2 LINK TERMINATION jumper provides selectable IN and OUT positions for configuring I/O Link termination according to system requirements.
Key Features:
- I/O Link Extension: Extends the controller I/O Link beyond the allowable segment length of a standard I/O Link Interface cable.
- PM/APM/HPM Compatibility: Designed for use with Honeywell PM, APM, and HPM I/O Link architectures.
- Fiber-Optic Connectivity: Supports fiber-optic cable infrastructure for communication between separated control enclosures.
- Remote I/O Support: Enables I/O card files to be installed in an enclosure located away from the associated controller.
- Dual-Link Architecture: Accommodates Link A and Link B paths used by the I/O Link Interface.
- Selectable Termination: J2 LINK TERMINATION jumper provides IN and OUT settings for remote link termination.
- Distance Extension Options: I/O Link Extender systems are available for approximately 1.3 km short-distance or 8 km long-distance links.
- Conformal-Coated Construction: CC configuration provides additional circuit-board protection for industrial operating environments.
The 51304419-150 delivers the reliability and precision required for extending distributed I/O communications between Honeywell controllers and remote I/O card files.
