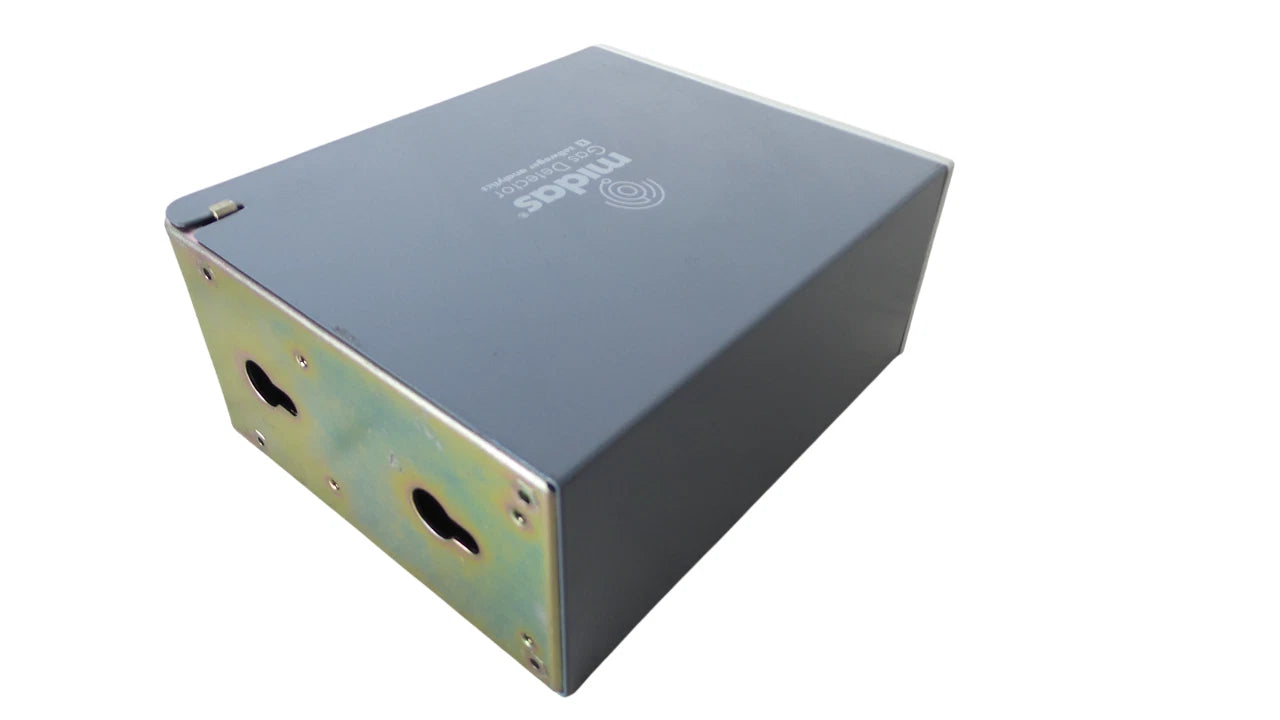

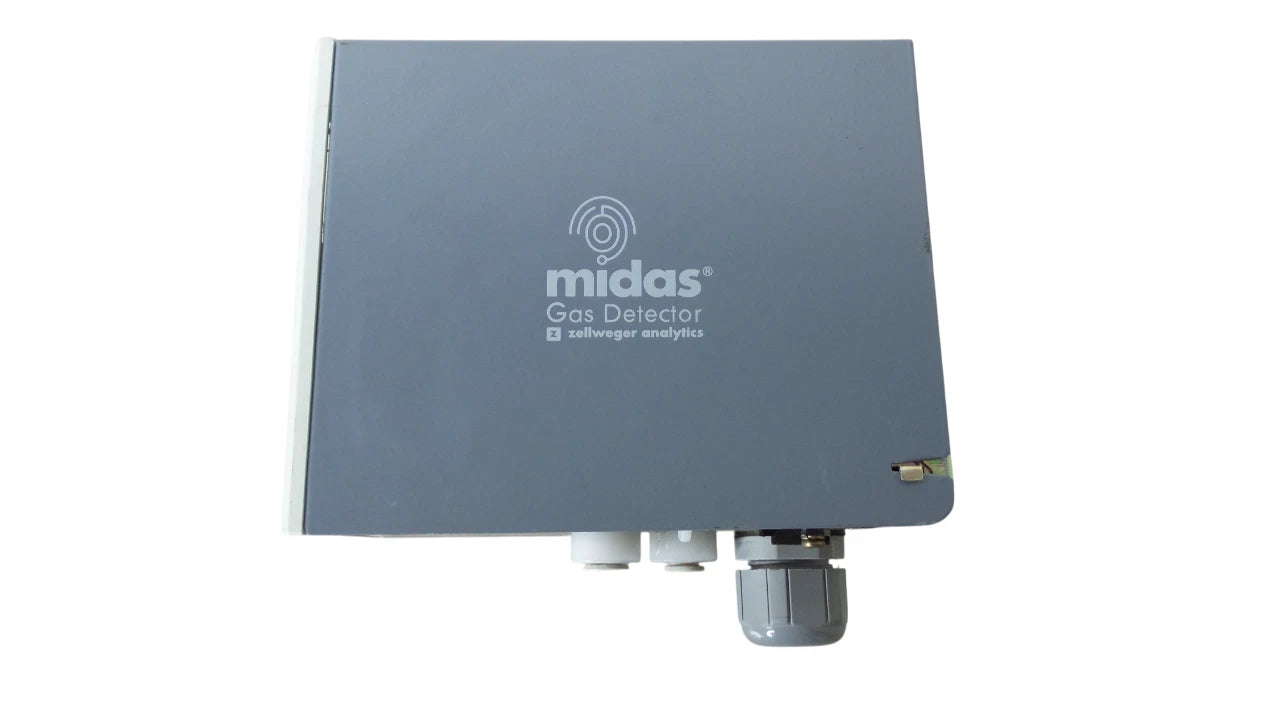

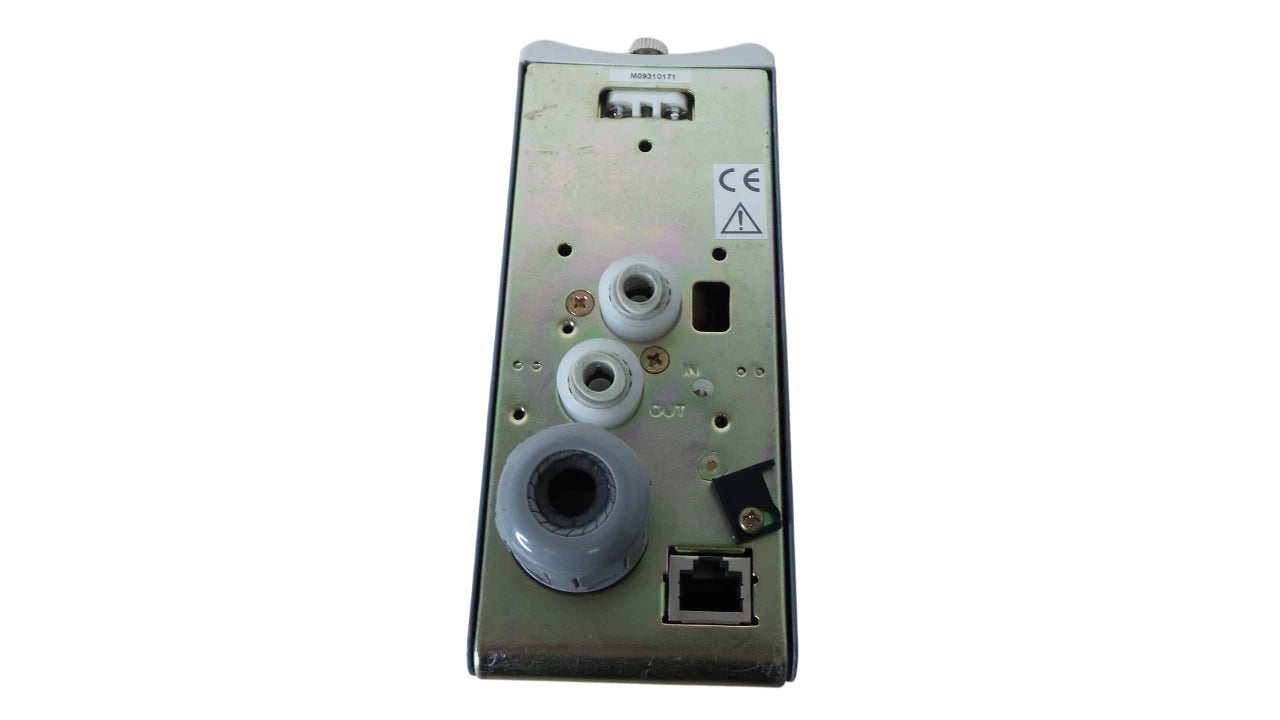

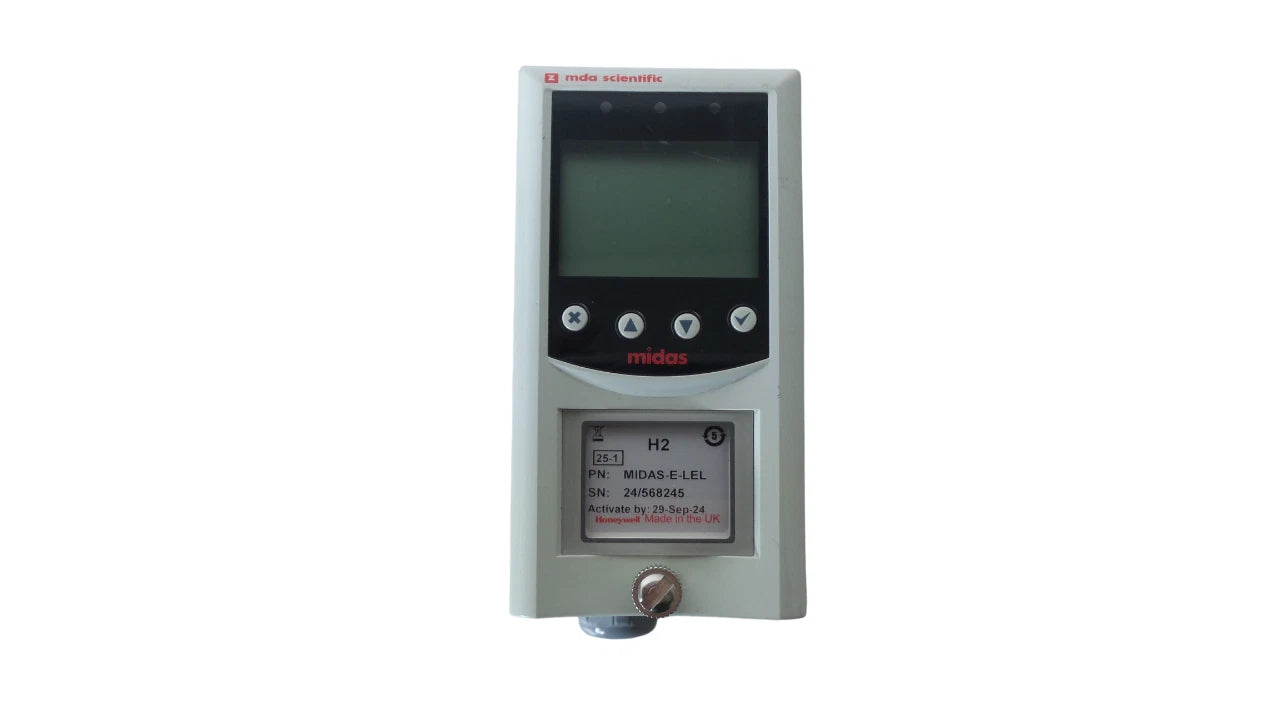

Honeywell Analytics MIDAS-E-LEL Gas Sensor Cartridge H2 CH4 LEL Infrared Detection
- Regular price
- $352.00
- Sale price
- $352.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MIDAS-E-LEL
Description
The Honeywell Analytics MIDAS-E-LEL is a gas detection sensor cartridge designed for monitoring combustible gases such as hydrogen (H2) and methane (CH4). It utilizes infrared non-dispersive sensing technology to provide accurate detection across configurable LEL ranges. This unit is used in industrial safety systems to detect gas presence and support hazard prevention.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell Analytics |
| Category | Gas & Specialty Sensors |
| Part Number | MIDAS-E-LEL |
| Subcategory | Gas Sensor Cartridge |
| Gases Detected | Hydrogen (H2), Methane (CH4) |
| Measurement Range | 3.0–100% or 6.5–100% LEL |
| Sensing Technology | Infrared non-dispersive |
| Supply Voltage | 24 VDC (-15% to +10%) |
| Current Consumption | 208 mA |
| Signal Output | 4–20 mA @ 250 Ω |
| Relay Outputs | 3 alarm relays (1A @ 30 VDC / 0.5A @ 125 VAC) |
| Repeatability | ±5% of measured value |
| Linearity | ±2% of measured value |
| Response Time | 2–30 seconds (depending on tube length) |
| Warm-Up Time | <10 minutes |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 15% to 90% RH non-condensing |
| Enclosure Rating | NEMA 1 |
| Dimensions | 5.9 in x 12.6 in x 6 in |
| Approvals | ETL, CE |
| Weight | 1.8 lb (0.8 kg) |
Information About MIDAS-E-LEL
The MIDAS-E-LEL is part of Honeywell Analytics’ MIDAS gas detection series, developed for continuous monitoring of hazardous gases in industrial environments. It features a cartridge-based design that allows easy replacement and maintenance while maintaining system integrity. The sensor is compatible with MIDAS gas monitoring systems and supports integration with building management and safety control systems through analog and relay outputs. It is commonly used in facilities handling combustible gases where continuous monitoring and early detection are critical for operational safety.
Key Features:
- Infrared sensing technology: Uses non-dispersive IR detection for accurate gas measurement.
- Multi-gas capability: Detects hydrogen (H2) and methane (CH4) within LEL ranges.
- Configurable measurement range: Supports 3.0–100% or 6.5–100% LEL options.
- Cartridge-based design: Enables quick replacement and reduced maintenance downtime.
- 4–20 mA output: Allows integration with external monitoring and control systems.
- Relay alarm outputs: Includes three configurable alarm relays for safety alerts.
- Modbus/TCP communication: Supports digital integration with industrial networks.
- Local display indication: Provides real-time gas concentration and peak level readings.
The MIDAS-E-LEL delivers the reliability and precision required for combustible gas detection and industrial safety monitoring applications.
