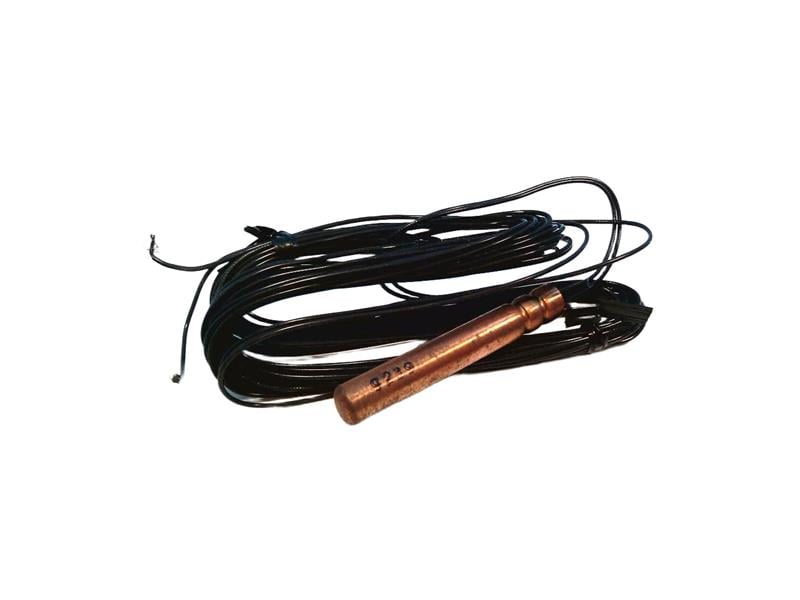

Honeywell C7170A-1010 PT3000 Platinum PTC Temperature Sensor
- Regular price
- $75.00
- Sale price
- $75.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C7170A-1010
Description
The Honeywell C7170A-1010 is a platinum PTC electronic temperature sensor designed for temperature measurement in compatible HVAC control systems. It supports immersion, strap-on, and duct-mounting applications and operates over a -40°F to 250°F temperature range without requiring field calibration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | C7170A-1010 |
| Subcategory | Temperature Sensors |
| Product Type | Electronic Temperature Sensor |
| Sensor Type | PT3000 |
| Sensing Element | Platinum PTC |
| Resistance | 3484 Ohms at 77°F |
| Temperature Range | -40°F to 250°F |
| Mounting Applications | Immersion, Strap-On, Duct |
| Insertion Length | 3 in |
| Connection Type | Pigtail Leads |
| Calibration | No Field Calibration Required |
| Compatible Controls | R7380J/L, W7100, W7600, W7620 |
| Weight | 0.20 lbs |
Information About C7170A-1010
The C7170A-1010 is a Honeywell PT3000 platinum PTC temperature sensor designed as a primary electronic sensing element for compatible HVAC controllers. It provides a nominal resistance of 3484 ohms at 77°F and can be installed for immersion, strap-on, or duct temperature measurement. The sensor is compatible with specified Honeywell R7380J/L, W7100, W7600, and W7620 control equipment and can be located remotely from the controller using appropriate field wiring. Its pigtail leads, 3-inch insertion length, and calibration-free design support straightforward integration into building and HVAC temperature-control applications.
Key Features:
- Platinum PTC Sensor: Uses a platinum positive-temperature-coefficient sensing element for electronic temperature measurement.
- PT3000 Sensor Type: Provides a specified resistance of 3484 ohms at 77°F.
- Wide Temperature Range: Measures temperatures from -40°F to 250°F.
- Multiple Mounting Methods: Suitable for immersion, strap-on, and duct-mounting applications.
- No Field Calibration: Designed to operate without user adjustment or calibration.
- Remote Sensor Installation: Supports installation at extended distances from compatible control equipment.
- Pigtail Leads: Includes lead wires for connection to the associated temperature-control circuit.
- 3-Inch Insertion Length: Provides a 3-inch sensing insertion length for applicable installations.
The C7170A-1010 delivers the reliability and precision required for temperature sensing in compatible HVAC monitoring and control systems.
Description
The Honeywell C7170A-1010 is a platinum PTC electronic temperature sensor designed for temperature measurement in compatible HVAC control systems. It supports immersion, strap-on, and duct-mounting applications and operates over a -40°F to 250°F temperature range without requiring field calibration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | C7170A-1010 |
| Subcategory | Temperature Sensors |
| Product Type | Electronic Temperature Sensor |
| Sensor Type | PT3000 |
| Sensing Element | Platinum PTC |
| Resistance | 3484 Ohms at 77°F |
| Temperature Range | -40°F to 250°F |
| Mounting Applications | Immersion, Strap-On, Duct |
| Insertion Length | 3 in |
| Connection Type | Pigtail Leads |
| Calibration | No Field Calibration Required |
| Compatible Controls | R7380J/L, W7100, W7600, W7620 |
| Weight | 0.20 lbs |
Information About C7170A-1010
The C7170A-1010 is a Honeywell PT3000 platinum PTC temperature sensor designed as a primary electronic sensing element for compatible HVAC controllers. It provides a nominal resistance of 3484 ohms at 77°F and can be installed for immersion, strap-on, or duct temperature measurement. The sensor is compatible with specified Honeywell R7380J/L, W7100, W7600, and W7620 control equipment and can be located remotely from the controller using appropriate field wiring. Its pigtail leads, 3-inch insertion length, and calibration-free design support straightforward integration into building and HVAC temperature-control applications.
Key Features:
- Platinum PTC Sensor: Uses a platinum positive-temperature-coefficient sensing element for electronic temperature measurement.
- PT3000 Sensor Type: Provides a specified resistance of 3484 ohms at 77°F.
- Wide Temperature Range: Measures temperatures from -40°F to 250°F.
- Multiple Mounting Methods: Suitable for immersion, strap-on, and duct-mounting applications.
- No Field Calibration: Designed to operate without user adjustment or calibration.
- Remote Sensor Installation: Supports installation at extended distances from compatible control equipment.
- Pigtail Leads: Includes lead wires for connection to the associated temperature-control circuit.
- 3-Inch Insertion Length: Provides a 3-inch sensing insertion length for applicable installations.
The C7170A-1010 delivers the reliability and precision required for temperature sensing in compatible HVAC monitoring and control systems.
