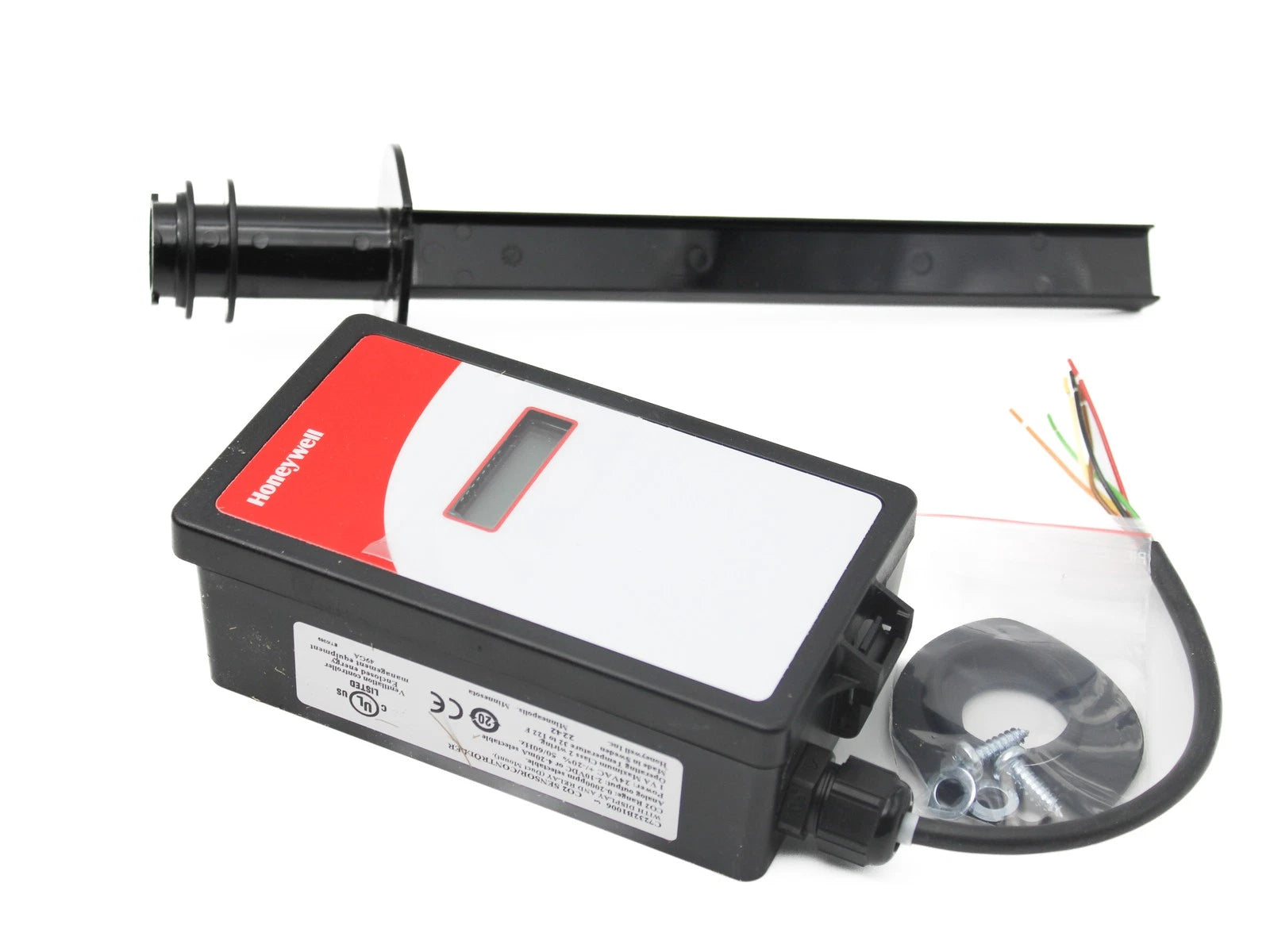

Honeywell C7232B1006 Duct Mount CO₂ Sensor with LCD Display
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C7232B1006
Description
The Honeywell C7232B1006 is a duct-mounted carbon dioxide sensor and controller designed to measure CO₂ concentration for HVAC ventilation control. It uses non-dispersive infrared (NDIR) sensing and provides an LCD display, analog output, and SPST relay output for demand-controlled ventilation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC & Building Automation |
| Part Number | C7232B1006 |
| Subcategory | Air Quality Sensors |
| Product Type | Carbon Dioxide Sensor and Controller |
| Sensor Type | Carbon Dioxide (CO₂) |
| Mounting | Duct Mount |
| Display | 4-Digit LCD |
| Response Time | 1 minute |
| Analog Output | 0/2–10 VDC or 0/4–20 mA |
| Relay Output | SPST |
| Relay Contact Rating | 1 A at 50 VAC / 24 VDC |
| Power Supply | 24 VAC/DC ±20%, 50/60 Hz |
| Maximum Power Consumption | 3 W |
| Insertion Length | 8 in. |
| Calibration | Automatic Background Calibration (ABC) |
| Weight | 0.23 kg |
Information About C7232B1006
The C7232B1006 is part of the Honeywell C7232 series of standalone carbon dioxide sensors and controllers. This configuration is designed for duct installation and includes an LCD for displaying measured CO₂ concentration and status information. The sensor measures CO₂ over a 0–2,000 ppm range using NDIR technology, with an adjustable analog output and SPST relay for connection to HVAC control equipment. Automatic Background Calibration (ABC) helps reduce the need for routine zero-drift adjustment.
Key Features:
- CO₂ Measurement: Measures carbon dioxide concentration in HVAC ductwork for ventilation control.
- NDIR Technology: Uses non-dispersive infrared sensing for CO₂ detection.
- Duct Mounting: Designed for direct installation in air-handling ductwork.
- LCD Display: Provides local CO₂ concentration and status information.
- Analog Output: Provides selectable voltage or current output corresponding to CO₂ concentration.
- Relay Output: Includes one SPST relay for ventilation control applications.
- Measurement Range: Supports CO₂ measurement from 0 to 2,000 ppm.
- Automatic Calibration: Uses ABC technology to reduce typical zero-drift maintenance requirements.
The C7232B1006 delivers the reliability and precision required for CO₂-based ventilation monitoring and HVAC control.
