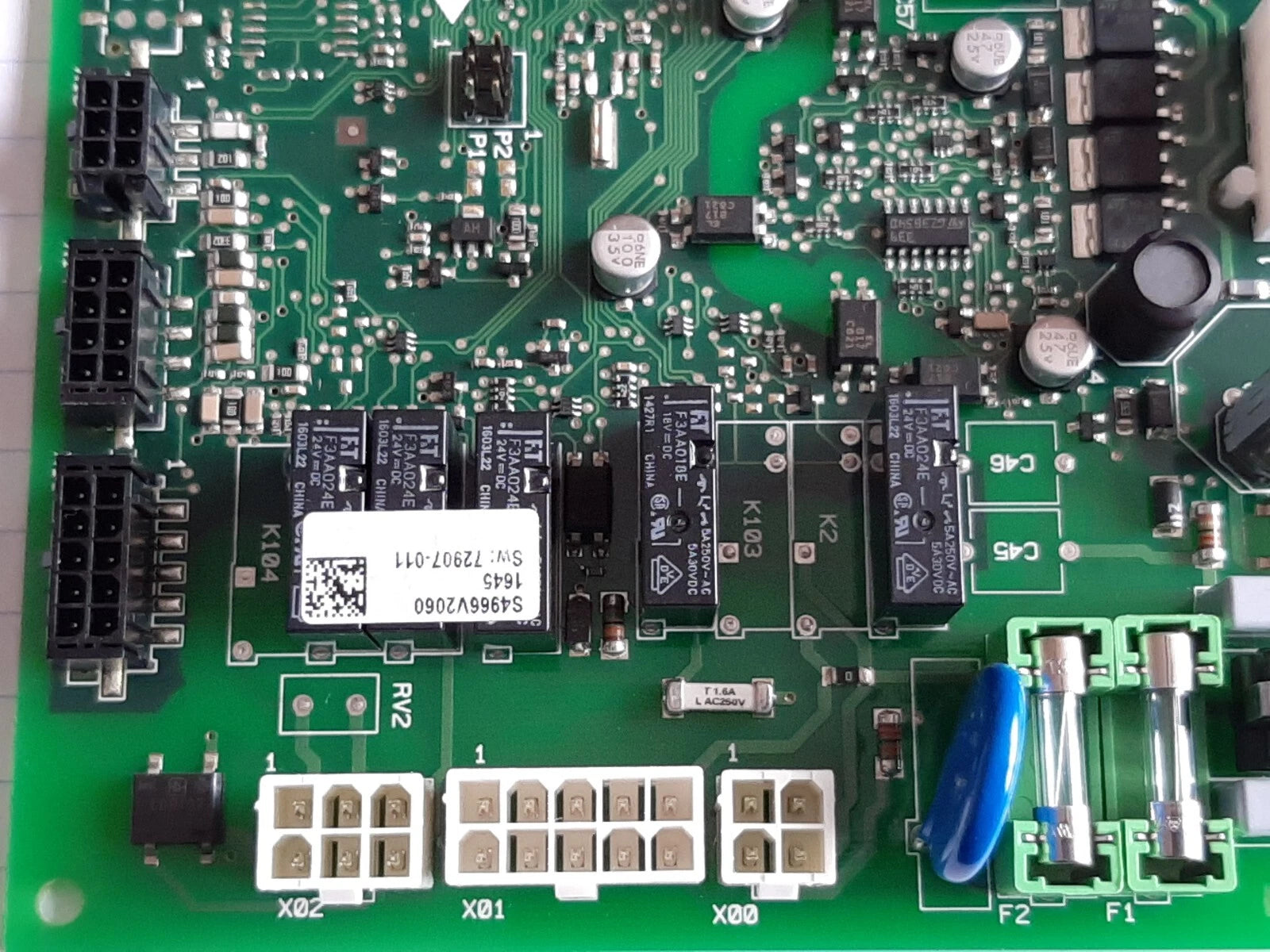

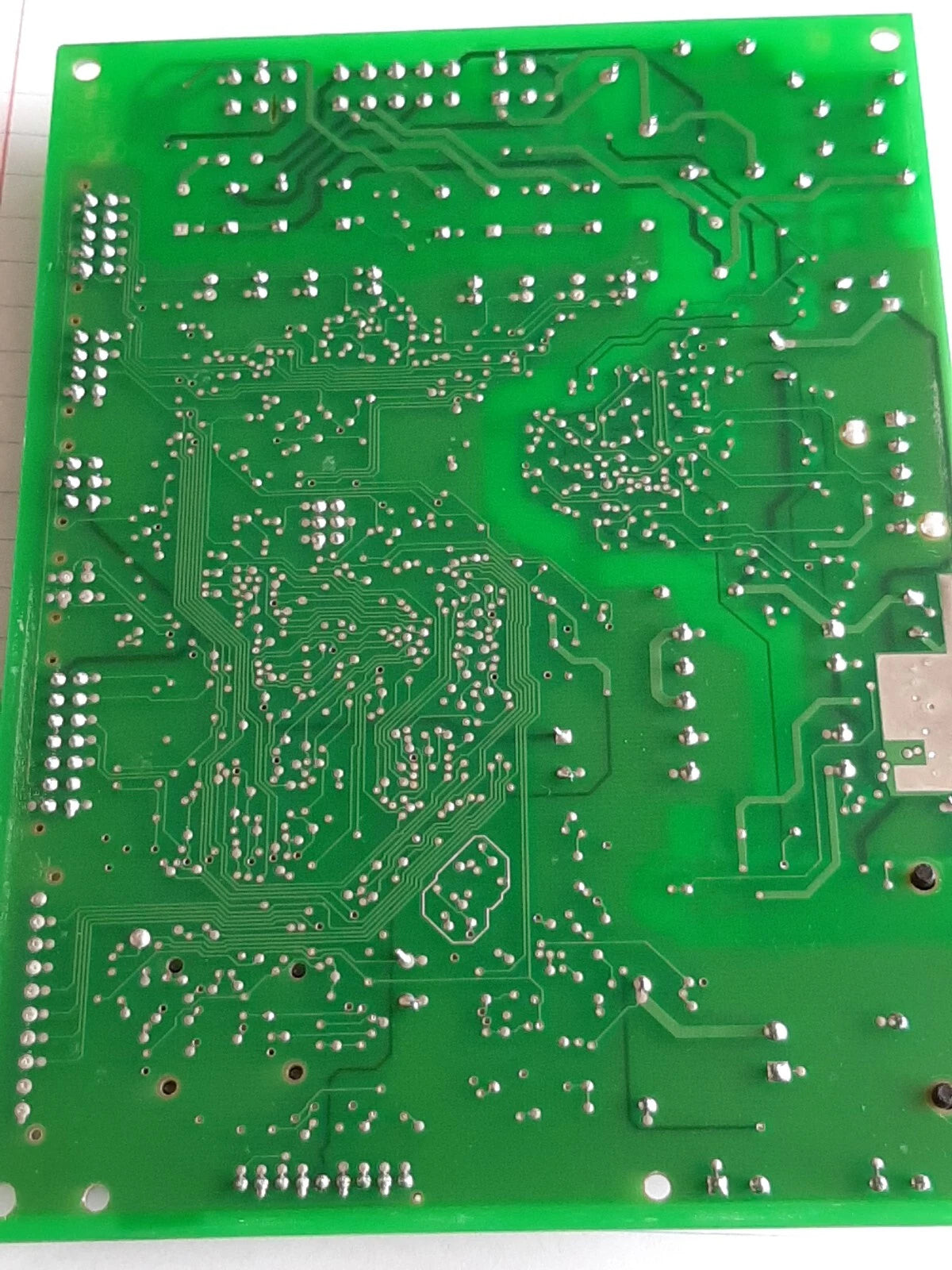

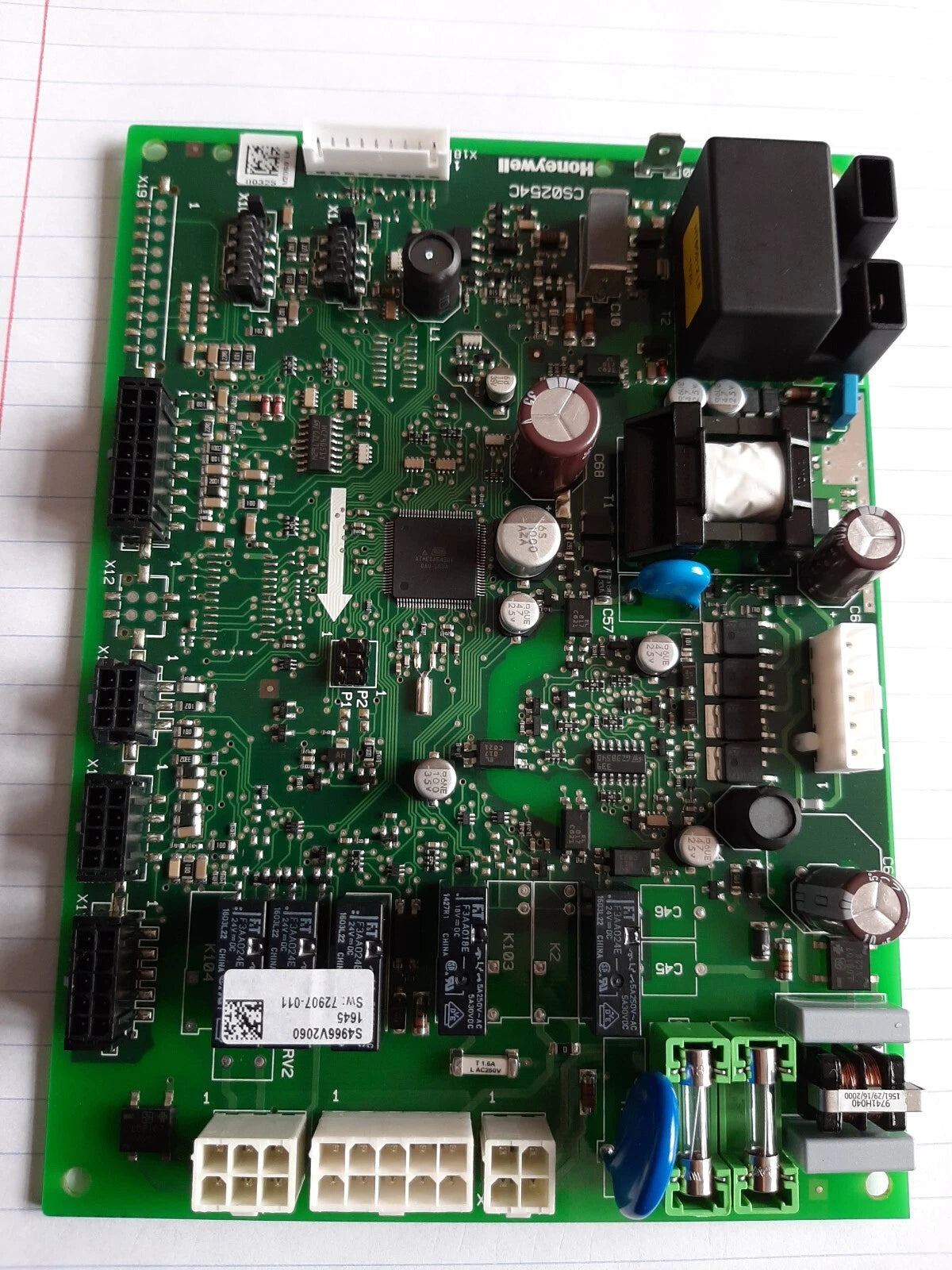

Honeywell CS0254C TriMax Boiler Control Module for Triangle Tube Prestige Boilers
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS0254C
Description
The Honeywell CS0254C is an electronic boiler control module used in Triangle Tube Prestige TriMax heating systems to coordinate burner operation, temperature regulation, ignition functions, and system safety sequences. It is associated with the Triangle Tube PTRKIT205 replacement control assembly used in selected Prestige Solo and Prestige Excellence condensing boilers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | CS0254C |
| Subcategory | Boiler Control Module |
| Product Type | Electronic Boiler Control Module |
| Control Platform | TriMax |
| Associated Triangle Tube Part Number | PTRKIT205 |
| Compatible Product Family | Triangle Tube Prestige |
| Compatible Boiler Models | Prestige Solo 60, 110, and 175; Prestige Excellence |
| Control Application | Condensing Boiler Control |
| Display Compatibility | TriMax Display Module PTRKIT207 |
| Installation Location | Internal Boiler Control Enclosure |
| PTRKIT205 Control Fuse | 5 Ampere |
| Applicable Boiler Serial Prefix | PT |
| Lifecycle Status | Original PTRKIT205 Configuration Obsolete |
| Weight | 1.00 lbs |
Information About CS0254C
The CS0254C is a Honeywell boiler control board associated with the Triangle Tube TriMax control platform and PTRKIT205 service part configuration. It installs inside the boiler control enclosure and interfaces with the TriMax display, temperature sensing circuits, ignition components, circulator controls, and other connected boiler devices. Triangle Tube documentation identifies PTRKIT205 for Prestige Solo 60, Prestige Solo 110, Prestige Solo 175, and Prestige Excellence applications with serial numbers beginning with PT. The original PTRKIT205 control module is now obsolete, with Triangle Tube specifying model-dependent replacement update kits for continued service of affected Prestige boilers.
Key Features:
- TriMax Control Platform: Provides electronic control functions within compatible Triangle Tube Prestige TriMax boiler systems.
- Boiler Operating Control: Coordinates heating demand, burner operation, temperature monitoring, and related boiler operating sequences.
- PTRKIT205 Association: Honeywell CS0254C is identified in replacement-part channels as a control board associated with Triangle Tube PTRKIT205.
- Prestige Solo Compatibility: PTRKIT205 is specified for Prestige Solo 60, 110, and 175 boiler models.
- Prestige Excellence Compatibility: The control module is also documented for compatible Prestige Excellence boiler configurations.
- TriMax Display Integration: Operates within the control enclosure alongside the separate PTRKIT207 TriMax display module.
- Internal Boiler Installation: Designed for installation in the dedicated Prestige control enclosure as part of the boiler electronic control system.
- Legacy Replacement Component: PTRKIT205 is obsolete, with specific updated replacement kits assigned according to the Prestige boiler model.
The CS0254C delivers the reliability and precision required for boiler operating control, ignition sequencing, temperature management, and safety supervision in compatible Prestige heating systems.
