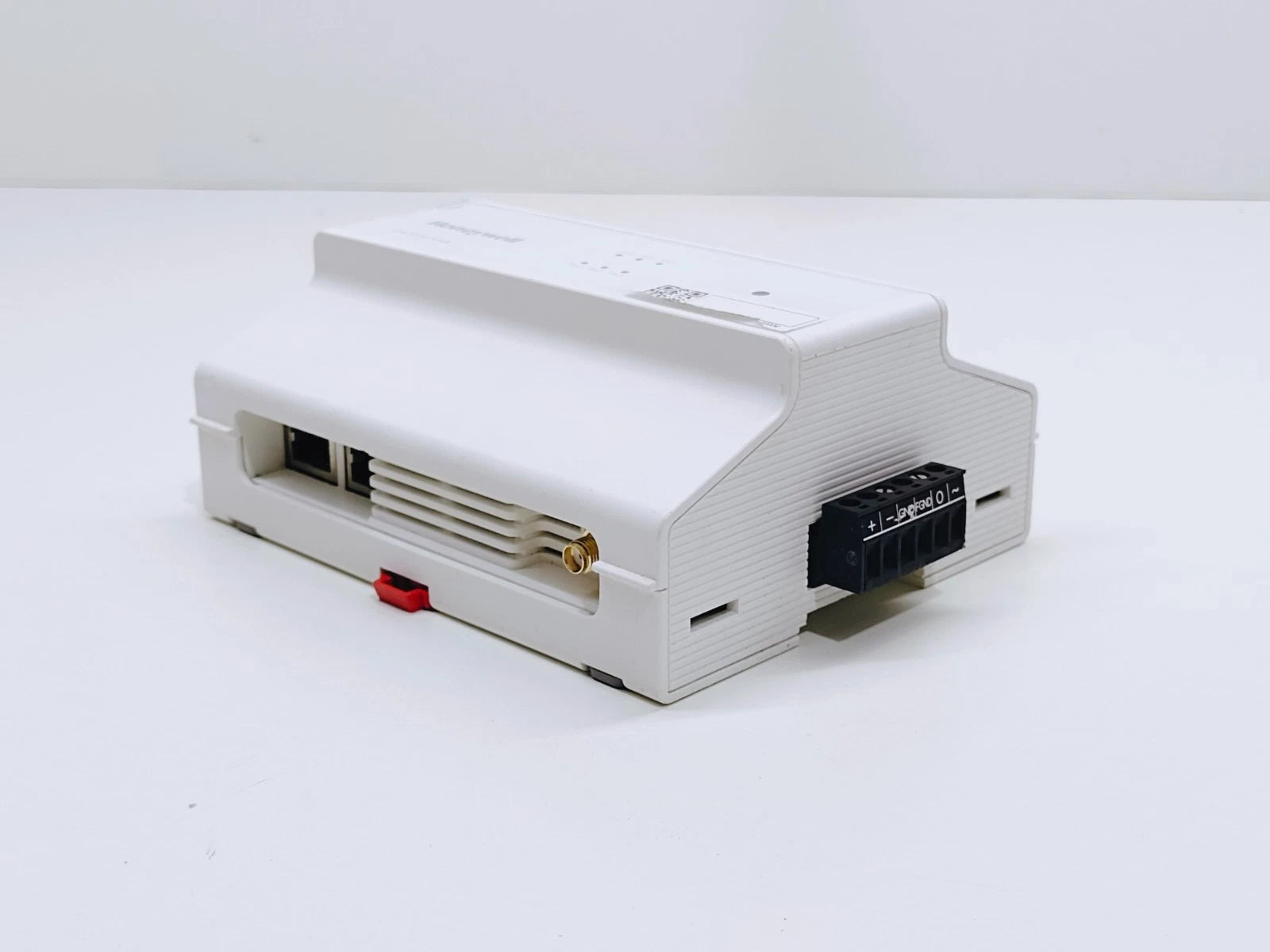

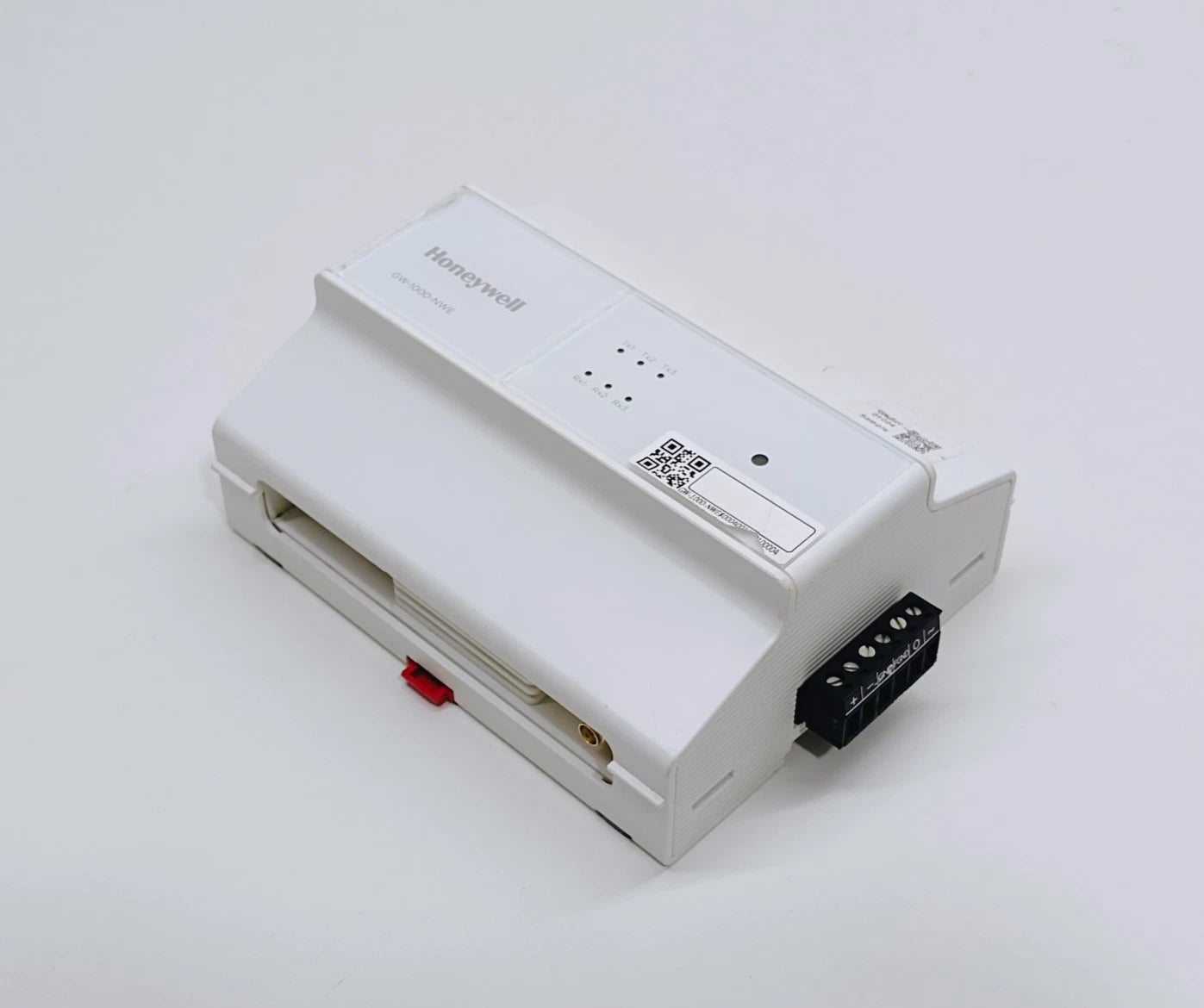

GW-1000-NWE | Honeywell Wireless Building Automation Gateway
- Regular price
- $774.00
- Sale price
- $774.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GW-1000-NWE
Description
The Honeywell GW-1000-NWE is a wireless gateway designed to securely aggregate and transmit building data from field devices to a cloud-based supervisory platform. It integrates thermostats, sensors, and I/O devices using multiple wired and wireless interfaces while ensuring reliable connectivity and remote management. This gateway is optimized for small and medium building automation applications requiring secure monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Building Automation Gateways |
| Part Number | GW-1000-NWE |
| Subcategory | Wireless IoT Gateways |
| Operating Voltage (AC) | 19 to 29 Vac (50/60 Hz) |
| Operating Voltage (DC) | 19 to 29 Vdc |
| Overvoltage Protection | Protected against voltages up to 40 Vdc |
| Power Consumption (24 Vac) | Max. 35 VA |
| Power Consumption (24 Vdc) | Max. 15 W |
| Current Consumption (24 Vac) | 1430 mA |
| Current Consumption (24 Vdc) | 620 mA |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -28.9°C to +70°C (-20°F to 158°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Ingress Protection | IP20 |
| MTBF | Approx. 11.5 years |
| Mounting Options | DIN rail, wall mount, panel mount |
| Weight | Approx. 0.45 kg |
Information About GW-1000-NWE
The GW-1000-NWE is part of Honeywell’s building connectivity solutions, designed to interface field-level devices with the Small and Medium Building Administrator Supervisor Dashboard. It supports integration through Ethernet, Wi-Fi, and Bluetooth hardware interfaces, enabling flexible deployment across modern building infrastructures. The gateway communicates securely with cloud services and building devices using industry-standard protocols and encrypted connections. Designed for North American conformance, it supports DIN rail or wall mounting and is engineered for continuous operation in commercial and light-industrial environments.
Key Features:
- Cloud Integration Platform: Integrated with the Small and Medium Building Administrator Supervisor Dashboard built on Honeywell Forge
- Mobile Configuration Support: Configurable using the Honeywell Connect Mobile application
- Secure BACnet Communication: Supports secured BACnet connectivity for thermostats and Smart I/O devices
- Multi-Interface Connectivity: Provides Ethernet, Wi-Fi, and Bluetooth hardware interfaces for flexible field integration

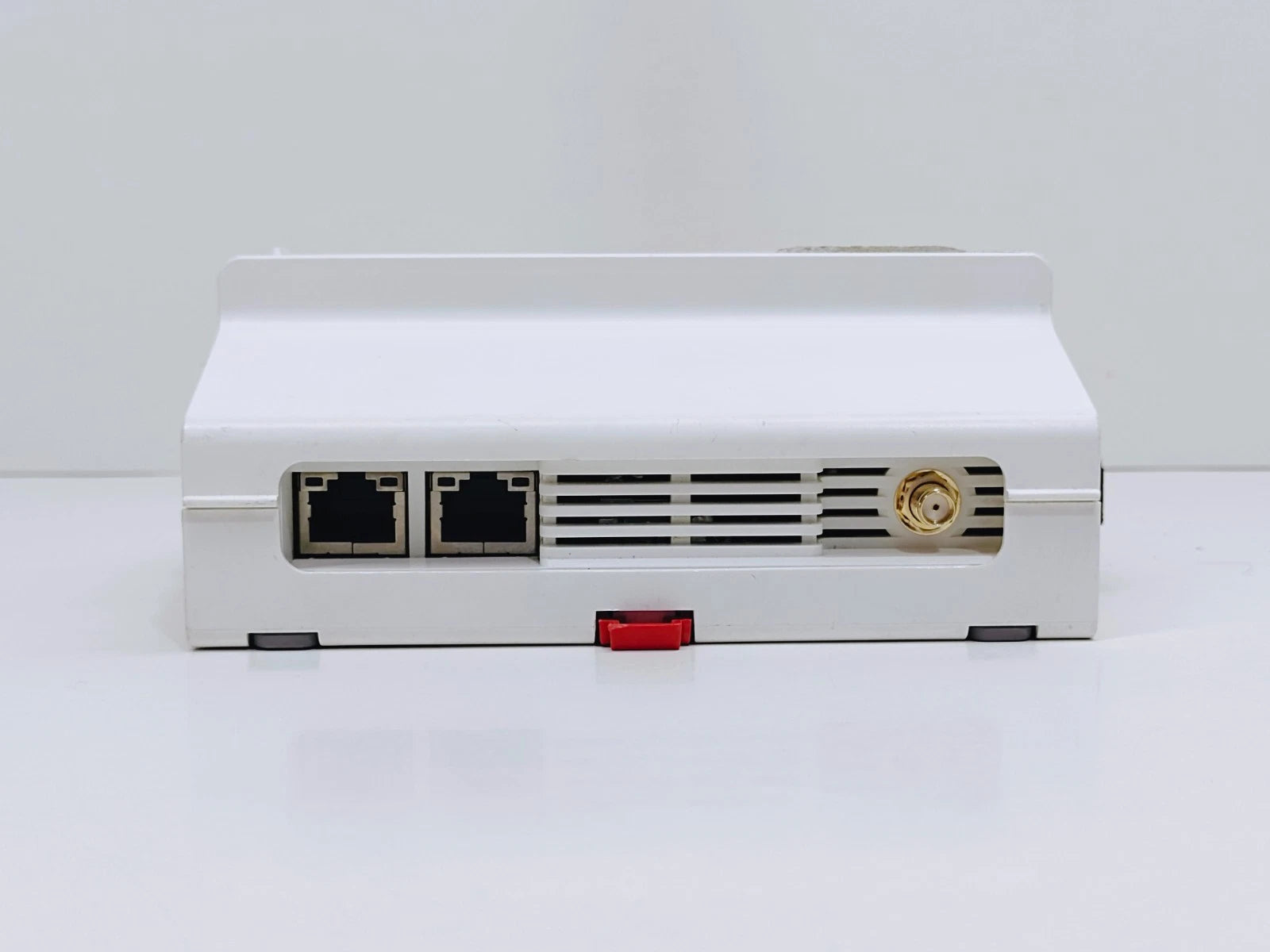

- Dual Ethernet Ports: Two Ethernet ports with integrated status LEDs for network monitoring
- Wireless Access Point Mode: Supports Wi-Fi Access Point mode for local device connectivity
- Over-the-Air Updates: Enables remote firmware upgrades without physical access
- Real-Time Clock Backup: Built-in RTC with up to 72 hours retention using a gold capacitor
- Remote Diagnostics Capability: Supports system diagnostics and troubleshooting over the network
- External Antenna Design: External antennas for improved Wi-Fi and Bluetooth signal performance

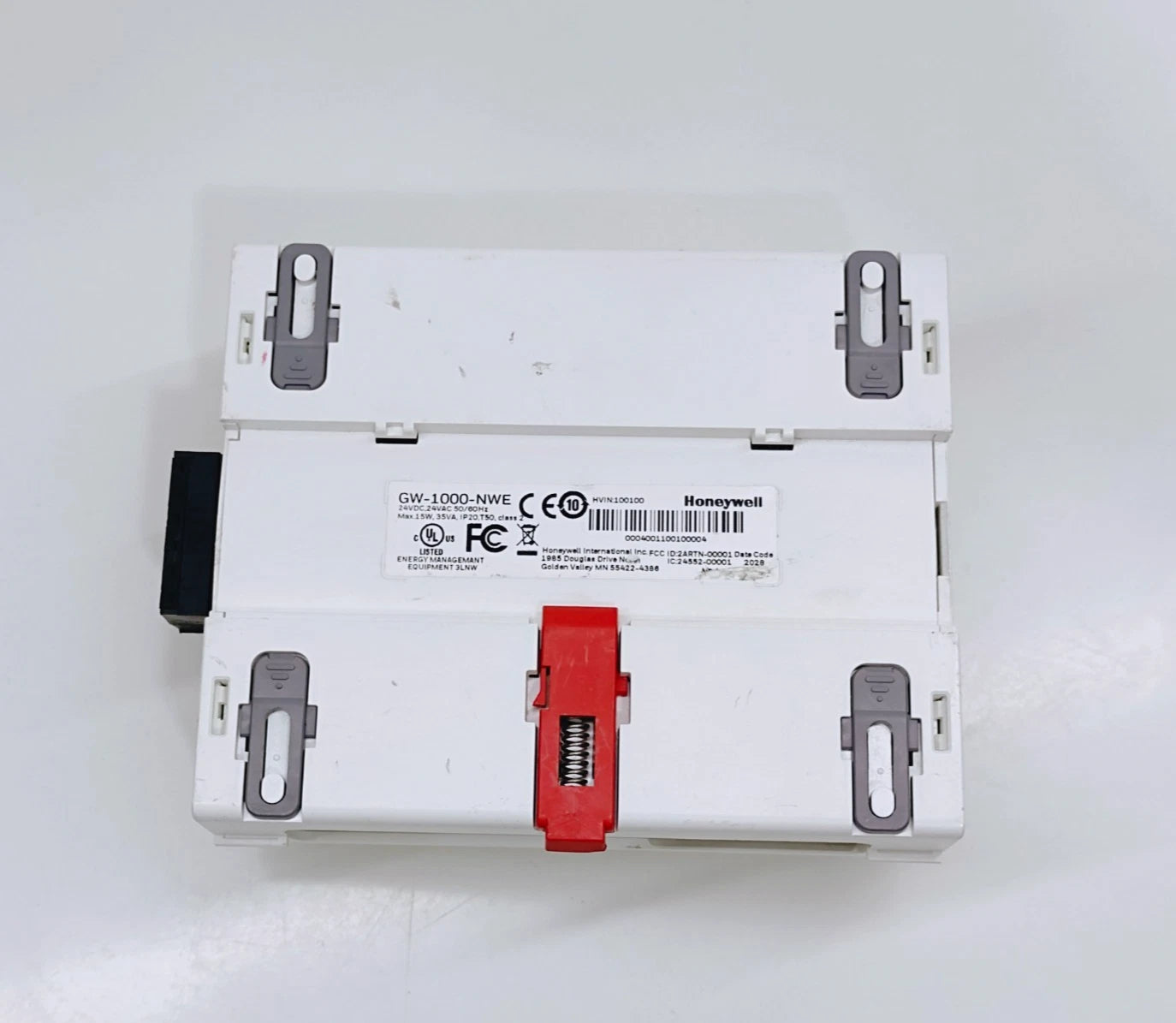

- Industrial Mounting Options: Supports DIN rail mounting as well as wall or panel mounting
The GW-1000-NWE delivers the reliability and connectivity required for secure building automation data aggregation and cloud-based supervision.
