Honeywell HW-TG7FS-V CLSS 5G LTE-M Commercial Fire Alarm Communicator
- Regular price
- $642.00
- Sale price
- $642.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HW-TG7FS-V
Description
The Honeywell HW-TG7FS-V is a CLSS-enabled commercial fire alarm communicator designed to transmit alarm signals from compatible fire alarm control panels over the Verizon LTE-M cellular network. It combines cellular communication with Honeywell Connected Life Safety Services connectivity and can operate as a sole communication path or alongside an existing landline connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | HW-TG7FS-V |
| Subcategory | Fire Alarm Communicators |
| Product Series | HW-TG7FS Series |
| Product Type | Commercial Fire Alarm Communicator |
| Cellular Technology | 5G/LTE-M |
| Cellular Carrier | Verizon Wireless |
| Cloud Platform | Honeywell Connected Life Safety Services (CLSS) |
| Input Voltage | 12/24 VDC |
| Standby Current | 18 mA at 24 VDC; 40 mA at 12 VDC |
| Transmit Current | 110 mA at 24 VDC; 20 mA at 12 VDC |
| Transmit Power | 200 mW |
| Connectivity | Wired and Wireless |
| Color | Red |
| Dimensions | 7.5 × 11.5 × 3.5 in |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Operating Humidity | Up to 95%, Non-Condensing |
| Weight | 6.5 lb (2.95 kg) |
Information About HW-TG7FS-V

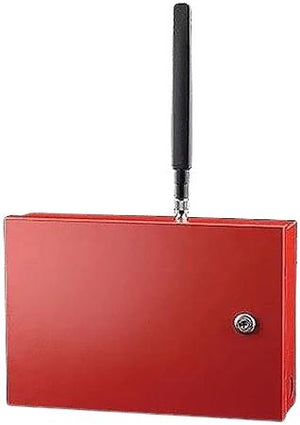

The HW-TG7FS-V is a Honeywell HW-TG7FS Series commercial fire alarm communicator based on the Telguard TG-7FS platform and configured specifically for Verizon Wireless service in the United States. Its LTE-M radio provides cellular alarm transmission while CLSS connectivity supports remote system information and connected life-safety functions. The communicator accepts 12 or 24 VDC power and incorporates telephone-line interfaces, cellular radio hardware, status indication, and an external antenna connection within a red metal enclosure. It is designed to interface with compatible fire alarm control panels and can replace dedicated landline communication when installed and configured according to applicable system requirements.
Key Features:
- 5G/LTE-M Connectivity: Uses LTE-M cellular technology designed for operation within current 5G network infrastructure.
- Verizon Configuration: HW-TG7FS-V is specifically configured for Verizon Wireless cellular service in the United States.
- CLSS Integration: Connects with Honeywell Connected Life Safety Services for supported remote life-safety functions.
- Sole-Path Communication: Can provide the primary cellular communication path between a fire alarm panel and monitoring station.
- 12/24 VDC Power: Supports DC power supplied from compatible fire alarm control equipment or an approved power source.
- Low Standby Demand: Draws 18 mA at 24 VDC or 40 mA at 12 VDC during standby operation.
- Cellular Radio Interface: Provides a 200 mW radio transmitter and external antenna connection for cellular communications.
- Red Metal Enclosure: Supplied in a dedicated red enclosure measuring 7.5 × 11.5 × 3.5 inches.
The HW-TG7FS-V delivers the reliability and precision required for cellular transmission of commercial fire alarm events to remote monitoring facilities.
