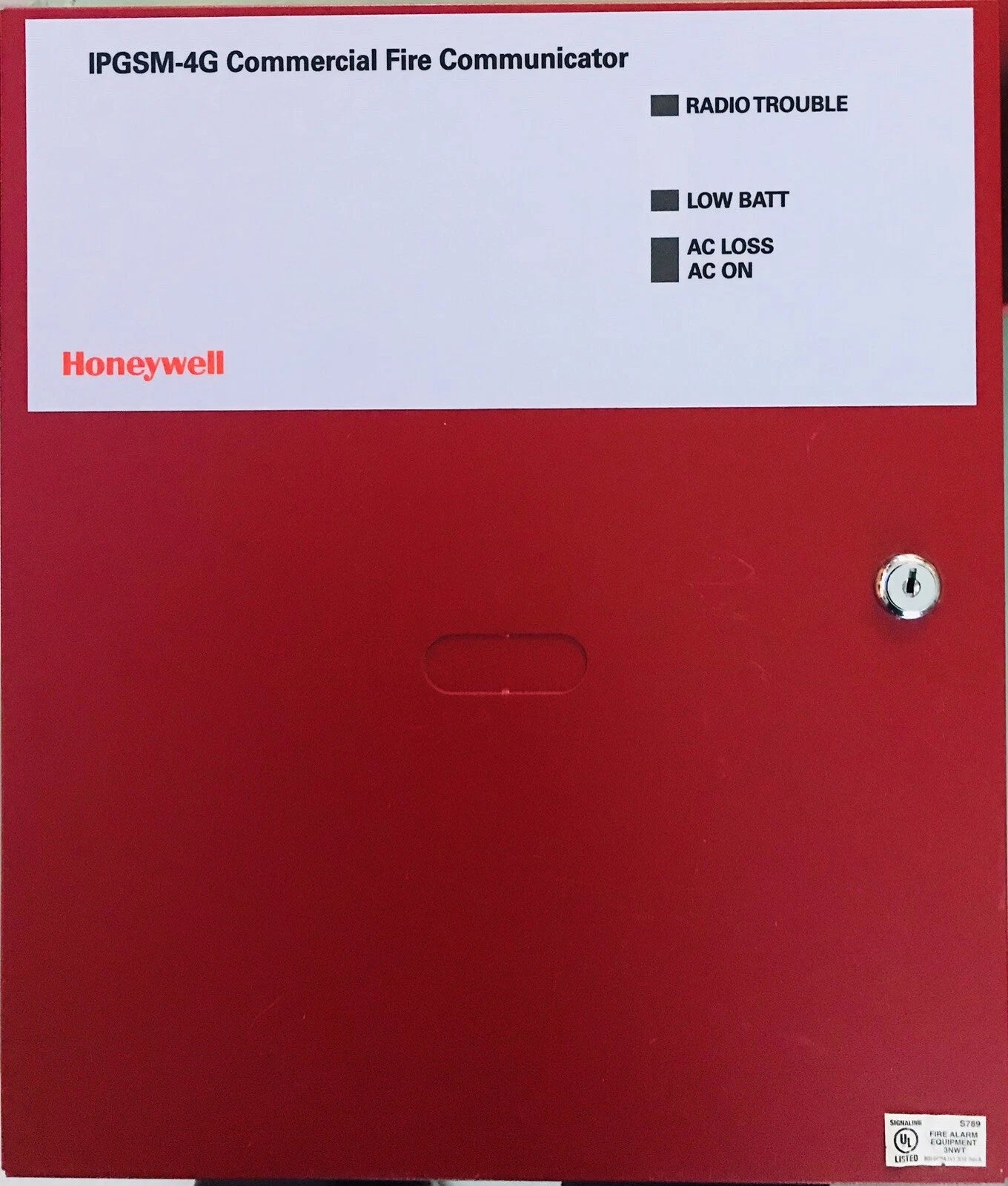

IPGSM-4G | Honeywell IP & GSM Dual Path Alarm Communicator
- Regular price
- $389.00
- Sale price
- $389.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IPGSM-4G
Description
The Honeywell IPGSM-4G IP Internet and GSM Dual Path Communicator is a commercial-grade alarm communication module designed to provide redundant IP and cellular transmission paths for security and fire alarm systems. It supports 120 VAC primary input with 18 VAC secondary output and includes backup battery capability for 24-hour standby operation. Engineered to meet NFPA operational requirements, it ensures reliable alarm signal transmission across diverse environmental conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire & Security Communication |
| Part Number | IPGSM-4G |
| Subcategory | Dual Path Alarm Communicators |
| Communication Paths | IP Internet & GSM Cellular |
| Primary Input Voltage | 120 VAC, 60 Hz, 0.50 A |
| Secondary Output | 18 VAC, 50 VA |
| Backup Battery | 12 V, 7.0 Ah (24-hour standby) |
| Standby Current | 230 mA |
| Transmission Current | 950 mA during transmission |
| Transmission Power | 850 MHz – 1 W; 1900 MHz – 2 W |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Humidity Range | 0% – 93% RH non-condensing |
| Dimensions | 12.75” W x 14.875” H x 3.0” D (32.4 x 37.6 x 7.6 cm) |
| Compliance | NFPA Environmental Requirements |
| Weight | 8.5 lbs (approx.) |
Information About IPGSM-4G
The IPGSM-4G is a dual-path alarm communicator developed by Honeywell to transmit alarm signals via both IP internet and GSM cellular networks for enhanced system redundancy. It is designed for integration with compatible Honeywell fire and intrusion control panels, providing supervised communication to central monitoring stations. The unit operates from a 120 VAC primary source with an 18 VAC, 50 VA secondary output and supports a 12 V, 7.0 Ah backup battery for standby continuity. Built to comply with NFPA environmental standards, it functions within 0–49°C operating temperatures and up to 93% non-condensing humidity, making it suitable for commercial security installations.
Key Features:
- Dual Communication Paths: Supports both IP internet and GSM cellular transmission for redundancy.
- NFPA Compliant Operation: Meets environmental requirements for fire alarm communication systems.
- 120 VAC Primary Input: Operates from standard 120 VAC, 60 Hz power supply.
- 18 VAC Secondary Output: Provides 50 VA transformer output for system support.
- 24-Hour Standby Backup: Compatible with 12 V, 7.0 Ah battery for extended backup operation.
- Low Standby Current: 230 mA standby consumption for efficient power management.
- High Transmission Power: 1 Watt at 850 MHz and 2 Watts at 1900 MHz for reliable cellular communication.
- Commercial Enclosure Design: Compact wall-mountable enclosure for secure installations.
The IPGSM-4G delivers the reliability and precision required for secure, code-compliant alarm signal transmission in commercial fire and security systems.
