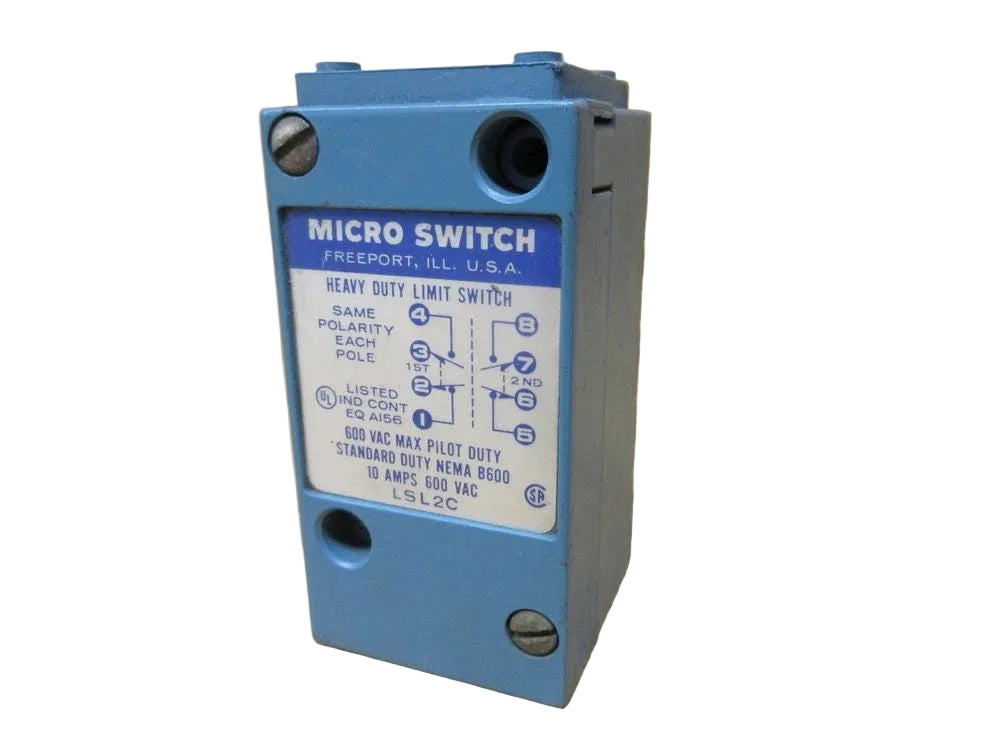

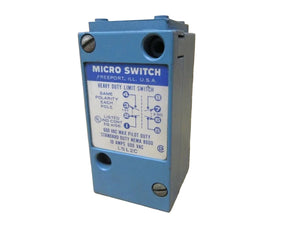

Honeywell LSL2C HDLS Heavy-Duty Side Rotary Limit Switch DPDT 10A 120V Zinc Die-Cast
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LSL2C
Description
The Honeywell LSL2C is a heavy-duty snap-action limit switch from the HDLS Series, designed for mechanical position detection and electrical switching in industrial machinery. Featuring DPDT contacts, a side rotary operating head, and a zinc die-cast housing, it supports equipment position monitoring and automated control applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Honeywell |
|
Category |
Industrial Controls & Switches |
|
Part Number |
LSL2C |
|
Subcategory |
Limit Switches |
|
Series |
MICRO SWITCH HDLS (LS Series) |
|
Product Type |
Heavy-Duty Electromechanical Limit Switch |
|
Contact Configuration |
DPDT (2NO / 2NC), Double Break |
|
Contact Material |
Silver |
|
Switching Action |
Sequential Action |
|
Actuator Type |
Side Rotary, Lever Not Included |
|
Maximum AC Current Rating |
10 A |
|
Listed AC Voltage Rating |
120 VAC |
|
Listed DC Rating |
0.8 A at 115 VDC |
|
Operating Torque |
7 ozf-in Maximum (approximately 0.049 N·m) |
|
Pretravel |
15° Maximum |
|
Differential Travel |
5° Maximum |
|
Overtravel |
48° |
|
Operating Temperature Range |
-12°C to +121°C (10°F to 250°F) |
|
Housing Material |
Zinc Die-Cast |
|
Mounting Type |
Chassis Mount |
|
Mounting Hole Size |
0.203 in |
|
Termination Style |
Plug-In |
|
Weight |
Approximately 2.01 lb |
Information About LSL2C
The LSL2C is part of the Honeywell MICRO SWITCH LS Series, also known as the Heavy-Duty Limit Switch (HDLS) family. Its zinc die-cast housing provides a durable enclosure for the internal snap-action switching mechanism used in industrial environments. The switch incorporates a side rotary operating head and two changeover contact circuits, allowing it to control or monitor two electrical circuits through mechanical actuation. It is intended for use in industrial machinery, conveyor systems, and automated equipment where mechanical position detection is required.
Key Features:
-
Heavy-Duty Limit Switch: Designed for industrial position sensing and mechanical switching applications.
-
HDLS Series Construction: Belongs to Honeywell's LS Series family of industrial limit switches.
-
DPDT Contact Configuration: Provides two changeover contact circuits for control and monitoring.
-
Snap-Action Switching: Uses a mechanical snap-action mechanism for contact state changes.
-
Side Rotary Operating Head: Supports mechanical actuation through a rotary operating mechanism.
-
Zinc Die-Cast Housing: Provides a rigid metal enclosure for industrial installations.
-
10 A Contact Rating: Identified with a 10 A switching rating, subject to the applicable voltage and load classification.
-
120 VAC Application: Listed for 120 VAC switching applications within the specified contact ratings.
-
Mounting Hole Size: Features 0.203-inch mounting holes for compatible installation hardware.
-
Mechanical Position Detection: Detects movement or position through physical actuation.
-
Dual-Circuit Switching: Supports separate electrical control or indication circuits.
-
Industrial Automation Integration: Suitable for machinery interlocks, travel limits, and equipment position monitoring.
The LSL2C delivers the reliability and precision required for industrial position sensing, mechanical limit detection, and machine control switching.
